11-13
11-13) LAMP (OPTIONAL)

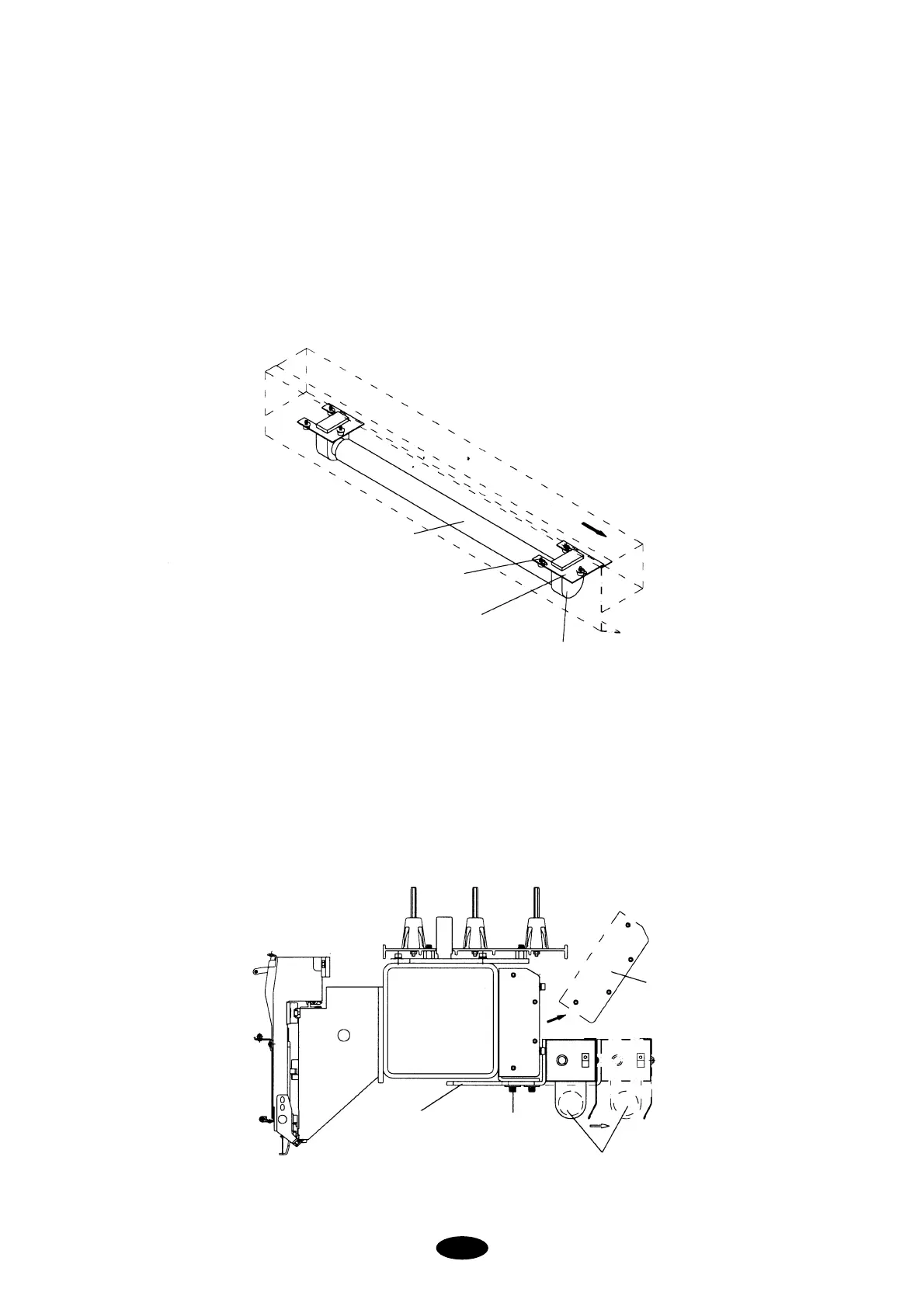

11-13-1) Lamp Socket Adjustment (4-head)
Standard lamp for SWF machines measures 580mm in length. If you have to use 590mm lamp for certain
purposes, adjust the lamp in the following order.
① Unfasten the three screws on the socket.
② Push the lamp socket fully to the right of the shell.
③ Install a new lamp and adjust the socket according to the length of the lamp. Fasten the socket screws.
11-13-2) Disassembling Cable Cover (4-head)
If you have to open the cable cover for machine repair, etc., follow the procedures below.
① Slightly unfasten the six screws underneath the lamp bracket.
② Take out the lamp and open the cover. Do repair or other necessary work.
③ When finished, re-assemble the cover, push the lamp forward and fasten the bracket screws.
[Fig.11-26]
[Fig.11-25]
Lamp
Socket
Lamp bracket
Lamp bracket screw
Lamp bracket
slider
Lamp bracket
slider screw
Lamp
Cable cover
