SunStar SWF/C-UK1502 User Manual

2-6
2-6) FRAME ASSEMBLY
2-6-1) Tubular Frame
1) Unfasten screws on the tubular frame 2/3, install the tubular frame in the groove of the frame connection plate,
and fasten the bolt.
2) Insert the frame into the tubular frame. Use the screws to adjust the space.

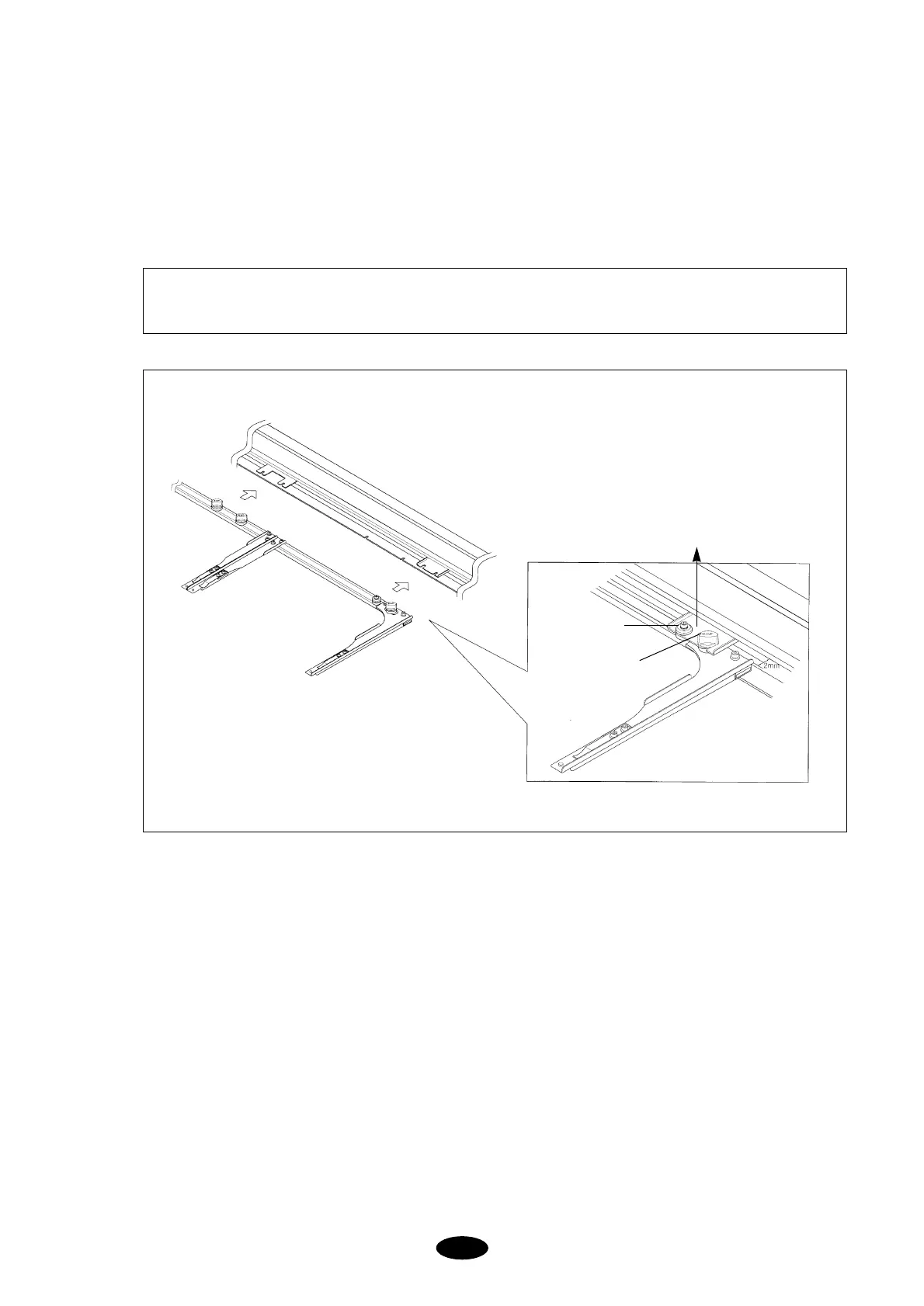

[Fig.2-11]
Tubular frame
Frame connection plate
Fixing hole
Fixing bolt
[CAUTION]
Do not install the tubular frame too close from the X frame. Keep the space at around 2mm.
