SunStar SWF Series User Manual

3-1

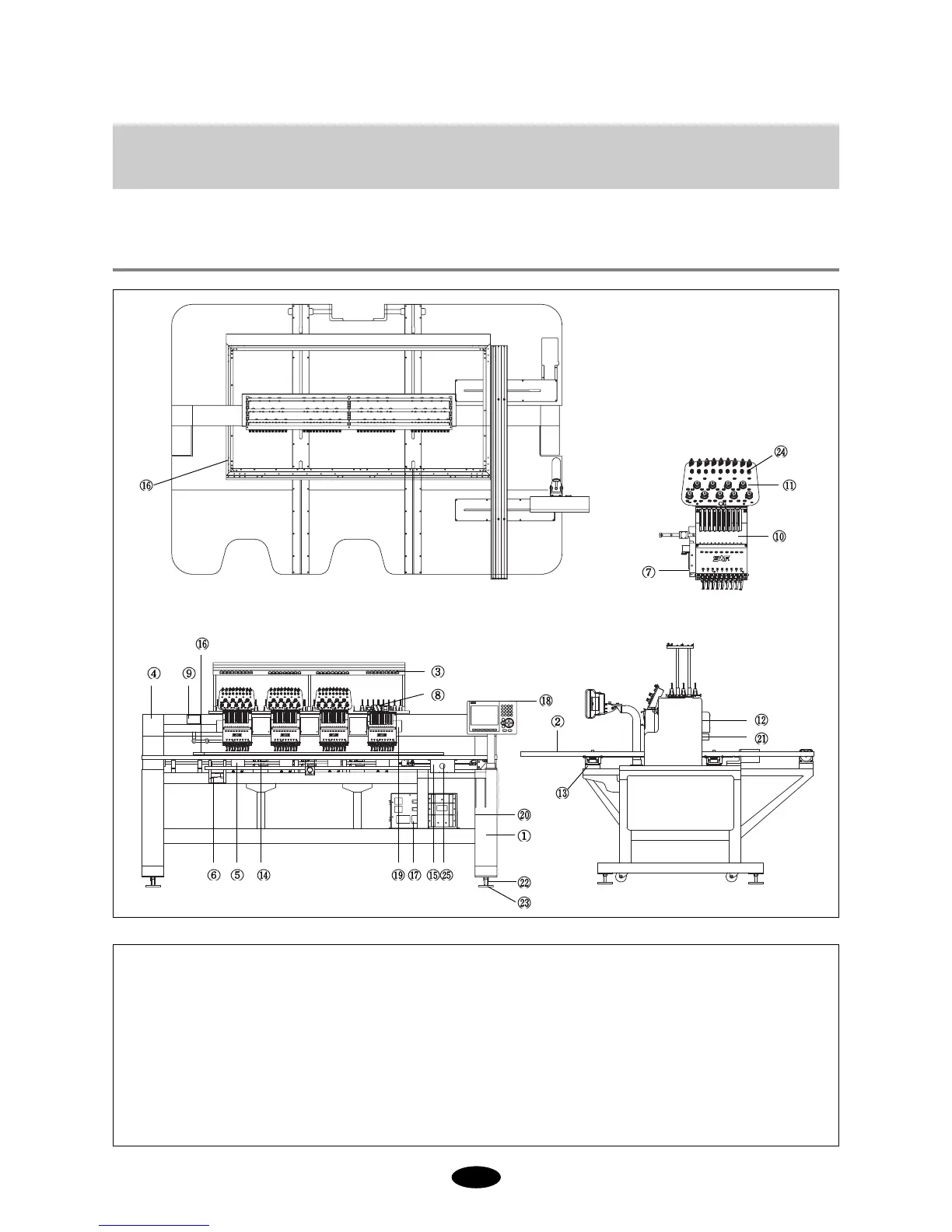

[Fig.3-1]
① Machine Body
② Table
③ Upper thread stand
④ Main shaft drive motor
⑤ Rotary hook base
⑥ Trimming cam box
⑦ Arm
⑧ Color Change
⑨ Upper thread holder
⑩ Head
⑪ Thread tension adjustment board
⑫ Sub-controller
⑬ X-axis driving system
⑭ Y-axis driving system
⑮ Bar switch
⒃ Frame
⒔ Main controller box
⒕ Operation box
⒖ Encoder
⒗ Main power switch
󱇽 Lamp
󱇾 Supporting bolt
󱇿 Leveling base
󱈀 Thread detector
󱈁 Emergency power switch
