5-1
FUNCTIONS FOR BASIC MACHINE OPERATION
CHAPTER 5

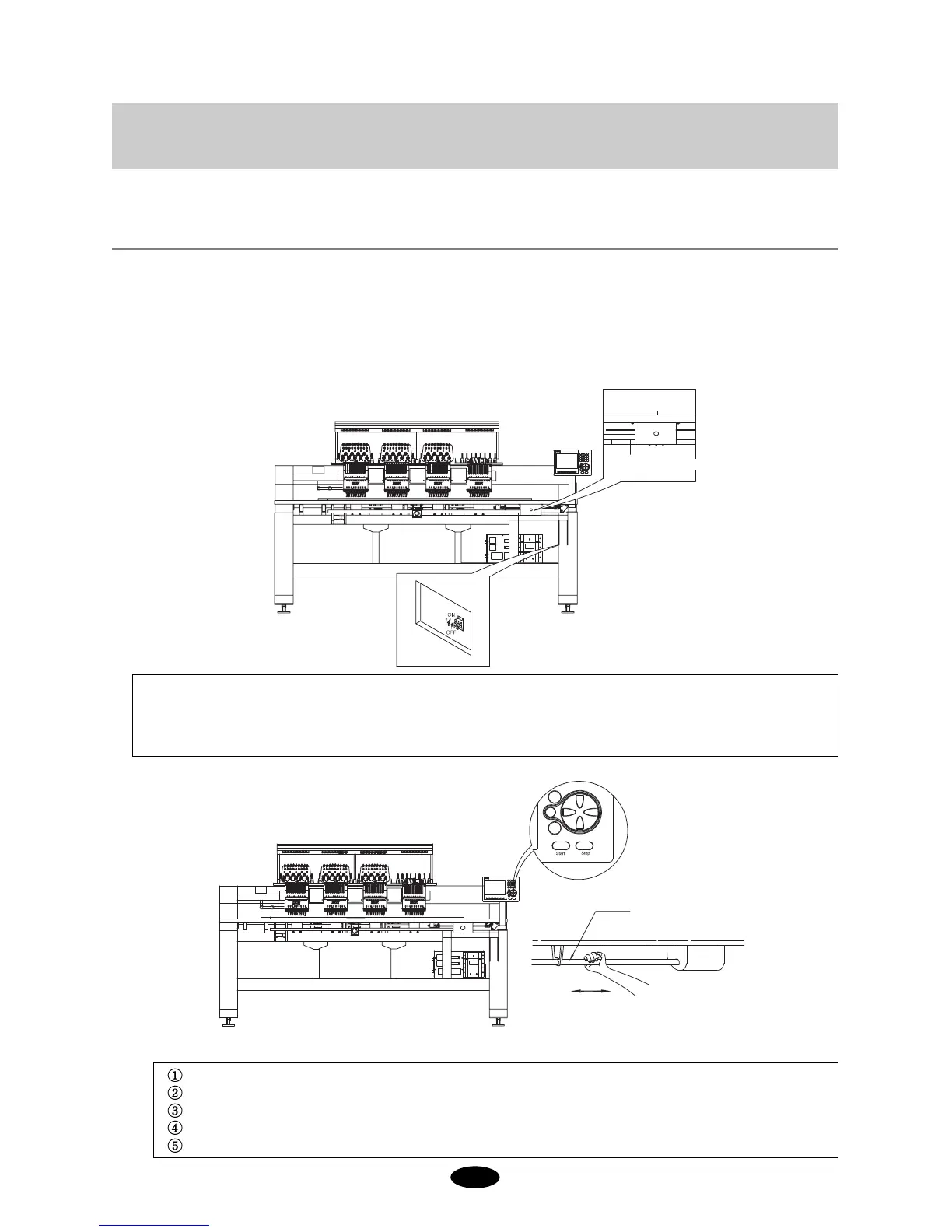

5-1) EMERGENCY POWER AND START/STOP/BAR SWITCH
5-1-1) Emergency Power Switch
Starting the machine in the initial stage
① Turn on the main power ([Fig.5-1]).
② Press the emergency power switch (green color).
③ Emergency power switch will not turn on if the main power is off.
5-1-2) Start/Stop Buttons & Bar Switch
[Fig.5-2]
Use the START/STOP buttons and Bar switch to:
Start the embroidery work or stop the machine during operation.
Move the frame back during machine stop.
Move forward in design during machine stop (non-stitching)
Move backward in design during machine stop (non-stitching)
Do work other than embroidery
Bar switch
(STOP)Left Right(START)
[Fig.5-1]
[NOTE]
Emergency power switch detects emergency stop failures and prevents accidents.
Emergency power function detects the failure of the emergency stop function and prevents the machine from
being switched on.
Emergency power switch
