3) Take-Up Spring
5-8
① Take-up Spring Functions
Difference in the length of the upper thread pulled by the take-up lever and pulled by the hook creates tension
or looping. When the tension is too weak, the take-up spring handles the leftover length of the upper thread.
Increase the tension or the stroke of the spring to form tight stitches on the embroidery.
② Take-up Spring Adjustment
ⓐ Tension on the take-up spring affects the thread
tension. Turn the tension adjusting stud clockwise
to increase the tension and counter-clockwise to
decrease the tension.
ⓑ Adjusting stroke of the take-up spring:
To adjust the stroke of the spring during embroidery
work, move the take-up spring stopper to right or
left as shown in [Fig.5-11].
stopper
Thread
tension
adjusting
stud
CORRECT
WRONG
Take-up spring

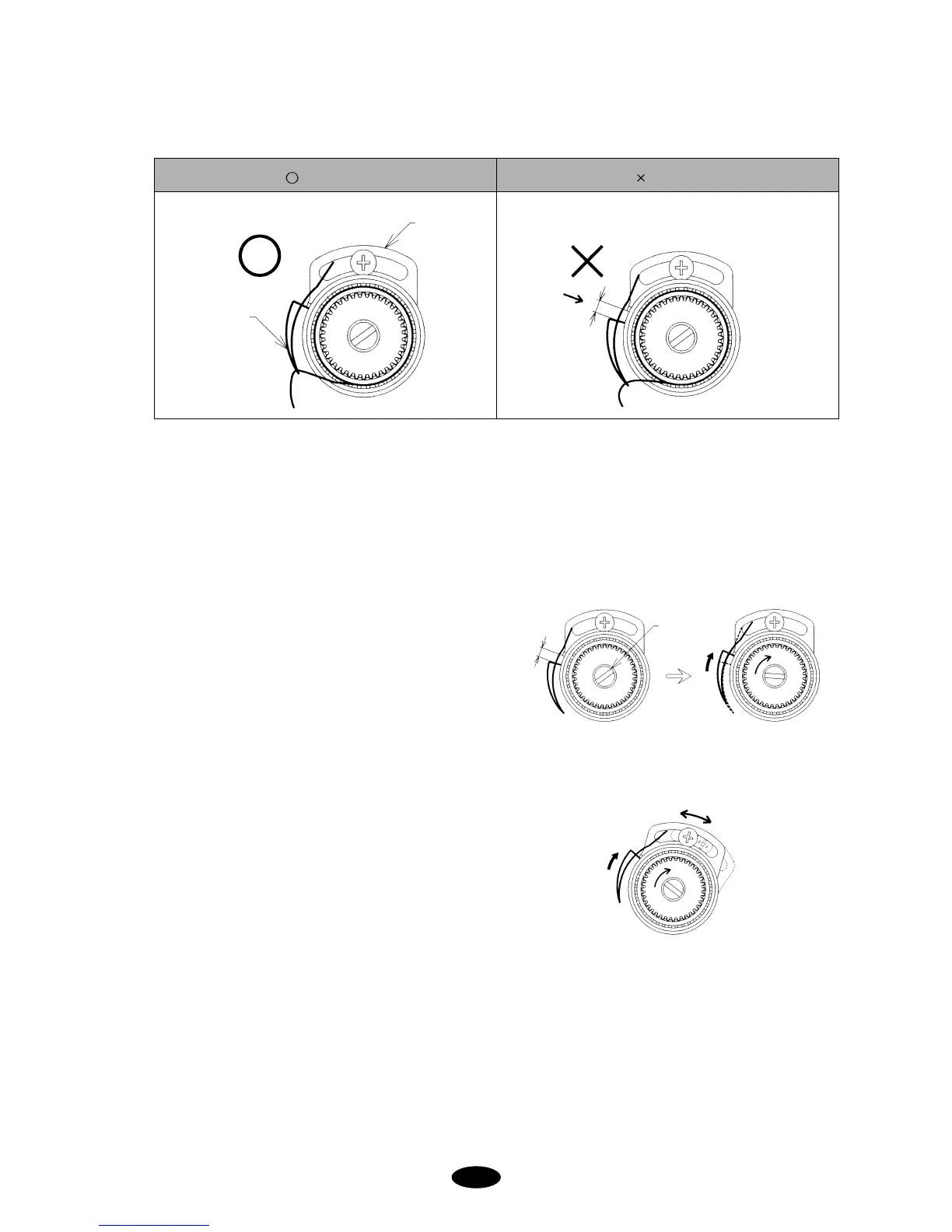

[Fig.5-11]
[Fig.5-10]
Take-up spring unable to connect with the stopper
(due to dust or foreign substances in the stopper.)
Connect between the take-up spring and the stopper.
