THREE PHASE HI 25/50kW | Installer Manual27

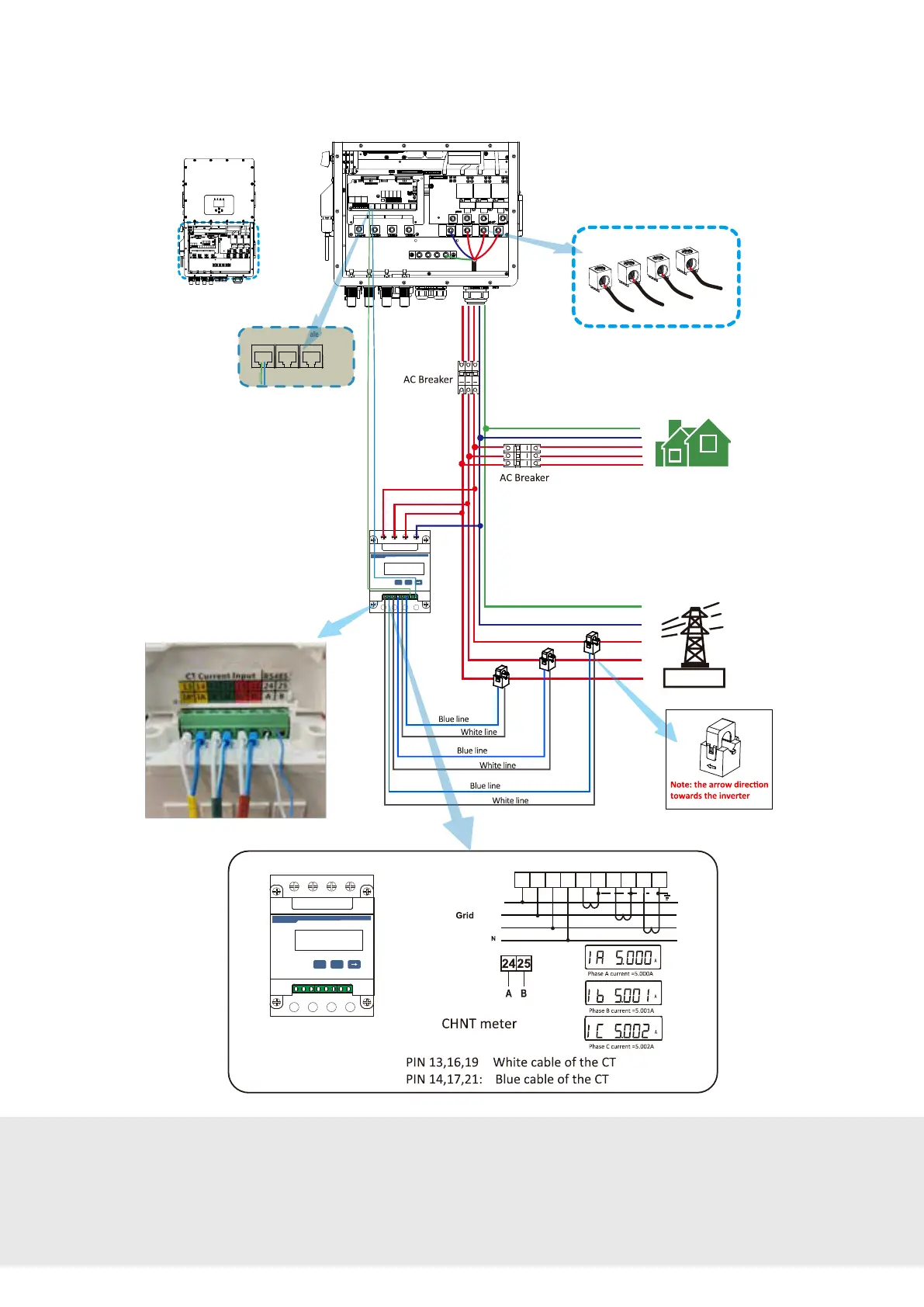

4.9.2. System Connection for the CHNT Meter with CT Coil
Three-Phase Smart Meter
SET ESC
7
2524211917161413
3 96 10
GRID
Parallel_1 Parallel_2Meter
Inverter
L1
L2
L3
N
PE
Grid
Home Load
L1
L3
N
PE
L2
CT1
CT2
CT3
RS485A
RS485B
N
L1
L2
L3
Three-Phase Smart Meter
SET ESC
2524211917161413
3 96 10
RS 485
CHNT DTSU666
(3,6,9,10)
3 13146 9 10 16171921
L1
L2
L3
�
230/400V,3~
250A/50mA
50/60Hz
PLEASE NOTE
When the inverter is in the o-grid state, the N line needs to be connected to the earth.
In the nal installation, a breaker certied according to IEC 60947-1 and IEC 60947-2 shall be installed
with the equipment.

SunSynk SUN-30K-SG01HP3-EU-BM3 Specifications

General

Model	SUN-30K-SG01HP3-EU-BM3
Type	Hybrid Inverter
Rated Power	30 kW
Max. DC Input Power	45 kW
Input Voltage Range	200-1000 V
DC Voltage Range	200-1000 V
MPPT Voltage Range	200-850V
Max DC Input Current	60 A
Number of MPPTs	2
Max. Input Current per MPPT	30 A
Efficiency	98.6%
Max. AC Output Power	30 kW
Battery Voltage	48 V
Protection	IP65
Weight	85 kg
Topology	Transformerless
Nominal AC Output Power	30 kW
Nominal Input Voltage	400 V
Output Frequency	50/60 Hz
THD	<3%
Protection Level	IP65
Communication	RS485, Wi-Fi, Ethernet
Operating Temperature Range	-25°C to 60°C
Output Power Factor	1.0
