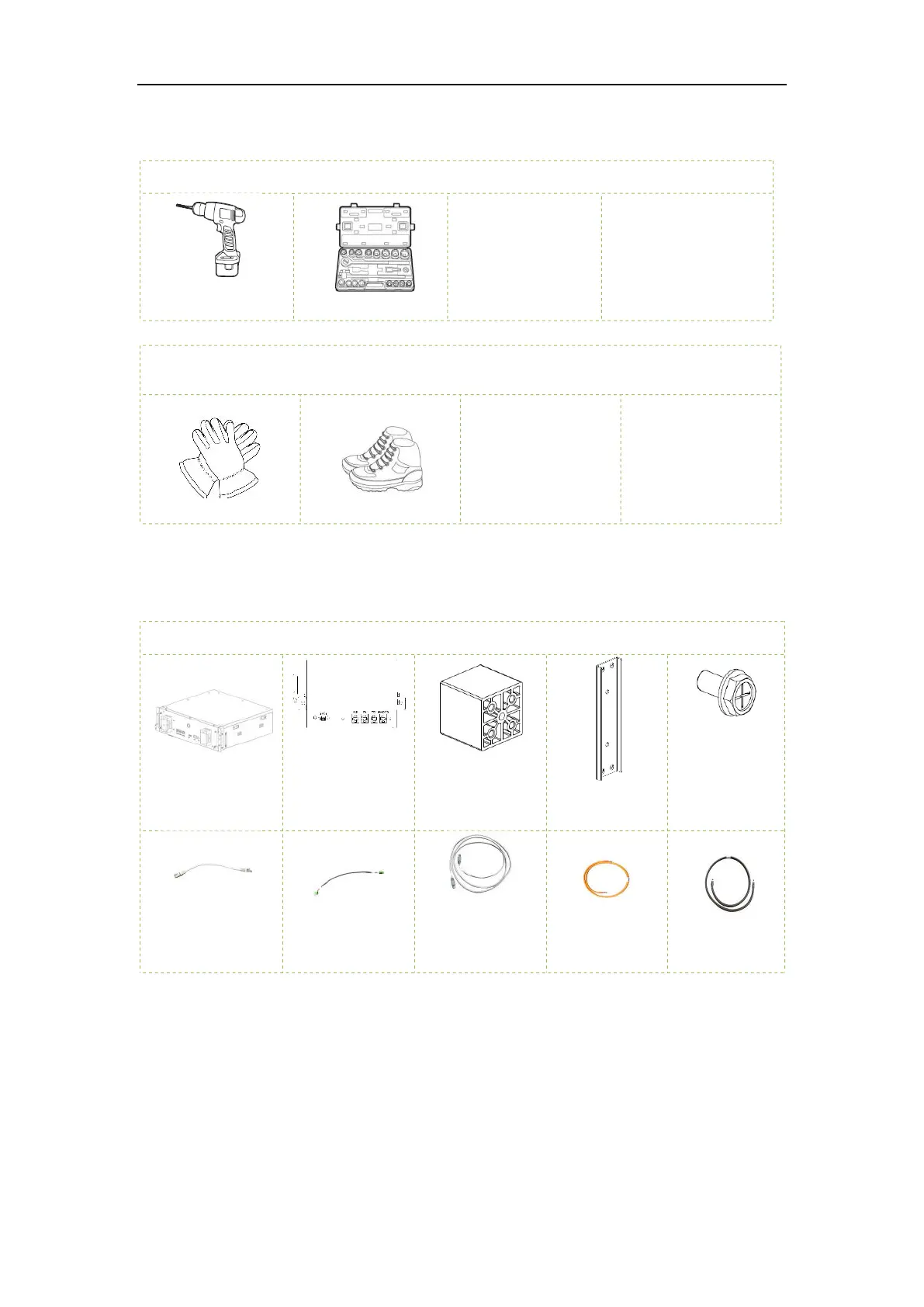

2.1.3 Preparation of installation tools
Tools
Electric screwdriver
(M5 sleeve)
Wrench
Personal Protective Equipment
Safety gloves
safety shoes
2.1.4 Unboxing guide
Unpacking checklist
Components
Battery
Data display box
（Optional
accessory
Feet X4
Racks X4
M5*10 screw
X24
PCS-RS485/CAN
communication
cable X1
Power on cable
X1
PCS-RS485/CAN
communication
cable X1
Positive wire
harness X1
Negative wire
harness X1
Note:
1) The parallel wiring between the battery packs is pressed with a 25mm² wire at the
installation site to the M8 OT terminal with a wire length of 320mm.
2) The standard wiring of the battery is 25mm², if the matching inverter selection > 5kW power
or greater power, it is recommended that the system wiring selection harness specification
use 50mm² or larger specification wire harness.
