Water damage
Risk of electric shock and internal short-circuit. In case of splash or water spillage, when it is safe
to do so, dry the product. If any part of the battery system is submerged, keep away from water.
Do not reuse the submerged battery. Contact a service for support.
1 Product Description
This document mainly introduces the product, installation, commissioning, maintenance,
troubleshooting, packaging, and transportation of the Atrix basic energy storage system.
1.1 Product Introduction
• This product is a lithium battery energy storage system based on the chemical composition of
Lithium Iron Phosphate (LFP), and adopts a module parallel design.
• A single system consists of a data display box (optional) and multiple battery modules, and
supports up to 4 battery modules in parallel.
• The battery energy storage system can be used with the inverter, and the communication adopts
CAN .
• The system supports up to 2 single systems connected in parallel, which can be expanded to
40kWh.
• The battery management system provides data collection, status monitoring and control to
ensure safe and reliable operation of the system.
• The system adopts IP20 protection design to support indoor use.

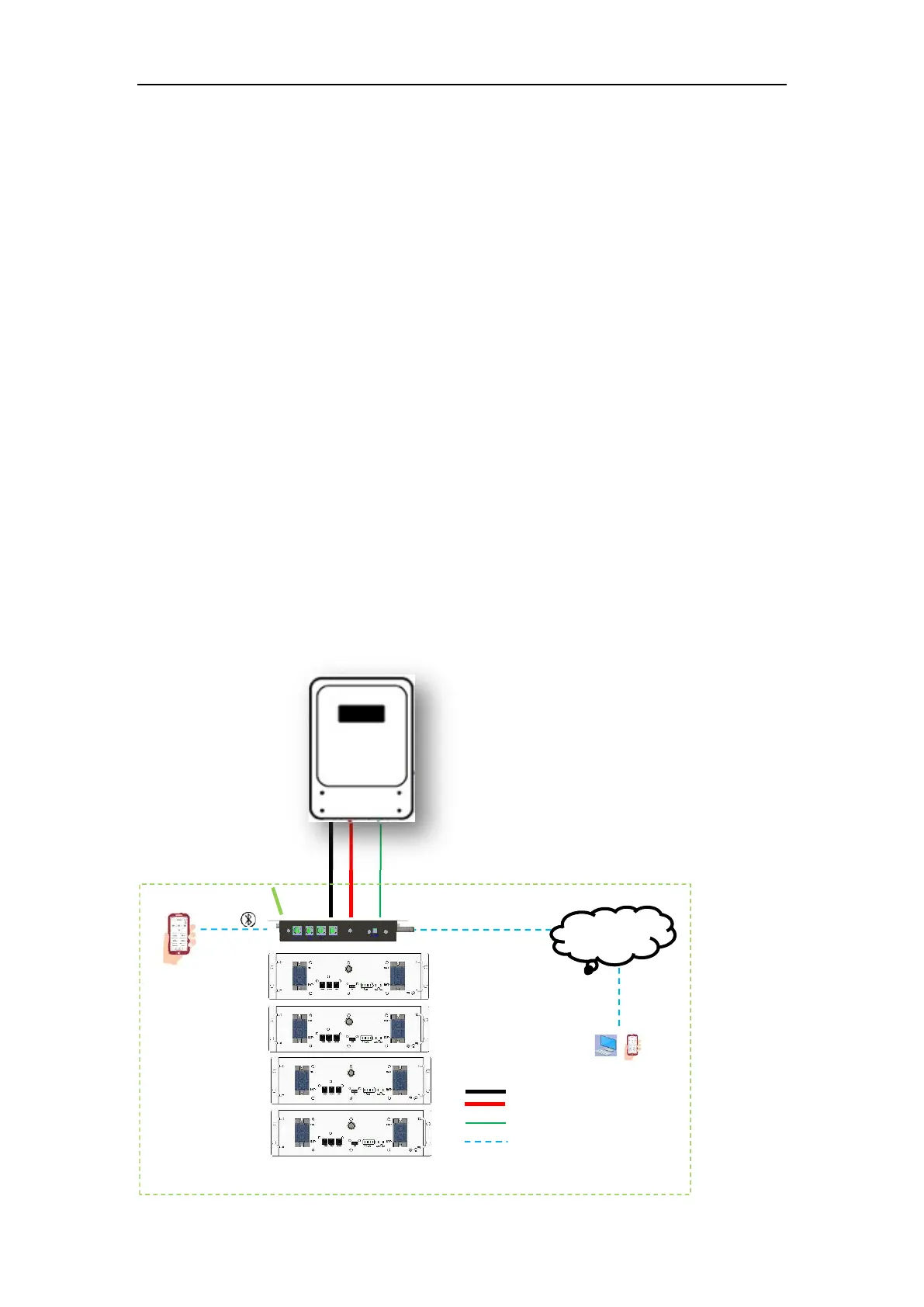

System Diagram
WiFi
Internet
GPRS
APP
APP
Products within the dotted line are provided by SUNWODA ENERGY
DC Power cable
Signal cable
Wireliss communication
Atrix
basic
Optional
To Next Page
