8 Positive wiring between battery
modules, typical color orange/red.
25mm²,suggest
By local provide
9 Connect the battery with BAT-CAN,
typical color GRAY
8P8C Type 5 Shielded
network cable,220mm
BAT-COM3 to BAT-COM2
Note:
1) The parallel wiring between the battery packs is pressed with a 25mm² wire at the
installation site to the M8 OT terminal with a wire length of 320mm.
2) The standard wiring of the battery is 25mm², if the matching inverter selection > 5kW power
or greater power, it is recommended that the system wiring selection harness specification
use 50mm² or larger specification wire harness.

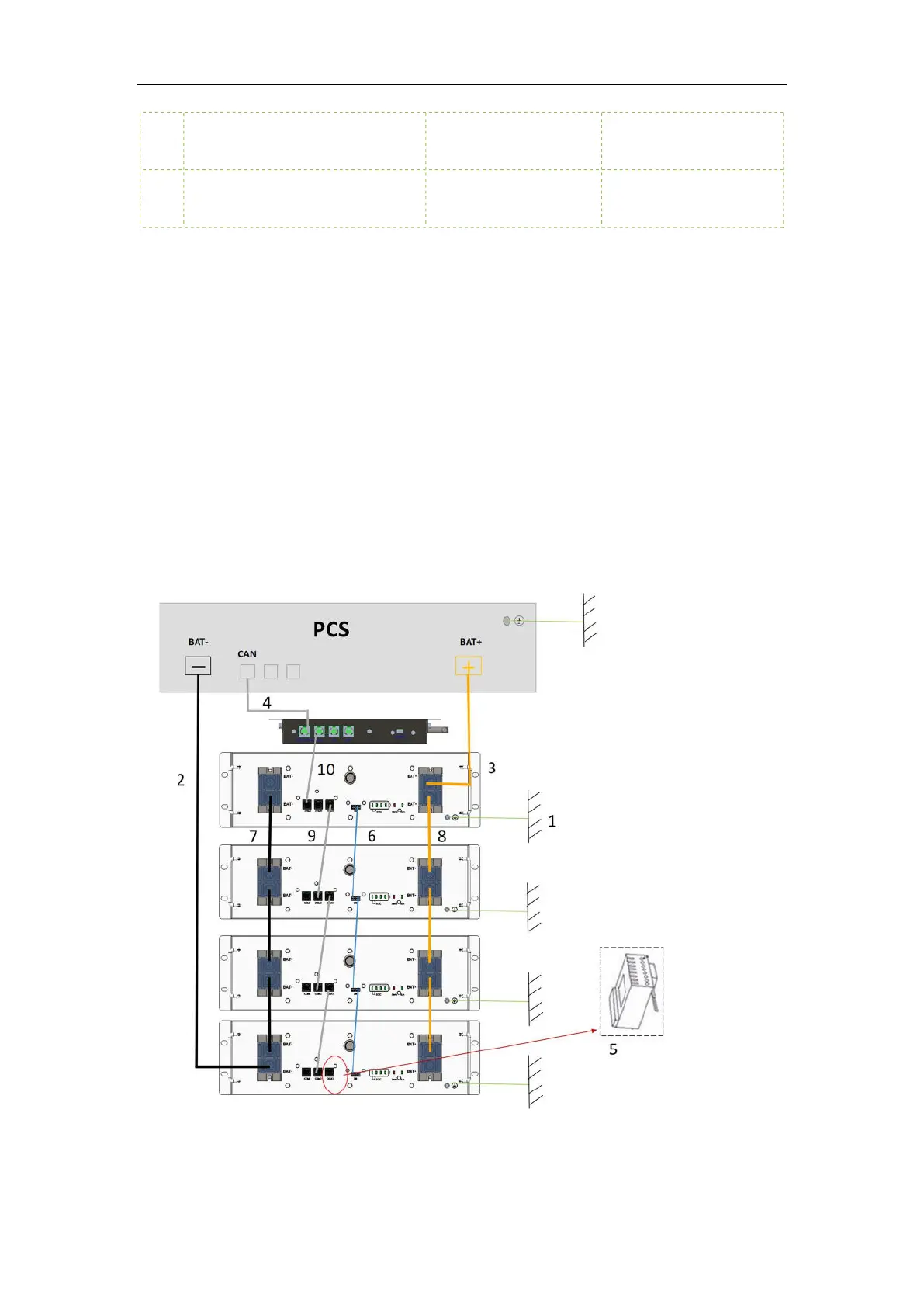

One cluster of parallel connection with data display box shown as follows (Optional for data display
box), PCS: 51.2V input
接地
