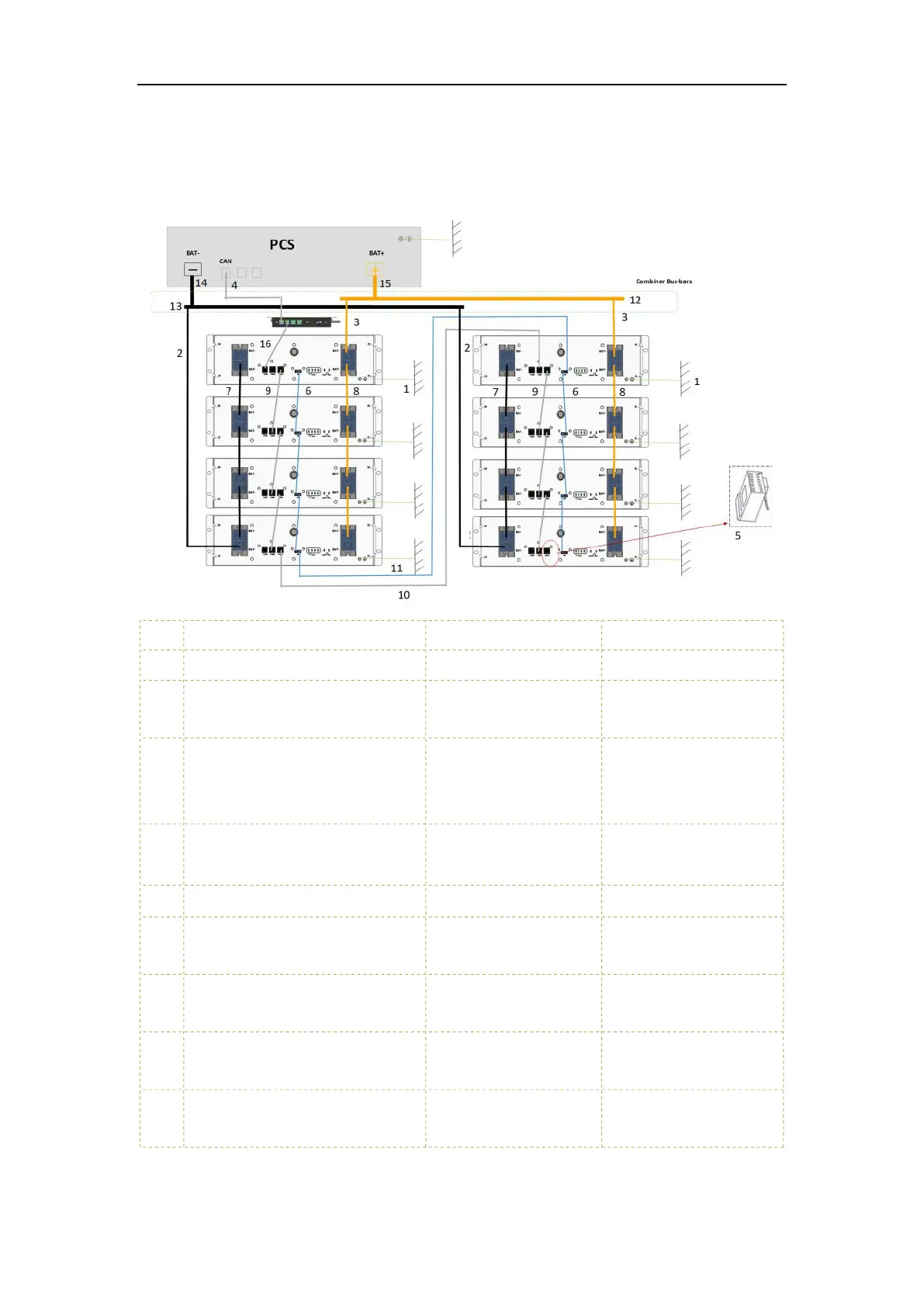

Two clusters of parallel connection with data display box shown as follows, (Optional for data
display box), PCS: 51.2V input
No.
Electrical connection Wire specifications Mark
1 Battery module grounding M8 With grounding terminal
2 Connect the battery negative with
PCS negative, typical color black.
25mm²,1500mm
PCS- to BAT-
3 Connect the battery positive with
PCS positive, typical color
orange/red.
25mm²,1500mm
PCS+ to BAT+
4 Connect the battery with PCS-CAN,
typical color GRAY
8P8C Type 5 Shielded
network cable,2000mm
BAT-COM1 to PCS-CAN
5 Terminal Resistance 120Ω By local provide
6 Connection with one-button power
on function, paired connection
Power on cable,250mm /
7 Negative wiring between battery
modules, typical color black
25mm²,suggest
By local provide
8 Positive wiring between battery
modules, typical color orange/red.
25mm²,suggest
By local provide
9 Connect the battery with BAT-CAN,
typical color GRAY
8P8C Type 5 Shielded
network cable,220mm
BAT-COM3 to BAT-COM2
To Next Page
