Superior™ DRT2000 and DRC2000 Direct-Vent Gas Fireplaces
44

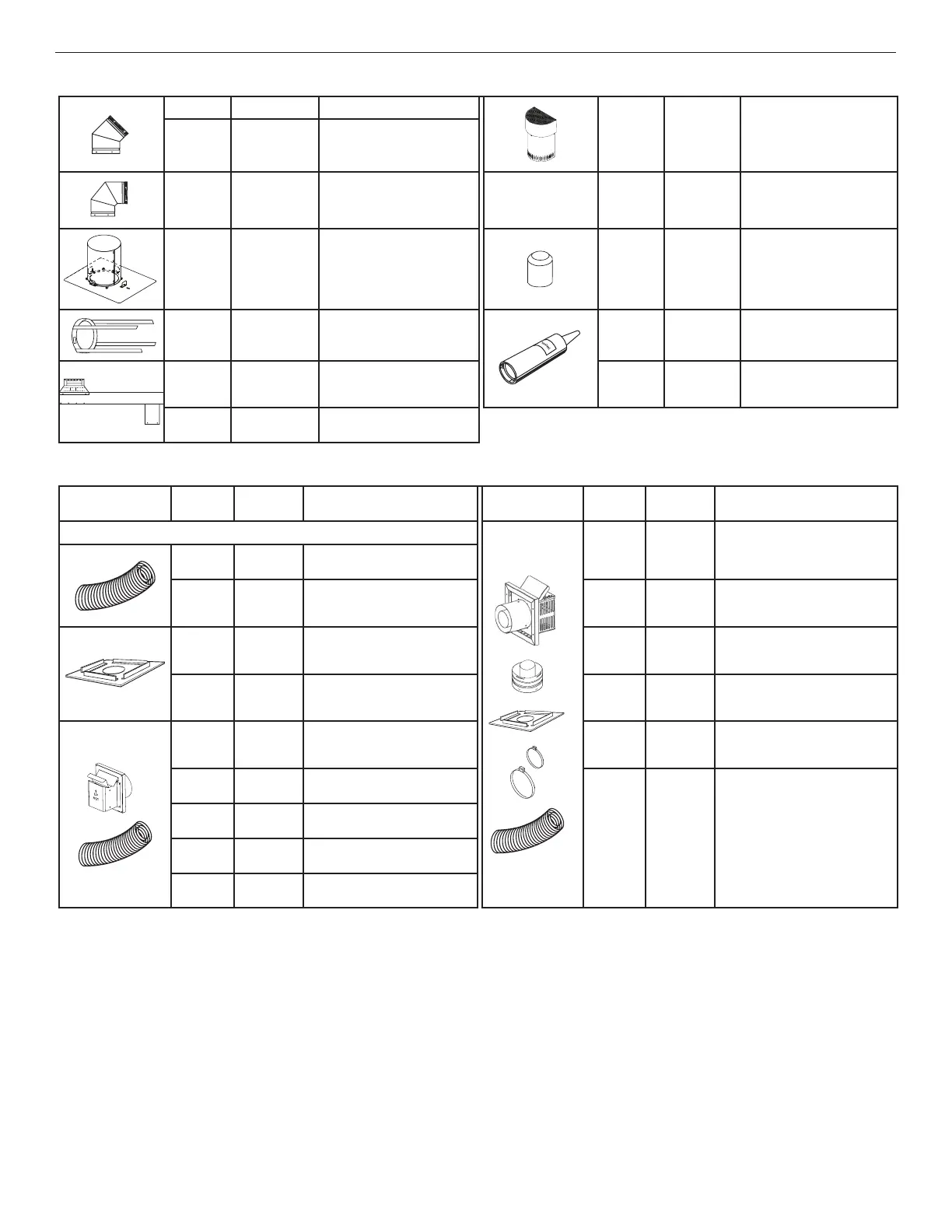

Table 31: Listed Secure Vent
®
Components
77L76 SV4.5E45 45° Elbow
H5820 SV4.5HTSK
Termination Shroud (Guard)
for Horizontal Square
Termination (1 pack)
(see 750246M)
77L77 SV4.5E90 90° Elbow
Catalog
Number
Model Description
Catalog
Number
Model Description
H5816
750,247M
SV4.5-TWSK10
Through Wall Shield Kit
(to shield direct-vent pipe
from blown insulation)
(see 750247M)
H3907 SV4.5ARSA
Attic Insulation Shield with
adjustable height, 12–22”
96K93 SV4.5SU Support Strap
S
e
a
l
a
n
t
10K81 SFMP
Mill-Pac, Black, High-
Temperature Sealant
99L02 SV4.5HRK14
Horizontal Riser Kit, 14”(see
750146M)
89L40 SFMP-12
Mill-Pac, Black, High-
Temperature Sealant
(bulk 12-pack)
99L03 SV4.5HRK36
Horizontal Riser Kit, 36”
(see 750146M)
Table 32: Listed Secure Flex
®
Components
Catalog
Number
Model Description
Catalog
Number
Model Description
These termination kits include firestop/spacer, gear clamps, and flex adaptor.
94L04 SFKIT12SS
Small Square Termination for flex,
with 12” (305 mm) of *compressed
flex vent (see 750204M)
60L10 SF-18
18 ft (5.49 m)* compressed flex
(see 750053M)
98K03 SF-12
12 ft (3.66 m)*compressed flex
(see 750052M)
94L05 SFKIT18SS
Small Square Termination for flex,
with 18” (457 mm) of *compressed
flex vent (see 750204M)
H2248 SF4.5HF-10
Firestop/Spacer, Horizontal, flex
(3-1-1 spacing), 10 Pack
94L06 SFKIT24SS
Small Square Termination for flex,
with 24” (610 mm) of *compressed
flex vent (see 750204M)
H2249 SF4.5VF-10
Firestop/Spacer, Vertical, flex (1-1-1
spacing),10 Pack
94L07 SFKIT36SS
Small Square Termination for flex,
with 36” (914 mm) of *compressed
flex vent (see 750204M)
F1803 SF4.5HTKCT
Horizontal Compact Termination
for flex (without flex)
94L08 SFKIT48SS
Small Square Termination for flex, with
48” (1219 mm) of *compressed flex
vent (see 750204M)
F1799 SFKIT18CT
Compact Termination for flex with
18” (457 mm) compressed flex
94L09 SF-HTSS
Horizontal Small Square Termination
for flex, without flex vent
(see 750204M)
F1800 SFKIT24CT
Compact Termination for flex with
24” (610 mm) compressed flex
F1801 SFKIT36CT
Compact Termination for flex with
36” (914 mm) compressed flex
F1802 SFKIT48CT
Compact Termination for flex with
48” (1219 mm) compressed flex
