Installing the DRT2040 and DRT2045 logs
The logs have notches/tabs to assist proper positioning. Upper logs rest on lower logs via notches/tabs. Proper log
placement is critical to prevent sooting. Place the logs in the gaps between flame peaks, so they do not impinge the
flames. Follow the log placement instructions precisely.
NOTE: Do not cover the burner ports.
Table 38: DRT2040 Log Set
5
4
3
2
1
Log Number Description
1 Rear Log
2 Left Front Log
3 Right Front Log
4 Right Cross Log
5 Left Cross Log
Catalog number for the entire set:
DRT2040: F1830
DRT2045: F1884
1. If necessary, remove the glass door (Page 56).
2. Locate the log placement brackets (not all are shown) (Figure 54).

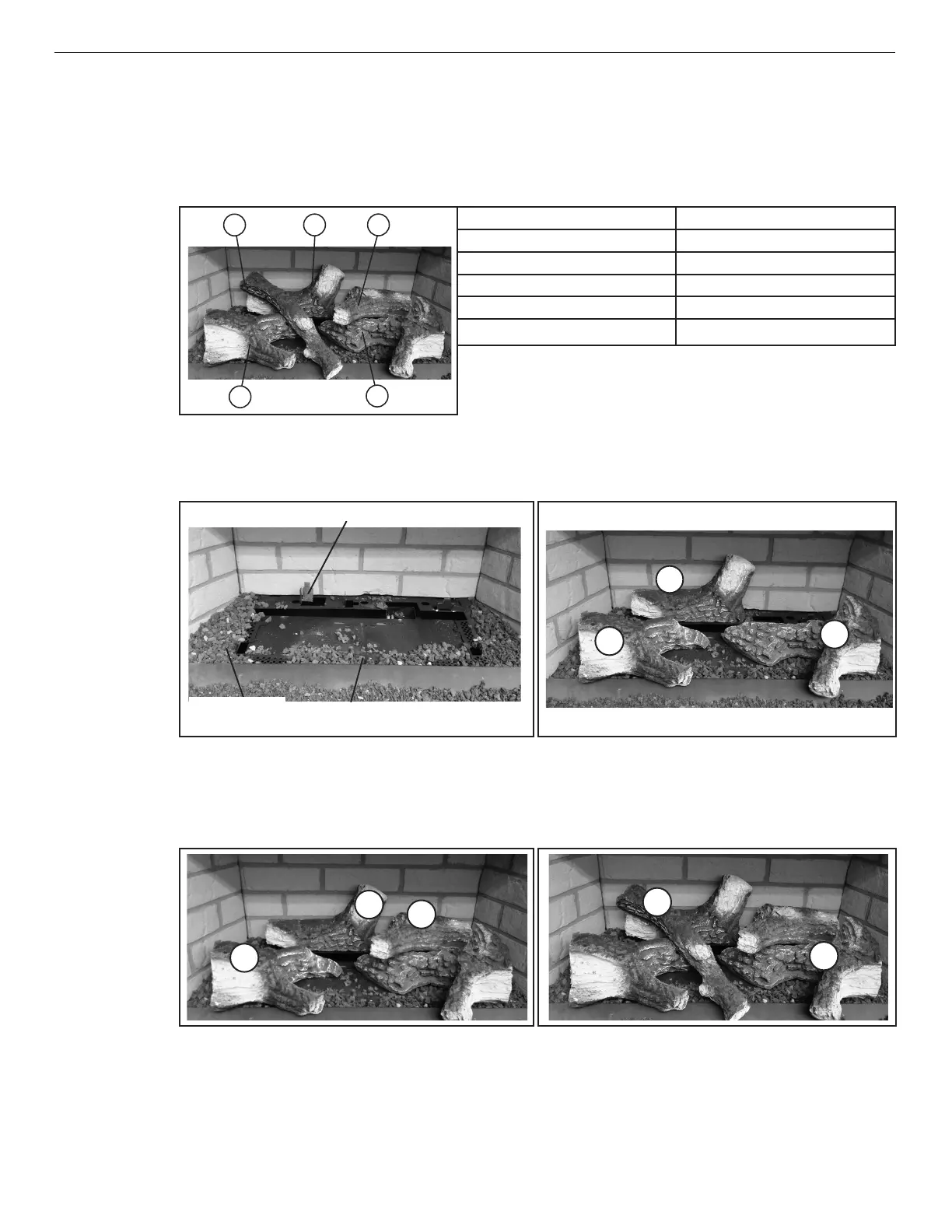

Figure 54: Placing log 1 Figure 55: Placing logs 2 and 3
Glowing Embers
(Do not place glowing embers over burner slots)
Left Rear Log Bracket
Volcanic Stone
3
2
3. Position rear log (1) on the left rear log bracket (Figure 55)
4. Position the left front log (2) and the right front log (3) against the log rack (Figure 55).
5. Position the right cross log (4) over the right front log (3) (Figure 56).
Figure 56: Placing log 4 Figure 57: Placing log 5
4
2
1
3
5
6. Position the left cross log (5) on the left rear log bracket and over left front log (2) (Figure 57).
NOTE: Fireplace is shown with optional brick panels.
1
