30
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

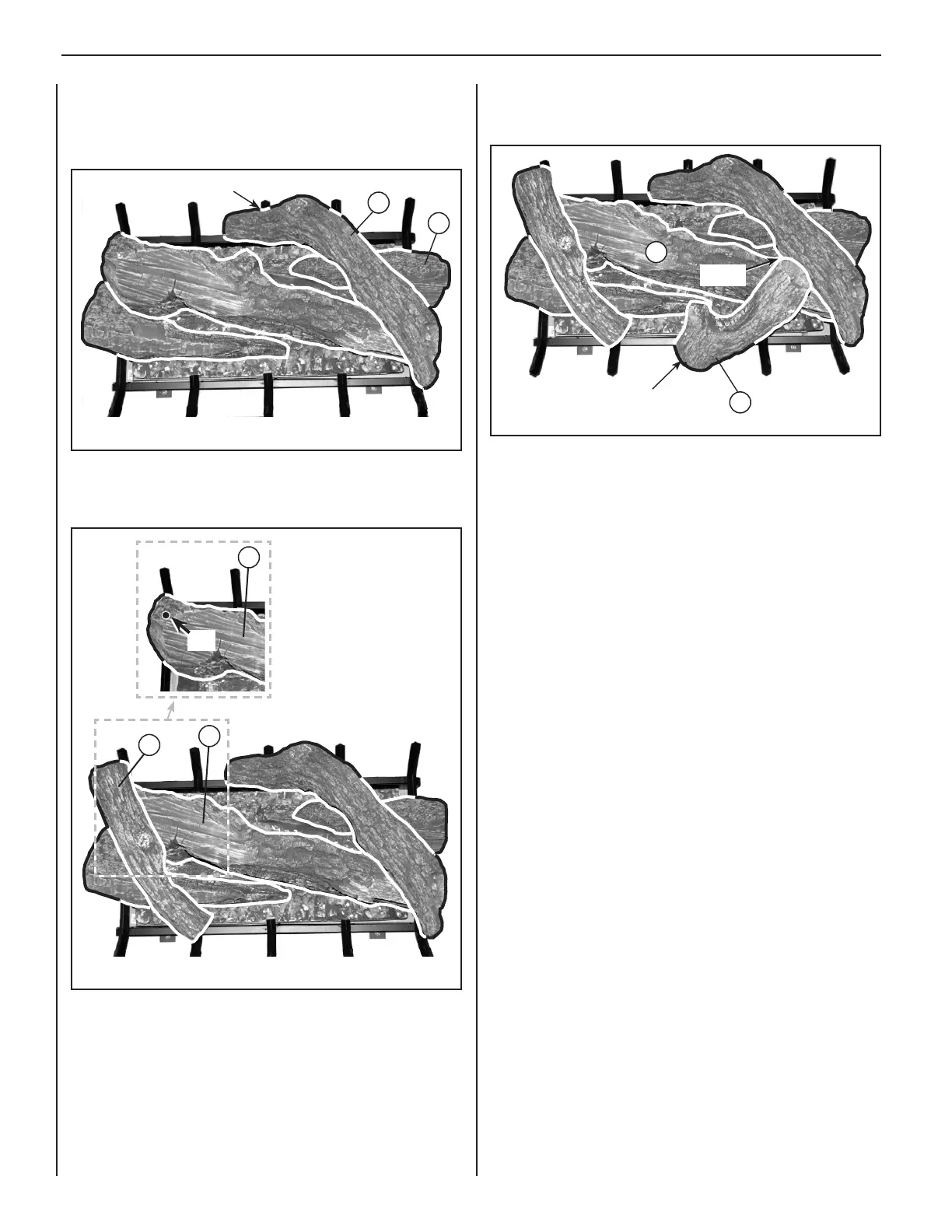

9-11. See Figure 49. Place groove on underside of Top Front Log F over
the grate finger. Rest the other end of the log on the Landing on
Center Log A.
Figure 48
9-10. See Figure 48. Place hole on underside of Top Left Log E over pin
on Center Log A.
9-9. Place groove on underside of Top Right Log D over the grate as
shown in Figure 47.
The middle section of Log D will rest on the landing on Log B
(labeled as “Landing for Log D” in Figure 45).
Groove Location
Figure 47
Figure 49
Groove Location
Landing
INNOVATIVE HEARTH PRODUCTS • SEE-THROUGH DIRECT-VENT GAS FIREPLACES (DRT63STTEN/P) • INSTALLATION INSTRUCTIONS
Pin
[DETAIL]
A
E
A
D
B
A
F
To Next Page
