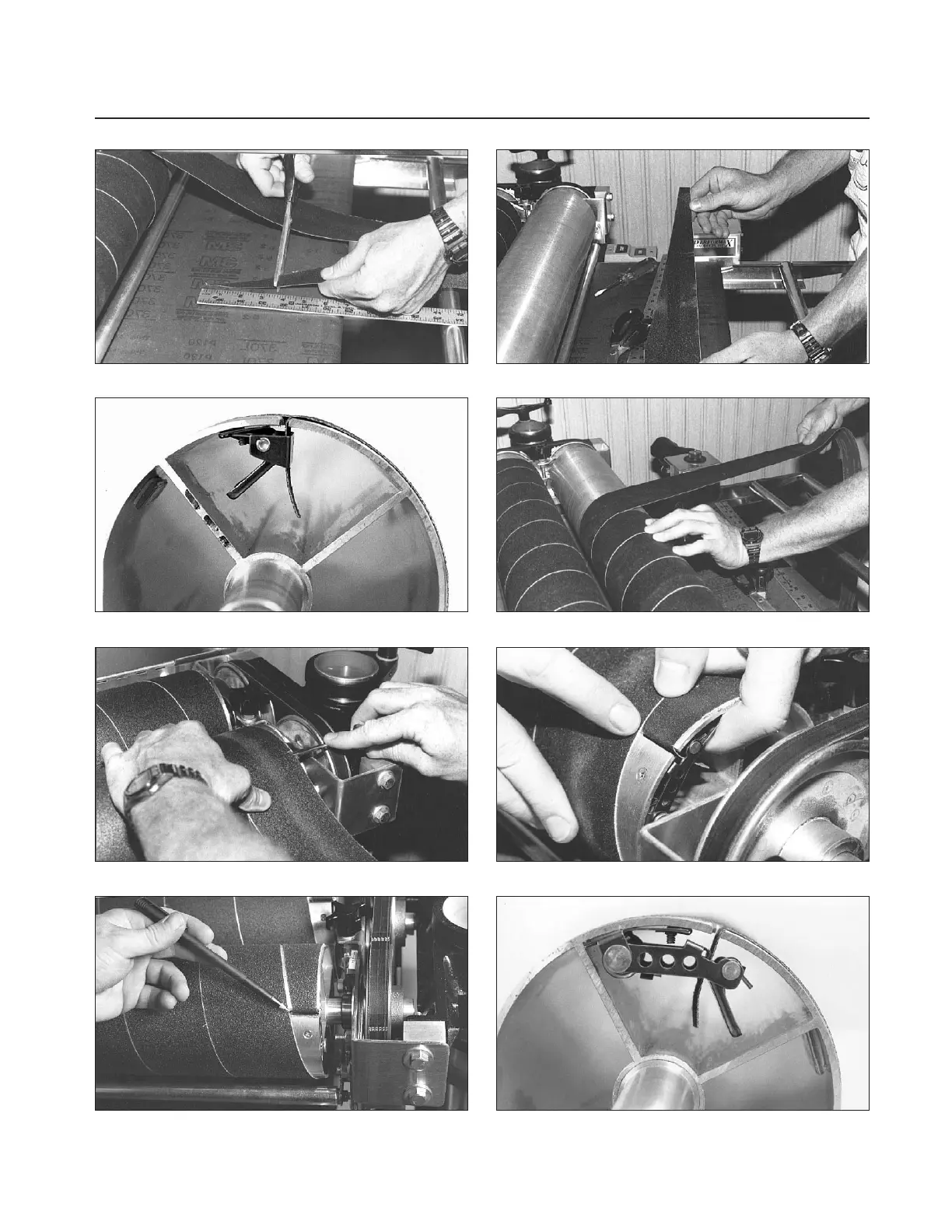

Fig. 12-b. Trim about 3" from end of cut taper. Fig. 12-c. Trimmed tapered end ready to install.
Fig. 12-d. Insert tapered end into outboard slot. Fig. 12-e. Wrap strip around drum without overlap.
Fig. 12-f. Mark strip where it crosses drum edge. Fig. 12-g. Insert tapered end into inboard slot.
Fig. 12-h. Allow room inside slot for strip to move. Fig. 12-i. Reset take-up as needed as strip stretches.
