Supermicro AOC-UIBQ-m1 User Manual

2-1
Chapter 2
Card Components
2-1 Front Components
Figure 2-1 shows the front components of the AOC-UIBQ-m1/m2 add-on card.
Table 2-1 lists the add-on card’s front components and their description.

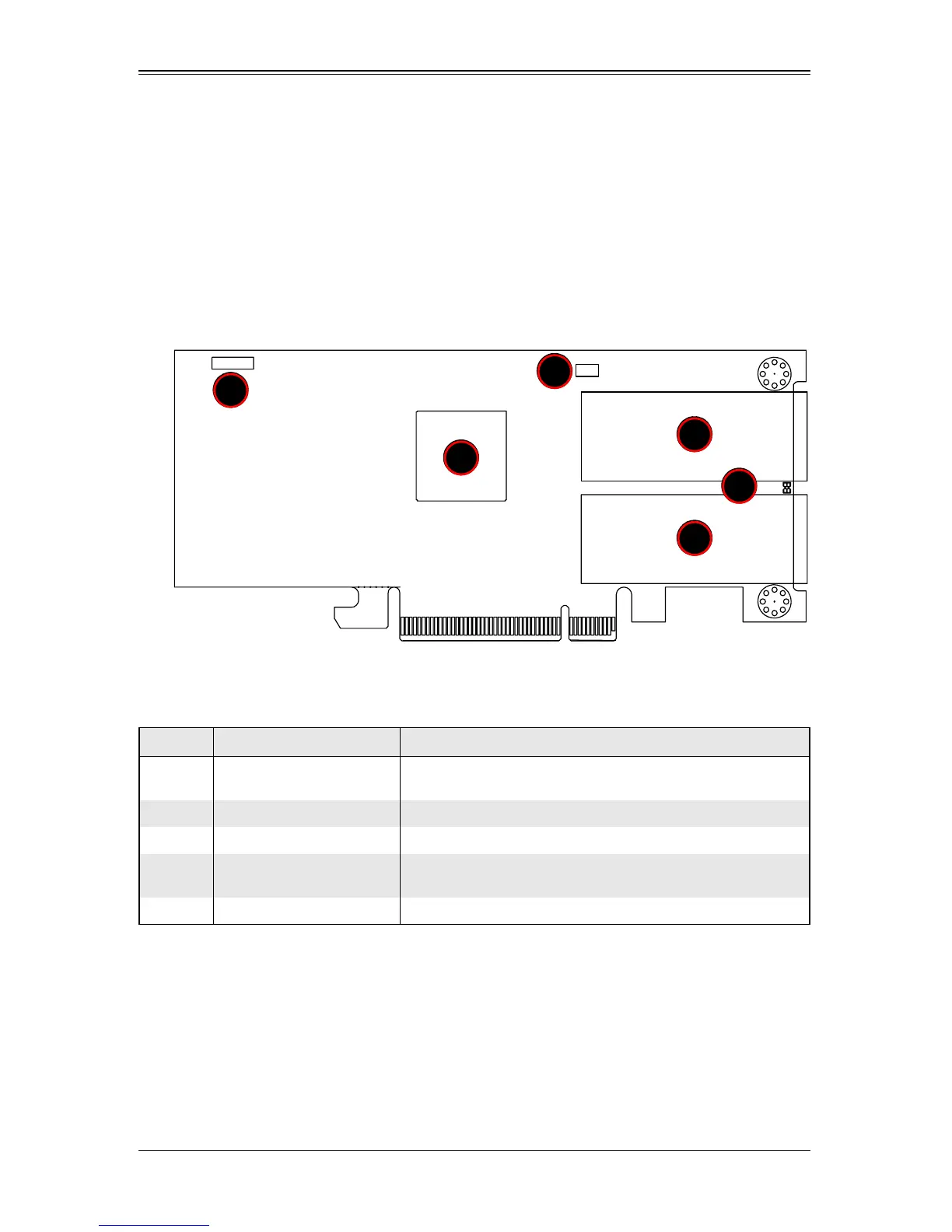

Figure 2-1. AOC-UIBQ-m1/m2 Add-on Card Front Components
Table 2-1. Front Components
Number Name Description
1 QSFP Connector Port
Port for a single or dual QSFP connectors (single for
AOC-UIBQ-m1, dual for AOC-UIBQ-m2)
2 LEDs LEDs for QSFP activity and link-up
3 J1 Jumper Flash ROM Present enable/disable jumper
4
Mellanox ConnectX-2 QDR
chip
Controller chip for the AOC-UIBQ-m1/m2 add-on card.
5 J2 Jumper This jumper is used for Engineering Debugging only.
LED1
J1
J2
1
2
3
4
5
1
