Supermicro H11DSi User Manual

Appendix A: Software Installation
119
Appendix A
Software Installation
A.1 Installing Software Programs
The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp.supermicro.
com. Some of these must be installed, such as the chipset driver.
After accessing the FTP site, go into the CDR_Images directory and locate the ISO le for
your motherboard. Download this le to create a CD/DVD of the drivers and utilities it contains.
(You may also use a utility to extract the ISO le if preferred.)
After creating a CD/DVD with the ISO les, insert the disk into the CD/DVD drive on your
system and the display shown in Figure B-1 should appear.
Another option is to go to the Supermicro website at http://www.supermicro.com/products/.
Find the product page for your motherboard here, where you may download individual drivers
and utilities to your hard drive or a USB ash drive and install from there.
Note: To install the Windows OS, please refer to the instructions posted on our website at
http://www.supermicro.com/support/manuals/.

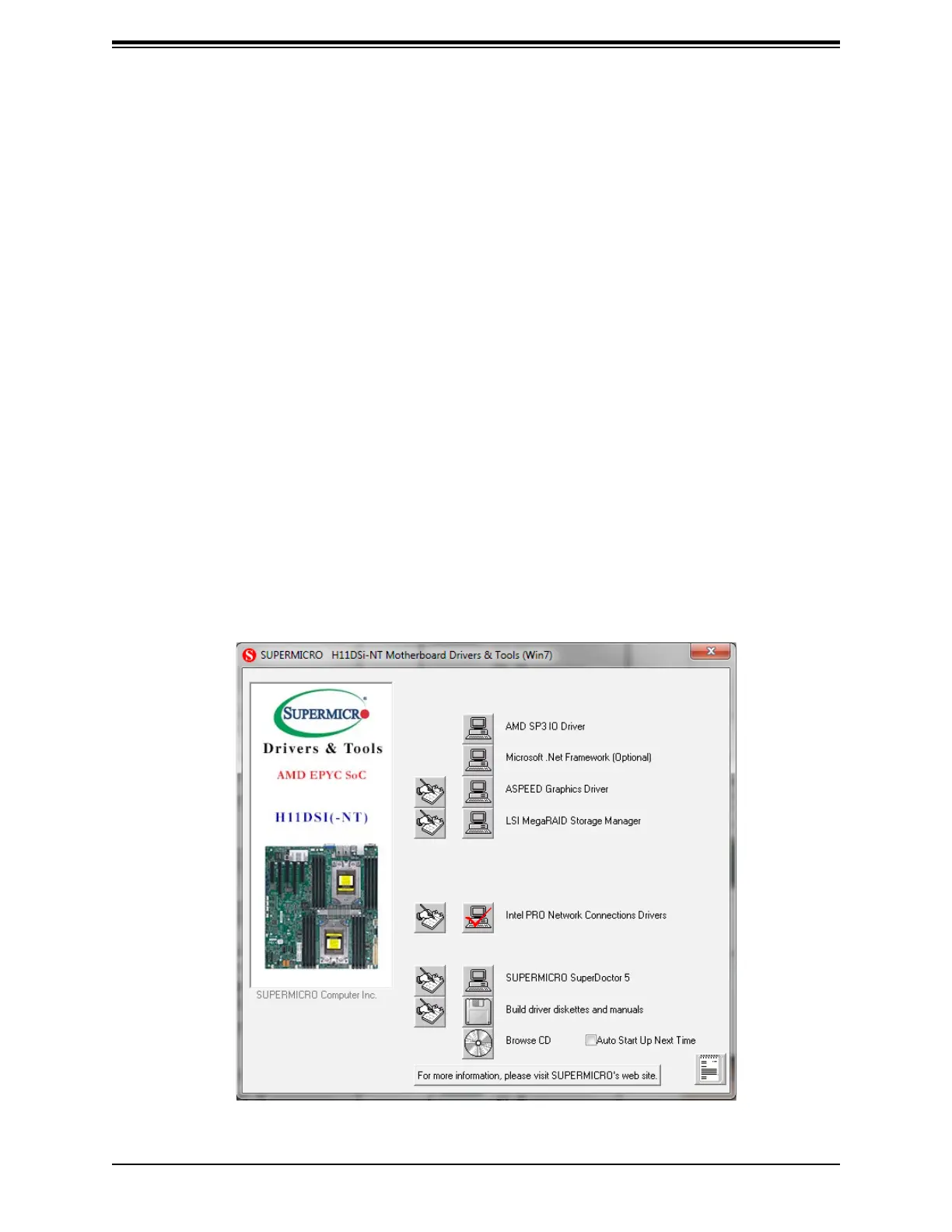

Figure A-1. Driver/Tool Installation Display Screen

Supermicro H11DSi Specifications

General

ECC	Yes
Memory voltage	1.2 V
Memory slots type	DIMM
Number of memory slots	12
Supported memory types	DDR4-SDRAM
Maximum internal memory	2000 GB
Supported memory clock speeds	2666 MHz
Component for	PC
Motherboard chipset	System on Chip
Motherboard form factor	Extended ATX
Motherboard chipset family	AMD
PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of SATA III connectors	10
Number of DIMM slots	16
Supported RDIMM module capacity	8GB, 16GB, 32GB, 64GB
BIOS type	AMI
ACPI version	5.1
BIOS memory size	128 Mbit
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x8 (Gen 3.x) slots	3
Processor socket	Socket SP3
Supported storage drive interfaces	SATA III

Weight and Dimensions

Depth	331 mm
Width	305 mm
