Chapter 2: Installation
2.2 Motherboard Installation
All motherboards have standard mounting holes to t different types of chassis. Make sure
that the locations of all the mounting holes for both the motherboard and the chassis match.
Although a chassis may have both plastic and metal mounting fasteners, metal ones are
highly recommended because they ground the motherboard to the chassis. Make sure that
the metal standoffs click in or are screwed in tightly.

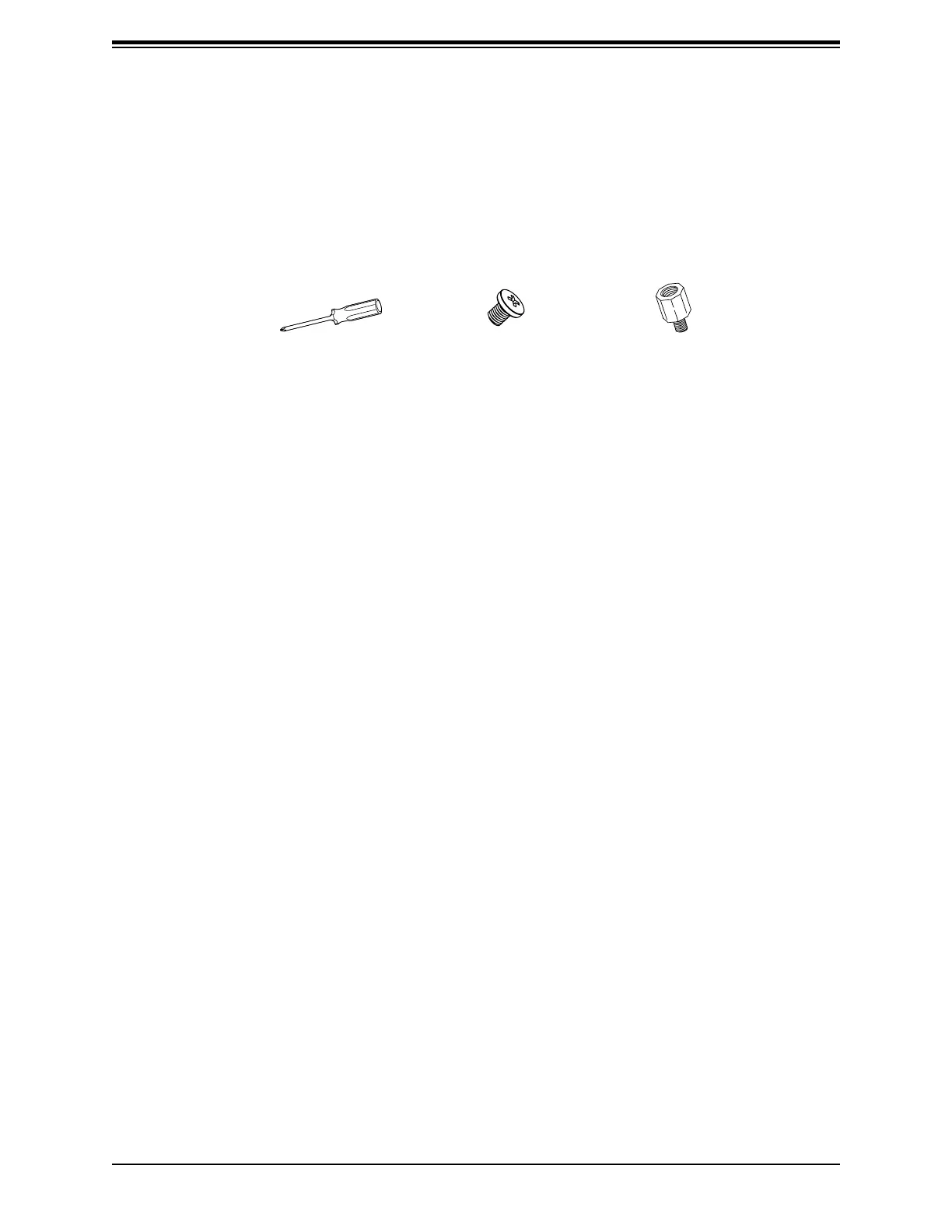

Philips
Screwdriver (1)
Standoffs (13)
Only if Needed
Philips Screws (13)
Tools Needed
Location of Mounting Holes
Notes:
1. To avoid damaging the motherboard and its components, please do not use a force
greater than 8 lb/inch on each mounting screw during motherboard installation.
2. Some components are very close to the mounting holes. Please take precautionary
measures to avoid damaging these components when installing the motherboard to the
chassis.

Supermicro H11DSi Specifications

General

ECC	Yes
Memory voltage	1.2 V
Memory slots type	DIMM
Number of memory slots	12
Supported memory types	DDR4-SDRAM
Maximum internal memory	2000 GB
Supported memory clock speeds	2666 MHz
Component for	PC
Motherboard chipset	System on Chip
Motherboard form factor	Extended ATX
Motherboard chipset family	AMD
PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of SATA III connectors	10
Number of DIMM slots	16
Supported RDIMM module capacity	8GB, 16GB, 32GB, 64GB
BIOS type	AMI
ACPI version	5.1
BIOS memory size	128 Mbit
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x8 (Gen 3.x) slots	3
Processor socket	Socket SP3
Supported storage drive interfaces	SATA III

Weight and Dimensions

Depth	331 mm
Width	305 mm
