Supermicro H11DSi User Manual

Chapter 4: BIOS (EPYC 7001 Series)
85

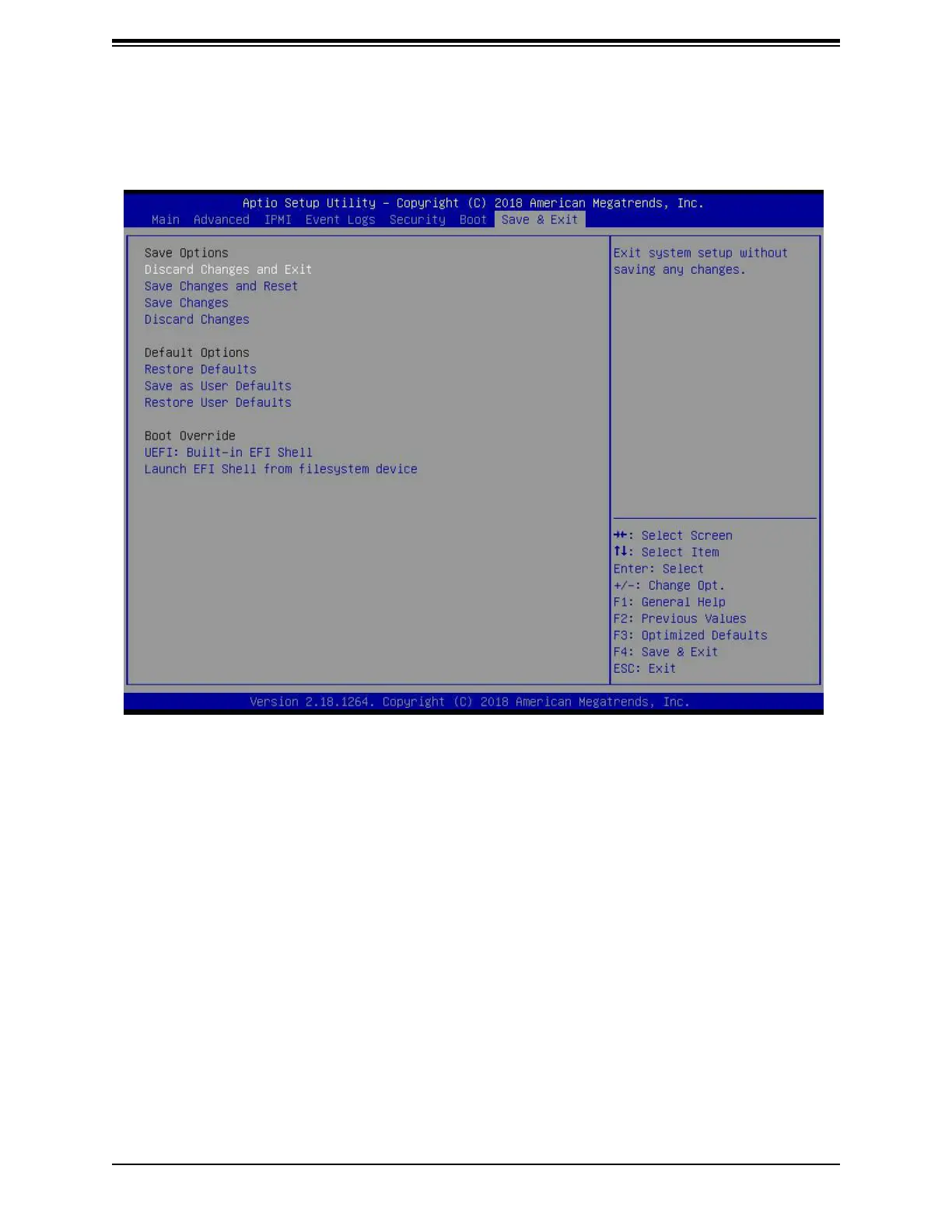

4.8 Save & Exit
Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen.
Discard Changes and Exit
Select this option to quit the BIOS Setup without making any permanent changes to the
system conguration, and reboot the computer. Select Discard Changes and Exit from the
Exit menu and press <Enter>.
Save Changes and Reset
Select this option to reset the system after saving the changes.
Save Changes
After completing the system conguration changes, select this option to save the changes
you have made. This will not reset (reboot) the system.
Discard Changes
Select this option and press <Enter> to discard all the changes and return to the AMI BIOS
utility Program.

Supermicro H11DSi Specifications

General

ECC	Yes
Memory voltage	1.2 V
Memory slots type	DIMM
Number of memory slots	12
Supported memory types	DDR4-SDRAM
Maximum internal memory	2000 GB
Supported memory clock speeds	2666 MHz
Component for	PC
Motherboard chipset	System on Chip
Motherboard form factor	Extended ATX
Motherboard chipset family	AMD
PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of SATA III connectors	10
Number of DIMM slots	16
Supported RDIMM module capacity	8GB, 16GB, 32GB, 64GB
BIOS type	AMI
ACPI version	5.1
BIOS memory size	128 Mbit
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x8 (Gen 3.x) slots	3
Processor socket	Socket SP3
Supported storage drive interfaces	SATA III

Weight and Dimensions

Depth	331 mm
Width	305 mm
