Supermicro H11DSi User Manual

23
Chapter 2: Installation

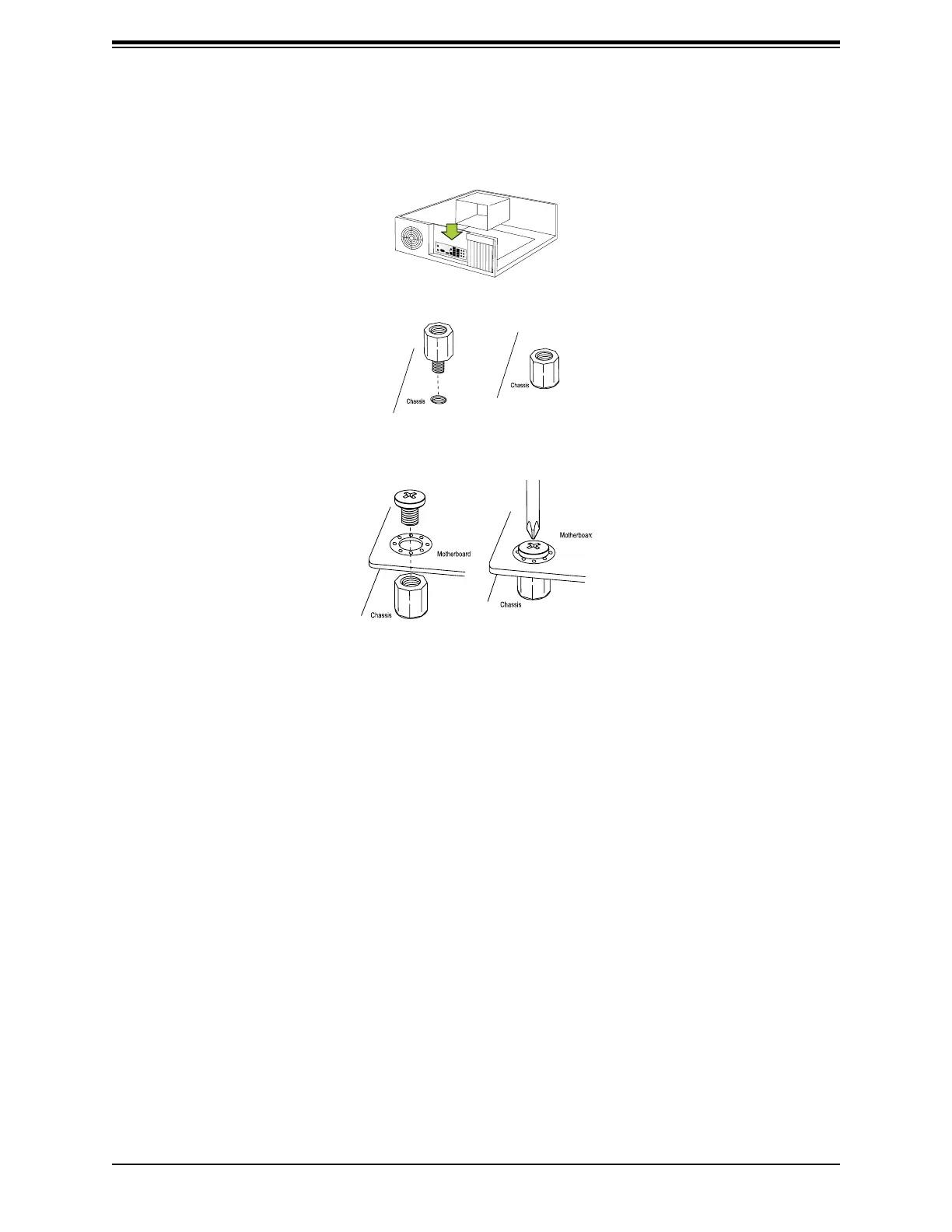

Installing the Motherboard
1. Install the I/O shield into the back of the chassis.
2. Locate the mounting holes on the motherboard. See the previous page for the locations.
3. Locate the matching mounting holes on the chassis. Align the mounting holes on the
motherboard with the mounting holes on the chassis.
4. Install standoffs in the chassis as needed.
5. Install the motherboard into the chassis carefully to avoid damaging other motherboard
components.
6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on
the motherboard and its matching mounting hole on the chassis.
7. Repeat Step 5 to insert #6 screws into all mounting holes.
8. Make sure that the motherboard is securely placed in the chassis.
Note: Images displayed are for illustration only. Your chassis or components might look
different from those shown in this manual.

Supermicro H11DSi Specifications

General

ECC	Yes
Memory voltage	1.2 V
Memory slots type	DIMM
Number of memory slots	12
Supported memory types	DDR4-SDRAM
Maximum internal memory	2000 GB
Supported memory clock speeds	2666 MHz
Component for	PC
Motherboard chipset	System on Chip
Motherboard form factor	Extended ATX
Motherboard chipset family	AMD
PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of SATA III connectors	10
Number of DIMM slots	16
Supported RDIMM module capacity	8GB, 16GB, 32GB, 64GB
BIOS type	AMI
ACPI version	5.1
BIOS memory size	128 Mbit
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x8 (Gen 3.x) slots	3
Processor socket	Socket SP3
Supported storage drive interfaces	SATA III

Weight and Dimensions

Depth	331 mm
Width	305 mm
