4-7
Chapter 4: Installing the Switch
Task 4: Verify Switch Operation
Verify basic switch operation by checking the system LEDs (Figure 4-3).
When operating normally, the PSU1/PSU2, Diagnostic, and Fan LEDs should all be on
green. If any of the LEDs are on amber, see Section 8-1: "Diagnosing LED Indicators"
on page 8-1.
Go to the section Section 7-1: "Understanding the System Status LEDs" on page 7-1.

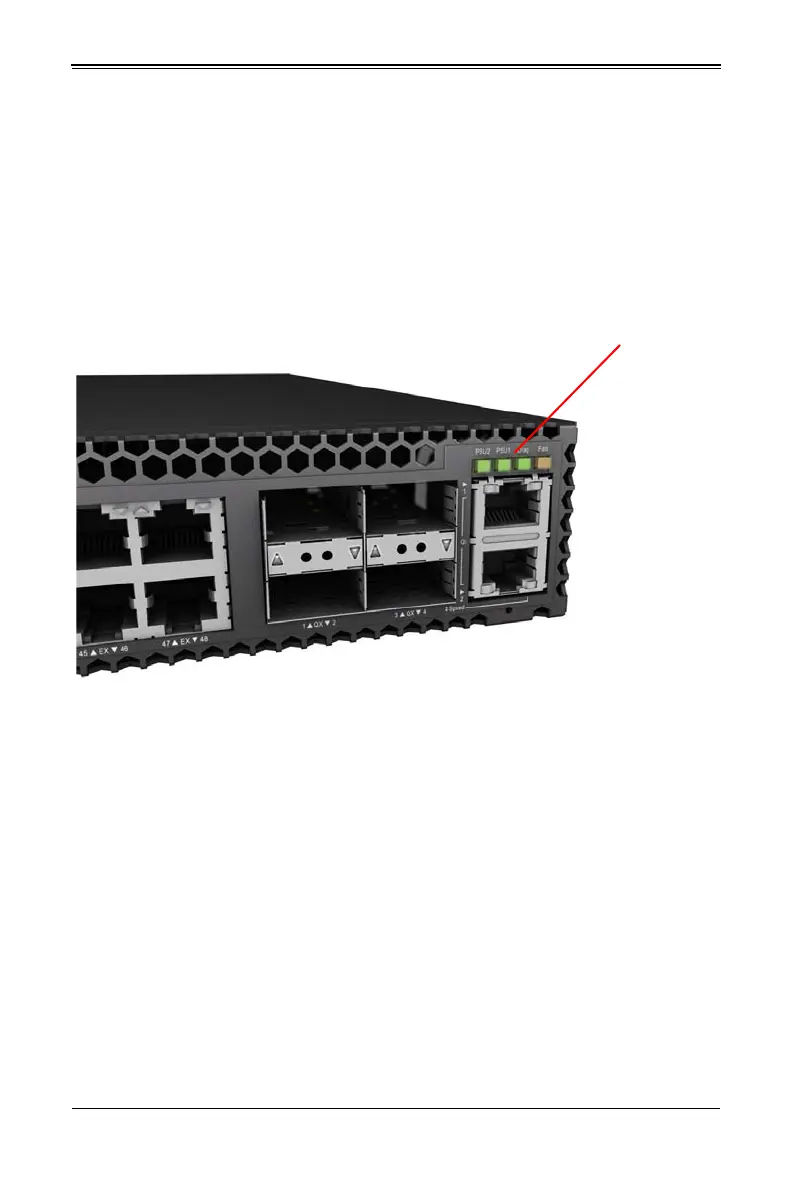

Figure 4-3. System LEDs
