SuperServer E200-9A User's Manual
Installing Mounting Brackets
The chassis includes mounting brackets that allow it to be mounted in any convenient space
in the work environment.
1. Install the brackets, using two screws through the holes in each bracket to secure the
bracket to the chassis.
2. Secure the brackets to the surface where you want the server to be mounted.

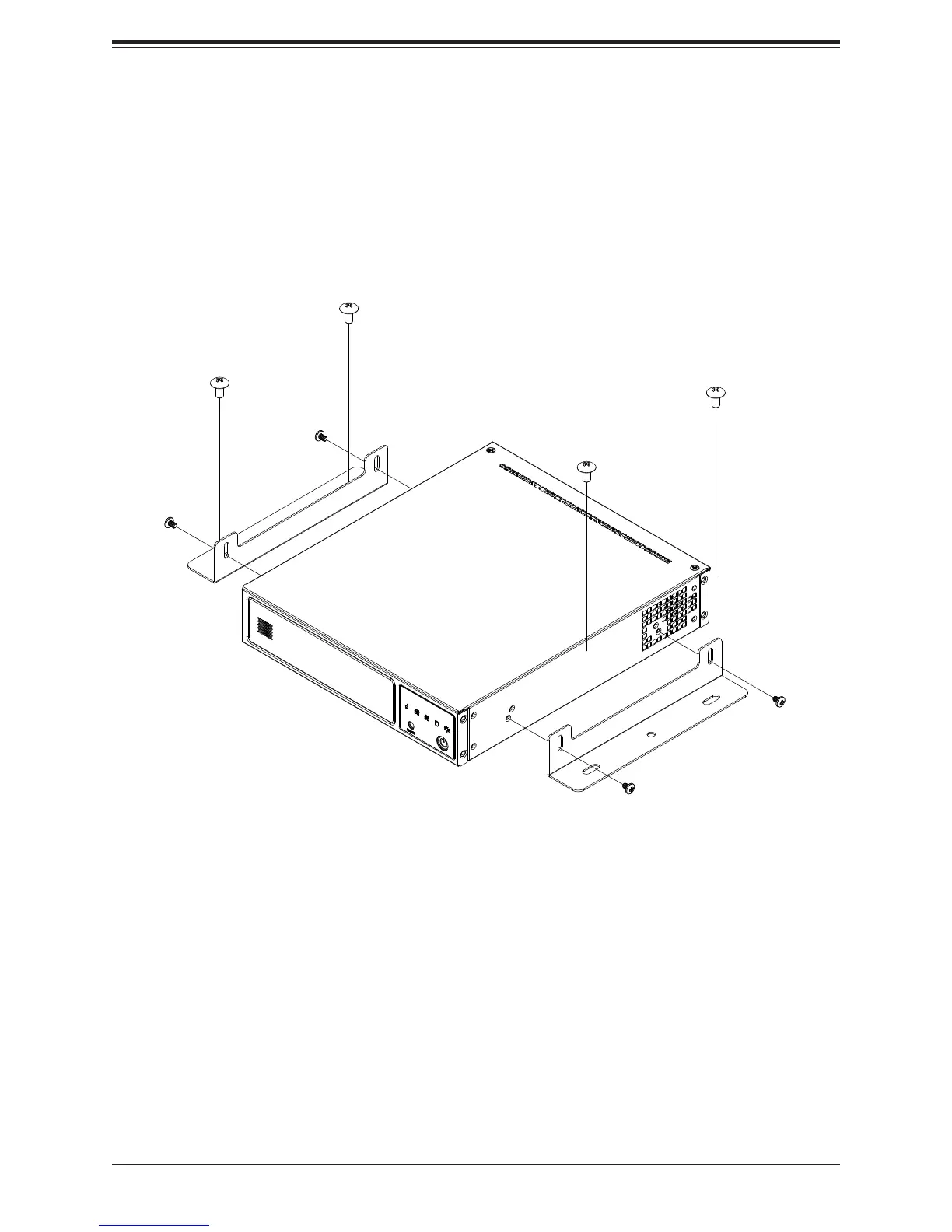

Figure 1-5. Installing Mounting Brackets
(Brackets extending out from the chassis)
