Chapter 1: Introduction
1.3 Chassis Features
The SC101F is a compact embedded mini-ITX 1U chassis.
Front Features
The front of the chassis includes the control panel.

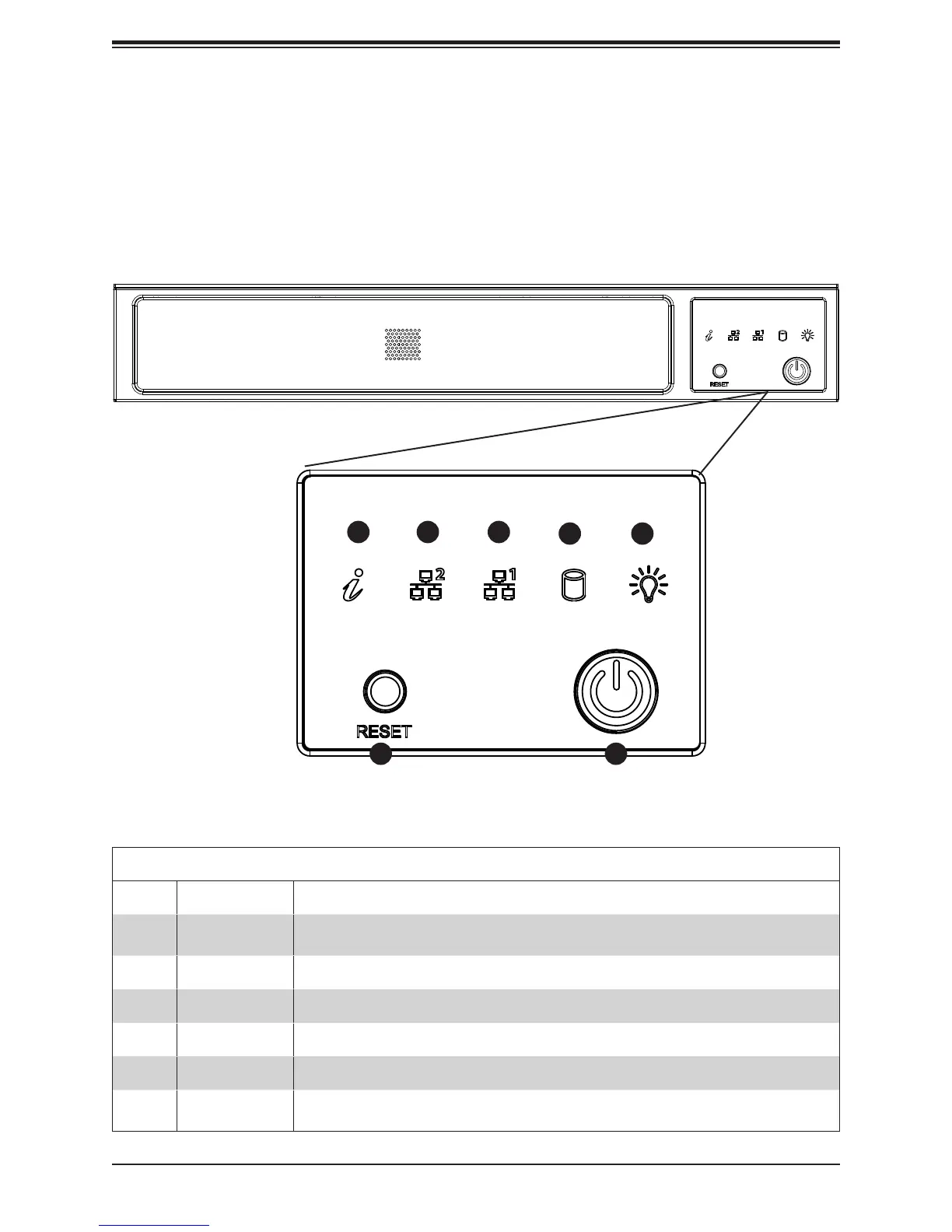

Figure 1-1. Chassis Front and Control Panel
Control Panel Features
Item Features Description
1 Power button
The main power switch applies or removes primary power from the power supply to
the server but maintains standby power.
2 Reset button Resets the system.
3 Information LED Alerts operator to several states, as noted in the table below.
4 and 5 NIC LED 
6 HDD LED 
7 Power LED
Indicates power is being supplied to the system power supply units. This LED is
illuminated when the system is operating normally.
6
543
7
12
