SuperServer E200-9A User's Manual
3.3 Ports

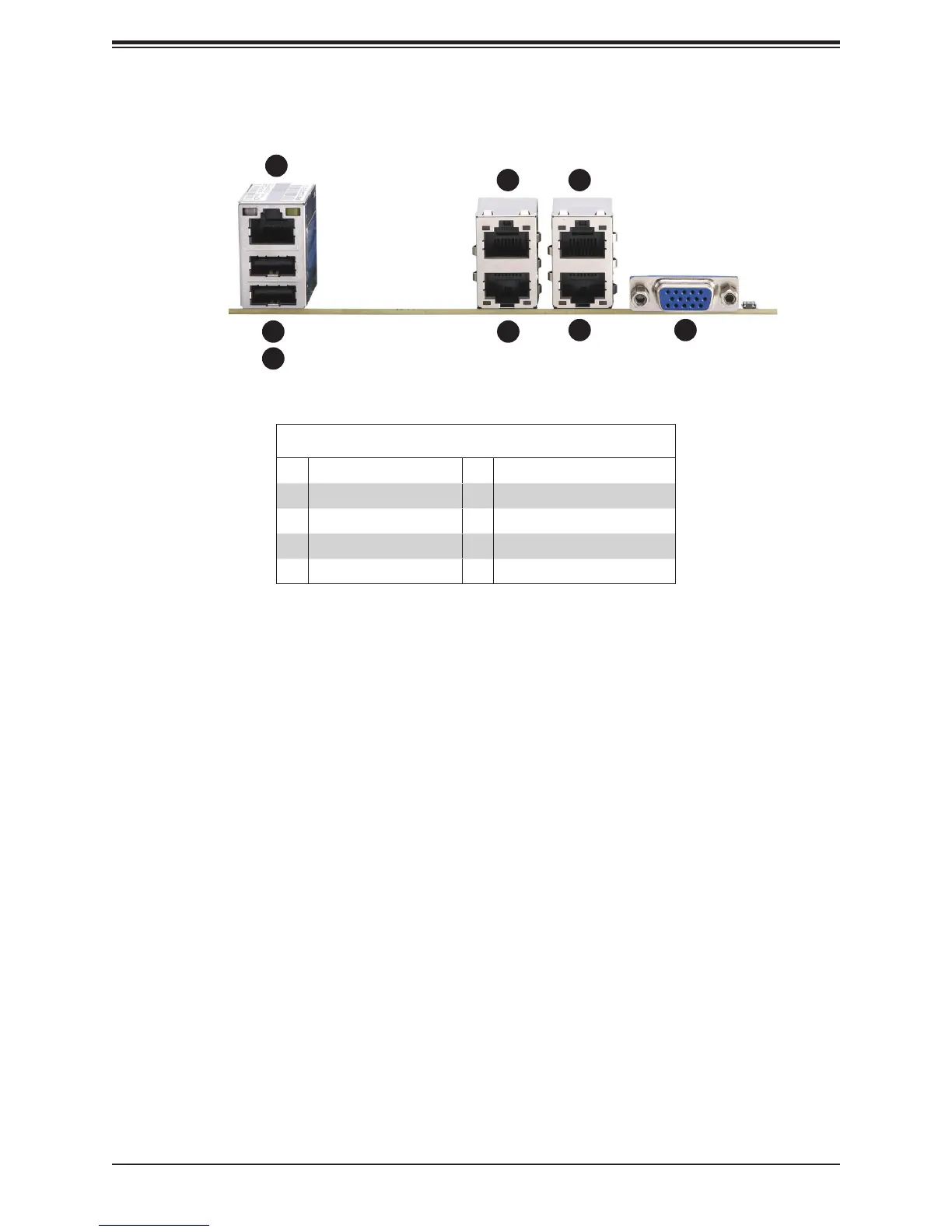

Figure 3-2. Rear Input/Output Ports
Ethernet Ports
Four Gigabit Ethernet ports (LAN1–4) and an IPMI LAN port provide network connections.
These ports accept RJ45 type cables.
Universal Serial Bus (USB) Ports
Two USB 2.0 ports (USB0/1) are located on the I/O back panel.
1
87
6
5
4
3
2
Rear I/O Ports
# Description # Description
1. IPMI LAN 5. LAN1
2. USB1 6. LAN4
3. USB0 7. LAN2
4. LAN3 8. VGA
