25
Chapter 3: Maintenance and Component Installation
3.3 Motherboard Components
Note: Check the Supermicro website for recommended memory modules.
Important: Exercise extreme care when installing or removing DIMM modules to prevent
any possible damage.
Attention: This system requires the installation of heat spreaders to the memory RAM.

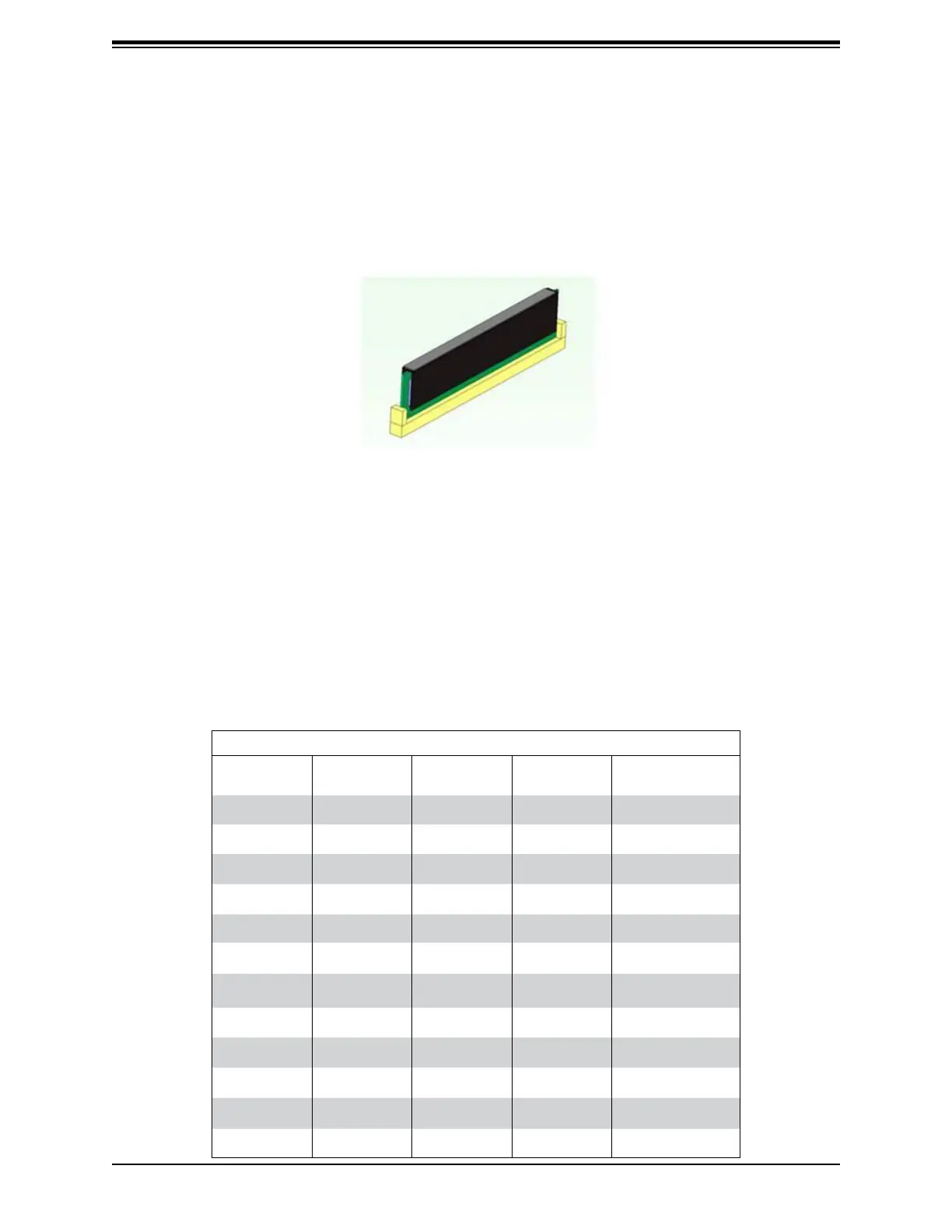

Memory Support
The A2SDi-4C-HLN4F motherboard supports up to 256GB of ECC/non-ECC RDIMM or
512GB of ECC LRDIMM DDR4 memory with speeds of up to 2400MHz in four memory slots.
Populating these DIMM slots with memory modules of the same type and size will result in
interleaved memory, which will improve memory performance.
Note: Check the Supermicro website for recommended memory modules.
DIMM Module Population Conguration
For optimal memory performance, follow the table below when populating memory.
Memory Population (Balanced)
DIMMA1 DIMMB1 DIMMD1 DIMME1
Total System
Memory
4GB 4GB 8GB
4GB 4GB 4GB 4GB 16GB
8GB 8GB 16GB
8GB 8GB 8GB 8GB 32GB
16GB 16GB 32GB
16GB 16GB 16GB 16GB 64GB
32GB 32GB 64GB
32GB 32GB 32GB 32GB 128GB
64GB 64GB 128GB
64GB 64GB 64GB 64GB 256GB
128GB 128GB 256GB
128GB 128GB 128GB 128GB 512GB
