Supermicro SuperServer E302-9A - Chassis Components; Installing the Storage Drive

29
Chapter 3: Maintenance and Component Installation
3.4 Chassis Components
Installing the Storage Drive
The E302iL can accommodate two 2.5" drives of 7mm height or one 2.5" drive of 15mm
height, installed to a mounting tray inside the chassis.

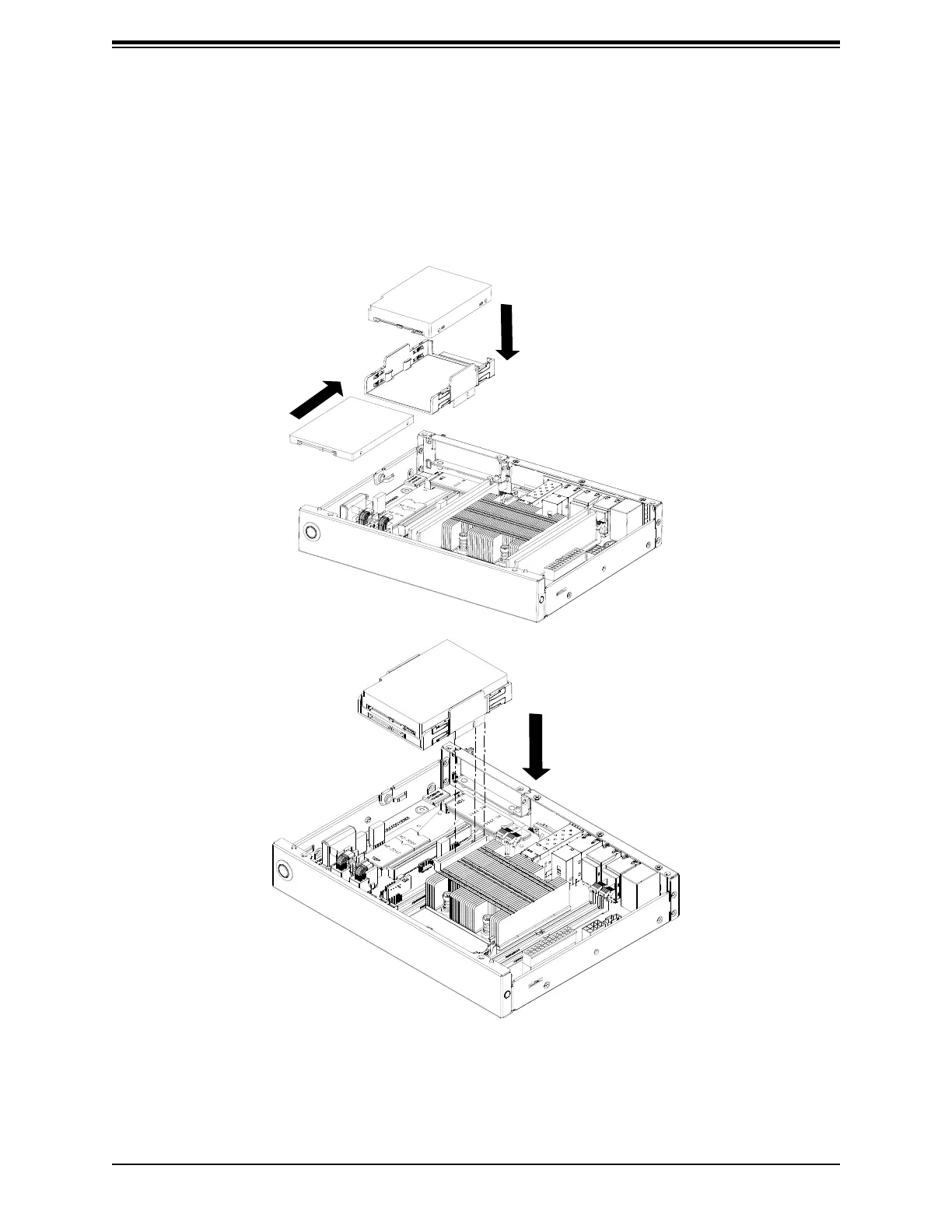

Figure 3-4. Preparing to Install the Hard Drive
