SuperServer E302-9A User's Manual
Installing the Hard Drive
The motherboard should be installed before installing the drive(s).
1. Make sure there is no power to the system as described in section 3.1 and remove the
chassis cover.
2. See section 3.2 for instructions on how to remove the top cover.
3. Lift the hard drive tray from the chassis as shown in Figure 3-4.
4. Place one 7mm 2.5" drives directly into the tray and secure it to the tray with the
5.

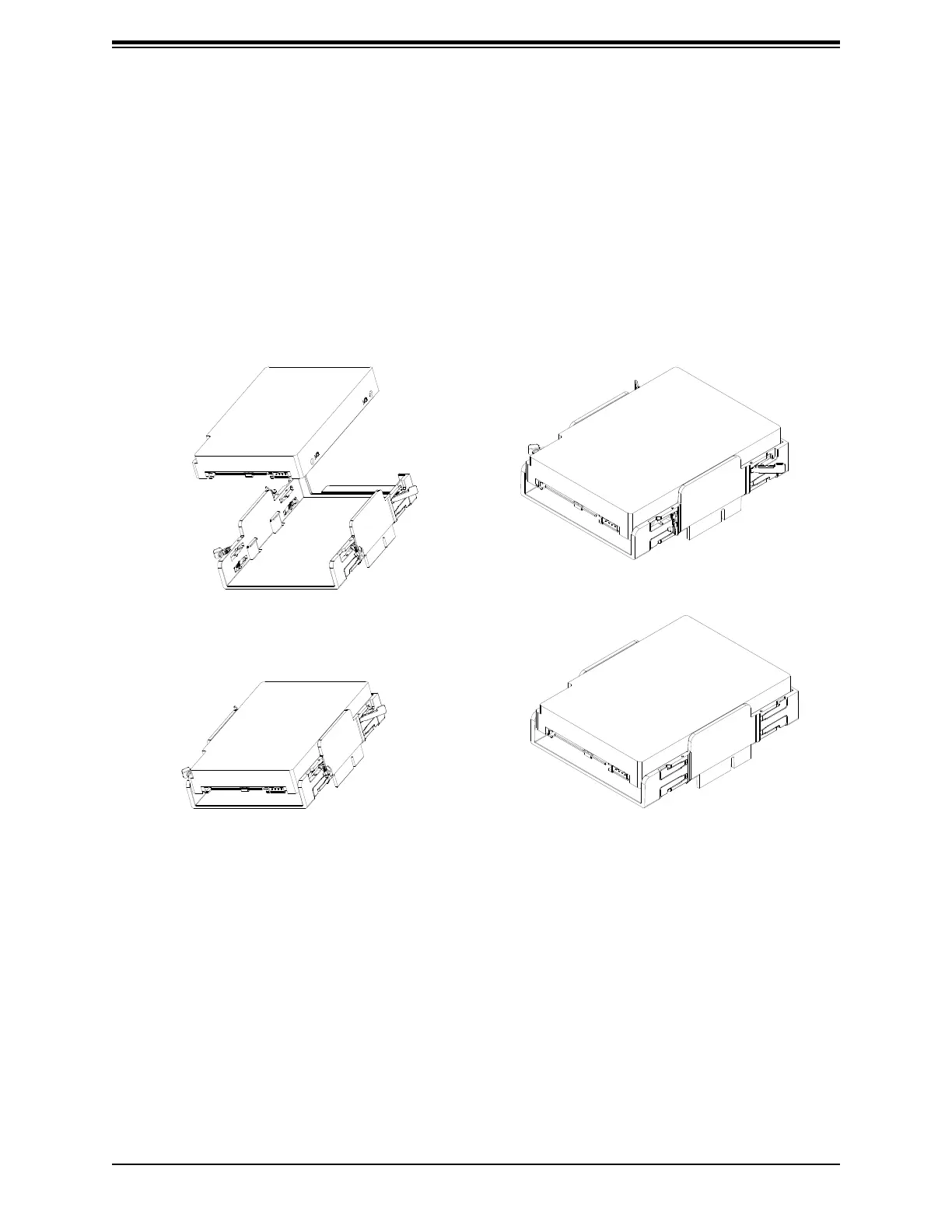

Figure 3-5. Installing 15 mm 2.5" Hard Drives
