Chapter 2: Server Installation

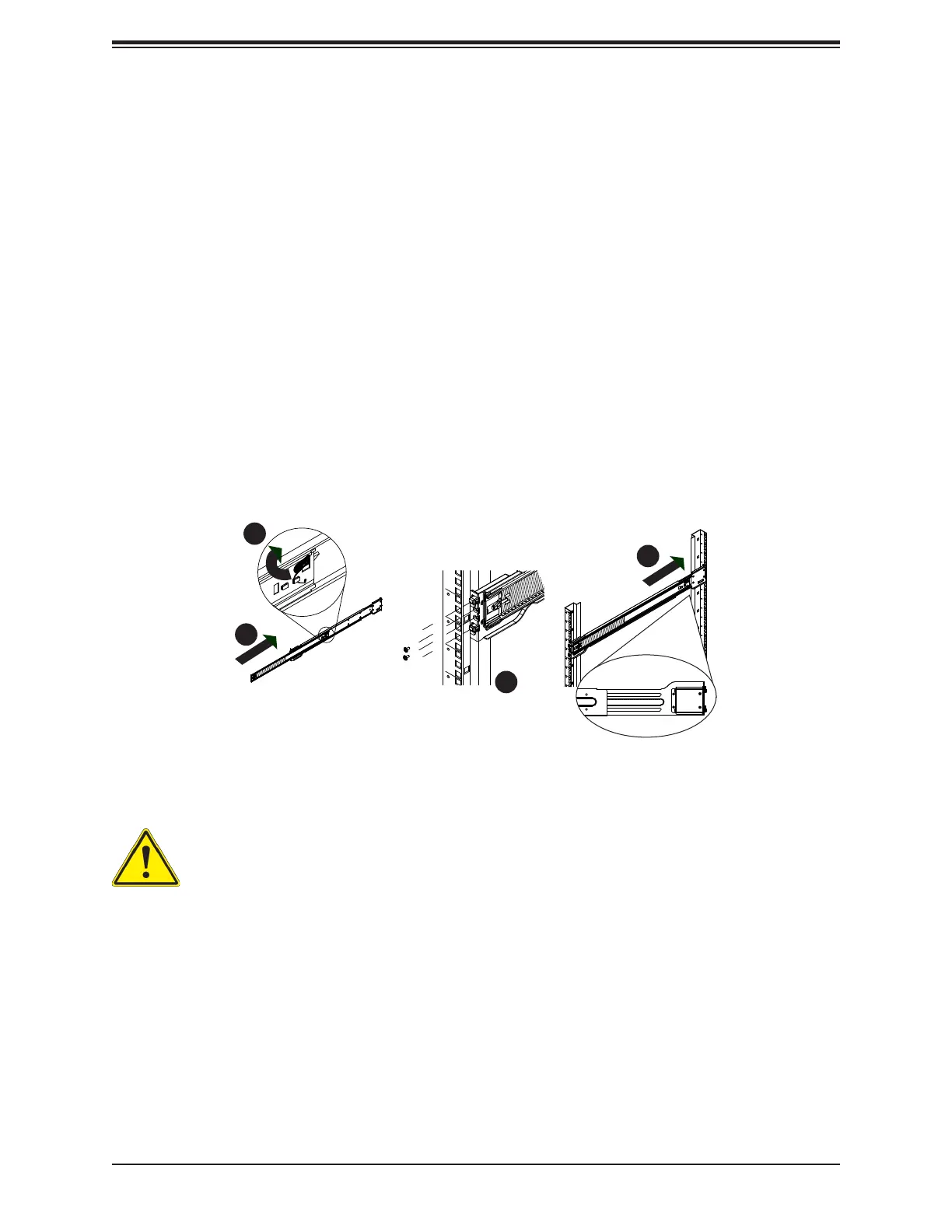

Figure 2-3. Extending and Mounting the Outer Rails
21D01
L-min=676.00(26.61")(outer rail)
Installing the Outer Rails onto the Rack
Installing the Outer Rails
1. Press upward on the locking tab at the rear end of the middle rail.
2. Push the middle rail back into the outer rail.
3. Hang the hooks on the front of the outer rail onto the square holes on the front of the
rack. If desired, use screws to secure the outer rails to the rack.
4.
the rack.
5. Hang the hooks of the rear section of the outer rail onto the square holes on the rear of
the rack. Take care that the proper holes are used so the rails are level. If desired, use
screws to secure the rear of the outer rail to the rear of the rack.
6. Repeat for the other outer rail.
1
3
2
4
Stability hazard. The rack stabilizing mechanism must be in place, or the rack must
rack can cause the rack to tip over.
