Supermicro SuperServer SYS-421GE-TNRT - Page 45

45
Chapter 3: Maintenance and Component Installation

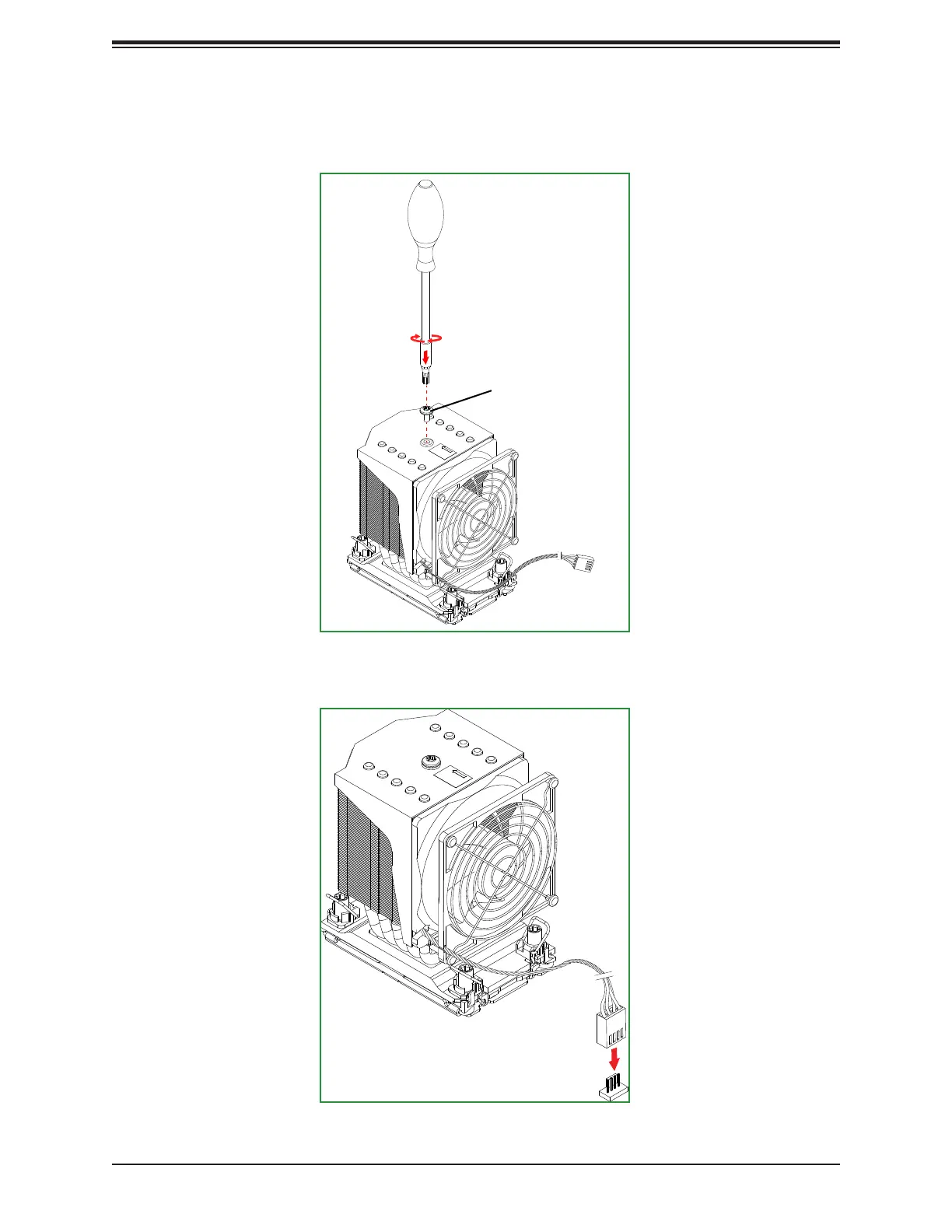

3. Insert the torx screw into the screw hole on top of the heatsink and turn it clockwise to
tighten the screw.
4. Connect the fan power connector to a 4-pin fan header on the motherboard.
