Super X1
1DPH-i/X1
1DPH-T/X1
1DPH-Tq User's Manual
182

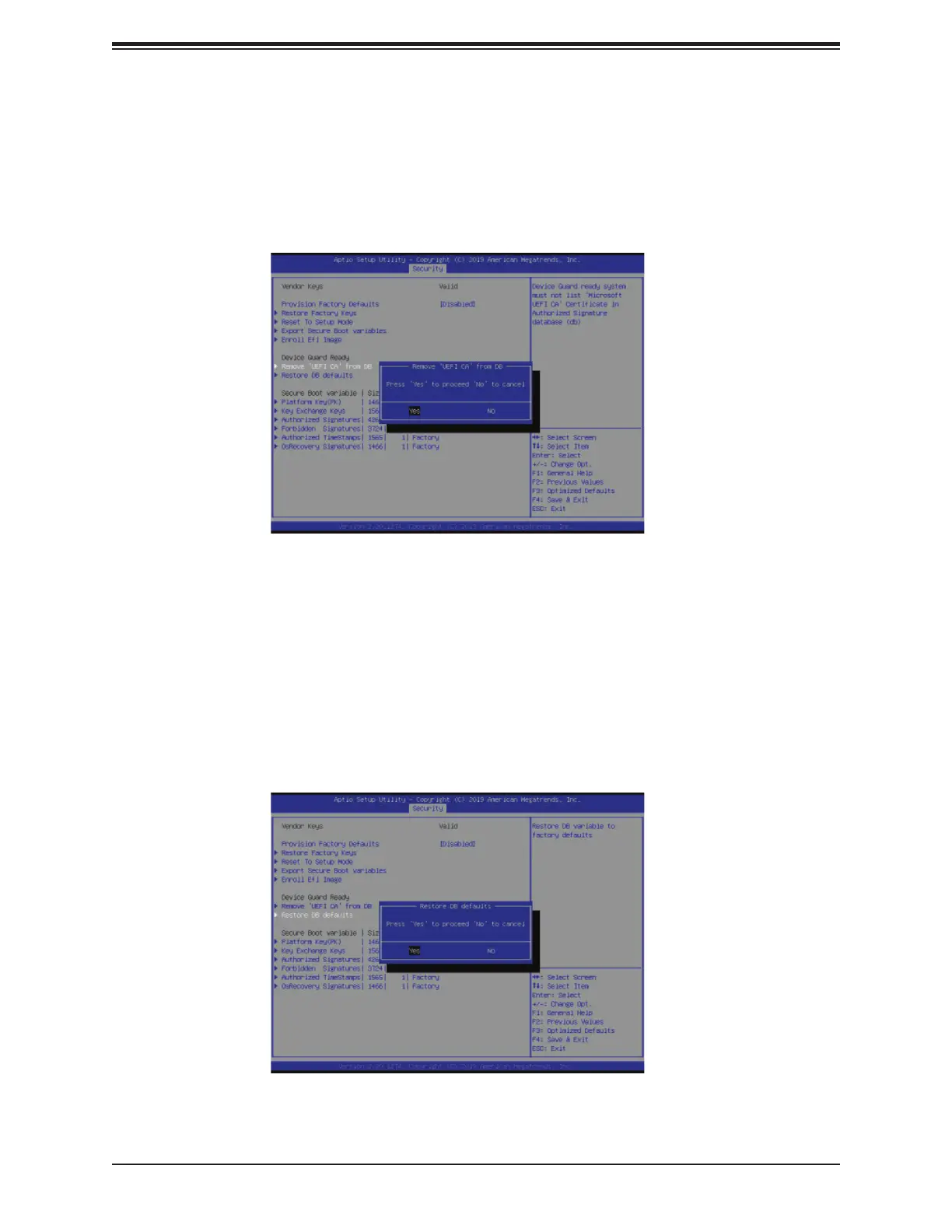

Remove 'UEFI CA' from DB (available when the system is not in Device
Guard Ready)
Select and press Y
es to remove Microsoft UEFI CA
certi
fi
cate from the DB. The options
are
Ye
s
and No.
Restore DB defaults
Select and press Y
es to restore the DB variables to factory defaults. The options are
Ye
s
and No.
181
183
Table of Contents
default chapter
6
Table of Contents
6
Chapter 1 Introduction
8
Checklist
8
Processor and Chipset Overview
18
Special Features
19
System Health Monitoring
19
ACPI Features
20
Power Supply
20
Advanced Power Management
20
Intel® Quickassist Technology (for the X11DPH-Tq Only)
21
Intel® Optane DC Persistent Memory Overview
21
Chapter 2 Installation
22
Static-Sensitive Devices
22
Motherboard Installation
23
Processor and Heatsink Installation
25
Memory Support and Installation
33
Rear I/O Ports
39
Front Control Panel
44
Connectors
49
Jumper Settings
59
LED Indicators
62
Chapter 3 Troubleshooting
64
Troubleshooting Procedures
64
Technical Support Procedures
68
Frequently Asked Questions
69
Battery Removal and Installation
70
Returning Merchandise for Service
71
Chapter 4 UEFI BIOS
72
Introduction
72
Main Setup
73
Advanced Setup Confi Gurations
75
Event Logs
124
Ipmi
126
Security Settings
129
Boot Settings
133
Save & Exit
136
Appendix A BIOS Codes
138
BIOS Error POST (Beep) Codes
138
Additional BIOS POST Codes
139
Appendix B Software Installation
140
Installing Software Programs
140
Superdoctor 5
141
Appendix C Standardized Warning Statements
142
Appendix D UEFI BIOS Recovery
145
Appendix E Confi Guring VROC RAID Settings
150
All Intel® VMD Controllers Features
150
Confi Guring RAID Settings
157
Use of Journaling Drive
170
Boot Mode Select Feature
174
Secure Boot/ Secure Boot Mode/ CSM Support Features
175
Secure Boot Settings
176
Key Management Settings
179
Pcie/Pci/Pnp Features
196
Confi Guring Iscsi Settings
199
Appendix H Confi Guring Network Interface Card (NIC) Settings
219
Network Interface Card (NIC) Settings
219
