Supermicro X11DPH-T User Manual

50
Super X11DPH-i/X11DPH-T/X11DPH-Tq User's Manual
2

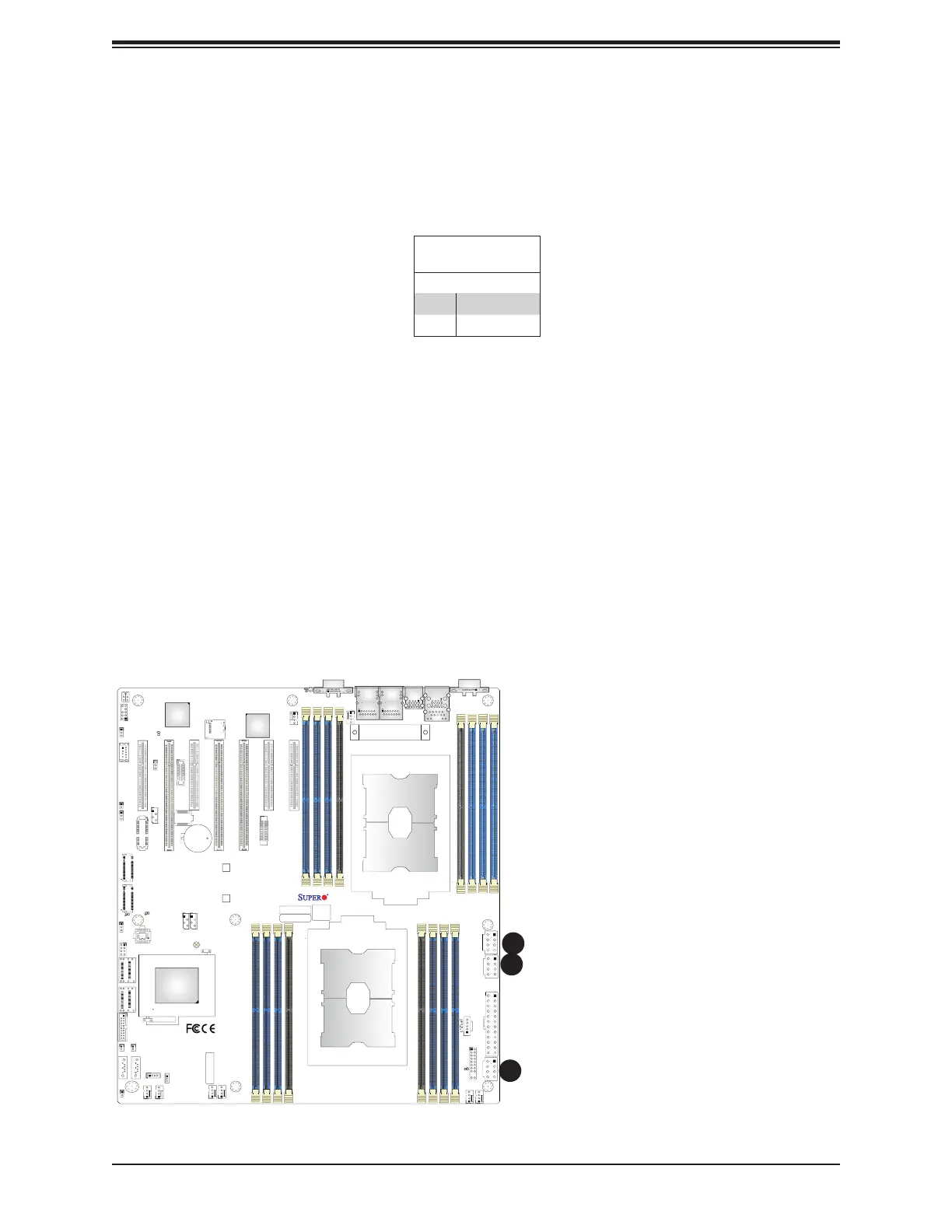

12V 8-pin CPU Power Connectors
JPWR1, JPWR2 and JPWR4 are 8-pin 12V DC power input connectors designated for CPU
use. These power connectors can also be used as alternative single power source for a special
enclosure when the 24-pin ATX power is not in use. Refer to the table below for pin defi nitions.
12V 8-pin Power
Pin Defi nitions
Pin# Defi nition
1 - 4 Ground
5 - 8 +12V
1. JPWR1
2. JPWR2
3. JPWR4
1
IPMI CODE
+
BIOS LICENSE
MAC CODE
X11DPH-i
REV: 1.10
BAR CODE
LEDM1
JUIDB1
JHSSI
JPWR4
JPWR2
JPWR1
JSD1
JSD2
JSDCARD1
SATA2
SATA1
MH4
MH11
T-SGPIO1
JNCSI
JRK1
JTPM1
JPWR3
JF1
JD1
JL1
JSTBY1
BT1
JPME2
JWD1
JIPMB1
LE1
LE4
LE3
JBT1
FAN6
FAN5
FANB
FANA
FAN4 FA N3
FAN2
FAN1
ASPEED
AST2500
LAN
CTRL
Intel
PCH
LE2
P2-DIMMF1 P2-DIMME1
P2-DIMMD1
P2-DIMMD2
P1-DIMMC1 P1-DIMMB1
P1-DIMMA1 P1-DIMMA2
P2-DIMMA2 P2-DIMMA1 P2-DIMMB1 P2-DIMMC1
P1-DIMMD2 P1-DIMMD1 P1-DIMME1 P1-DIMMF1
Battery
BMC
BIOS
M.2-C2
M.2-C1
CPU1-HSSI GPIO
USB 4/5(3.0)
USB 6 (3.0)
S-SATA1
S-SATA0
I- SATA 4~ 7
I- SATA 0~ 3
CPU1 SLOT1 PCI-E 3.0 x8
CPU2 SLOT2 PCI-E 3.0 x16
CPU1 SLOT3 PCI-E 3.0 x8
CPU2 SLOT4 PCI-E 3.0 x16
CPU2 SLOT5 PCI-E 3.0 x16
CPU1 SLOT6 PCI-E 3.0 x8
CPU1 SLOT7 PCI-E 3.0 x8
VGA
LAN2
LAN1
USB 2/3(3.0)
USB 0/1(3.0)
IPMI_LAN
COM1
JP4
CPU2
CPU1
3
