Super X11DPU User's Manual

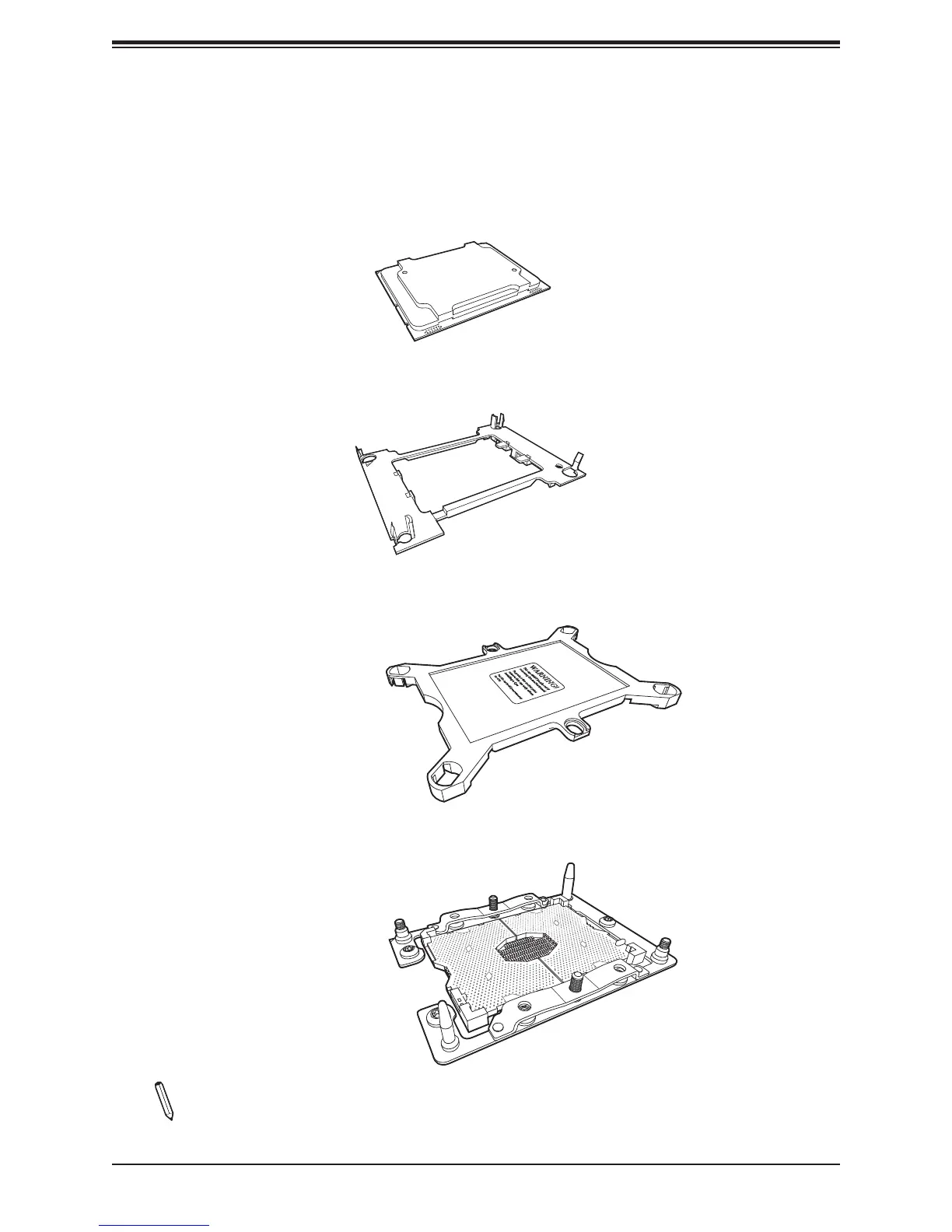

Overview of the Processor Socket Assembly
The processor socket assembly contains 1) the Intel 81xx/61xx/51xx/41xx/31xx processor,
2) the narrow processor clip, 3) the dust cover, and 4) the CPU socket.
3. Dust Cover
4. CPU Socket
1. The 81xx/61xx/51xx/41xx/31xx
Processor
Note: Be sure to cover the CPU socket with the dust cover when the CPU is not in-
stalled.
2. Narrow processor clip (the plastic processor package carrier used for the CPU)
(The 81xx/61xx/51xx/41xx/31xx Processor)
(for the non-F Model)
