Supermicro X12STL-IF User Manual

32
Super X12STL-IF User's Manual
C
A
PRESS FIT
A
BAR CODE
REV:1.01
X12STL-IF
DESIGNED IN USA
BIOS LICENSE
JD1
MH4
MH2
JPL1
JL1
JPME2
I-SATA5
JSD1
I-SATA4
BT1
JSMB1
JPV1
MH1
FAN1
FAN2
JPWR1
MH3
JF1
JPI2C1
FAN3
JUIDB1
JMD1_SRW1
JTPM1
LED1
JBT1
JMD1
JPCIE1
JRF1
FANA
JPG1
JCPLD1
JVRM1
JPL2
JWD1
LED3
LED2
LEDM1
CPU
DIMMB1
CPU SLOT7 PCI-E 4.0 X16
DIMMA1
OH
NIC1
VGA
X
PWR
HDD LED
PWR LED
RST
FF
I-SATA0-3
LAN1/2
JF1:
NIC2
ON
USB 6/7(3.2)
USB 2/3
COM
USB 0/1
USB 4/5(3.2)
BMC_LAN
UID
JSD2

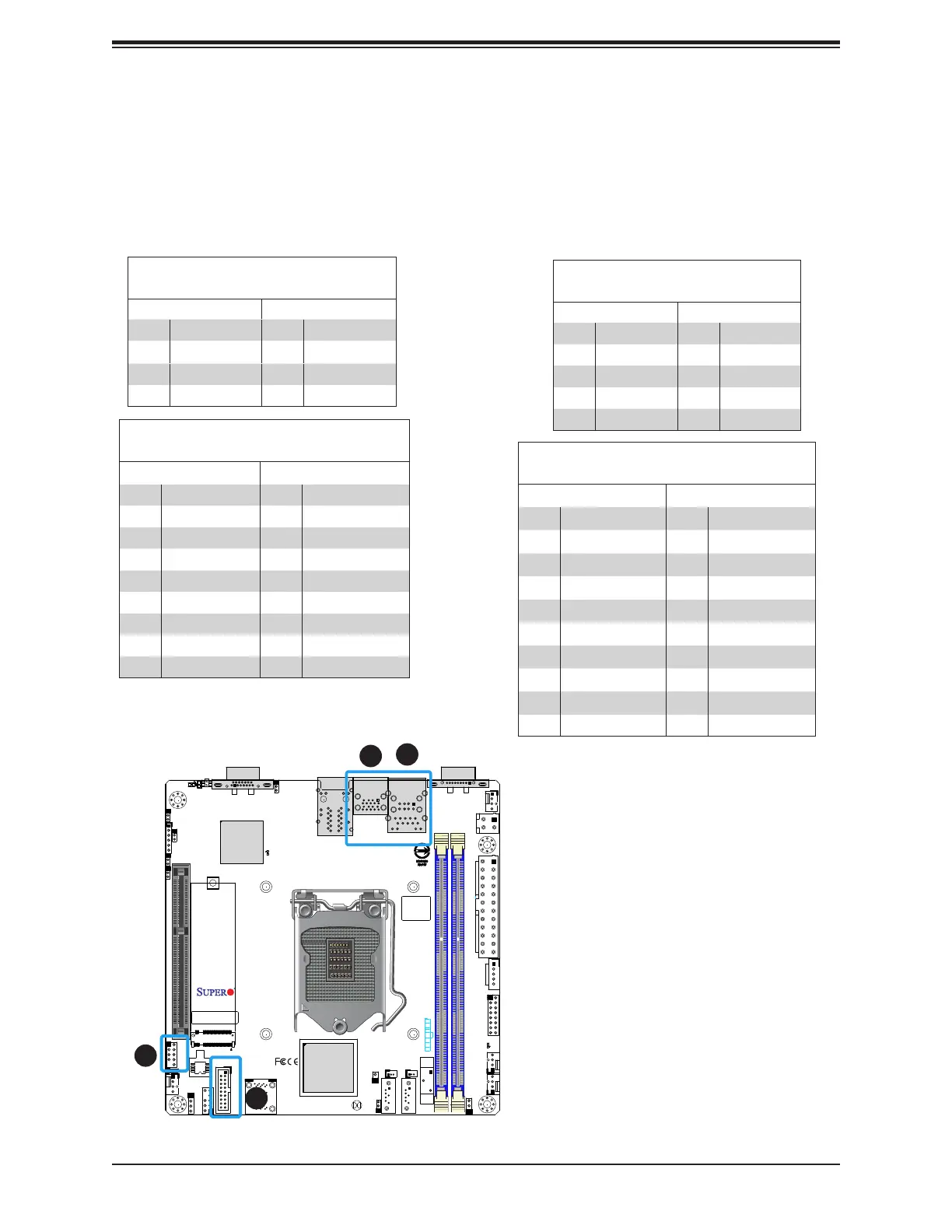

Universal Serial Bus (USB) Ports
There are two USB 2.0 ports (USB0/1) on the I/O back panel and two USB 2.0 headers
(USB2/3) on the motherboard. The motherboard also has two USB 3.2 ports (USB4/5) on
the I/O back panel and one front access USB 3.2 header (USB6/7). The onboard headers
can be used to provide front side USB access with a cable (not included).
1. USB0/1
2. USB2/3
3. USB4/5
4. USB6/7
1
2
4
3
Front Panel USB2/3 (2.0) Header
Pin Denitions
Pin# Denition Pin# Denition
1 +5V 2 +5V
3 USB_PN2 4 USB_PN3
5 USB_PP2 6 USB_PP3
7 Ground 8 Ground
9 Key 10 Ground
Front Panel USB6/7 (3.2 Gen 1) Header
Pin Denitions
Pin# Denition Pin# Denition
1
VBUS 19 Power
2
Stda_SSRX- 18 USB3_RN
3
Stda_SSRX+ 17 USB3_RP
4
GND 16 GND
5
Stda_SSTX- 15 USB3_TN
6
Stda_SSTX+ 14 USB3_TP
7
GND 13 GND
8
D- 12 USB_N
9
D+ 11 USB_P
10 GND x
Back Panel USB4/5 (3.2 Gen 1)
Pin Denitions
Pin# Denition Pin# Denition
A1 VBUS B1 Power
A2 D- B2 USB_N
A3 D+ B3 USB_P
A4 GND B4 GND
A5 Stda_SSRX- B5 USB3_RN
A6 Stda_SSRX+ B6 USB3_RP
A7 GND B7 GND
A8 Stda_SSTX- B8 USB3_TN
A9 Stda_SSTX+ B9 USB3_TP
Back Panel USB0/1 (2.0)
Pin Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_N 6 USB_N
3 USB_P 7 USB_P
4 Ground 8 Ground
