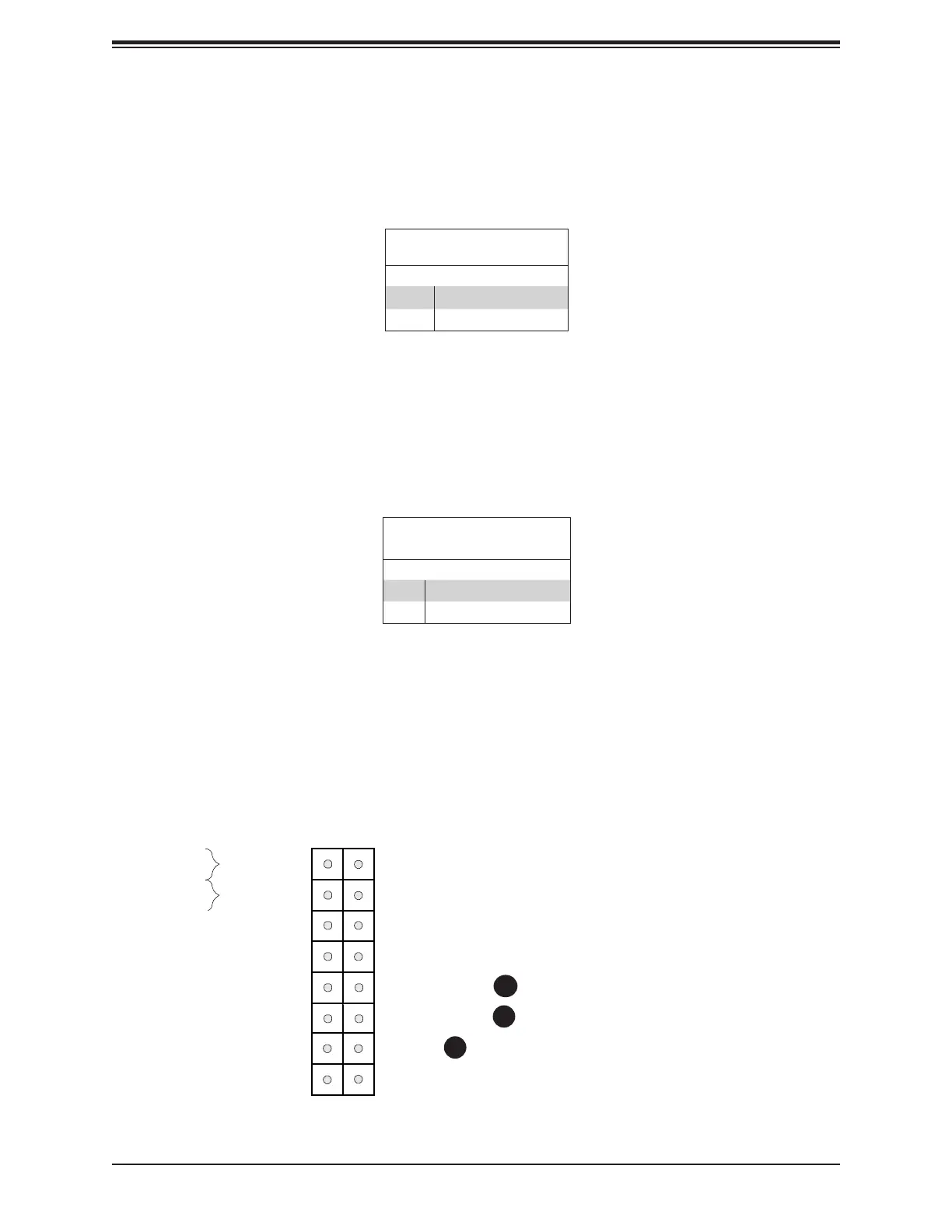

OH/Fan Fail/PWR Fail LED
16
NIC1 Activity LED
15
HDD LED
PWR LED
3.3V Stby
3.3V Stby
UID
NIC2 Activity LED
3.3V
3.3V Stby
Power Button
Reset Button
Reset
PWR
Ground
Ground
1 2
Power Fail LED
3.3V
1. NIC1 Activity LED
2. NIC2 Activity LED
3. HDD LED
1
2
NIC1/NIC2 (LAN1/LAN2)
The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins
11 and 12 of JF1, and LAN port 2 is on pins 9 and 10. Attach the NIC LED cables here to
display network activity. Refer to the table below for pin denitions.
LAN1/LAN2 LED
Pin Denitions (JF1)
Pin# Denition
9/11 3.3V Stby
10/12 NIC Activity LED
3
HDD LED
The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable to pin 14 to
show hard drive activity status. Refer to the table below for pin denitions.
HDD LED
Pin Denitions (JF1)
Pins Denition
13 3.3V
14 HDD LED
