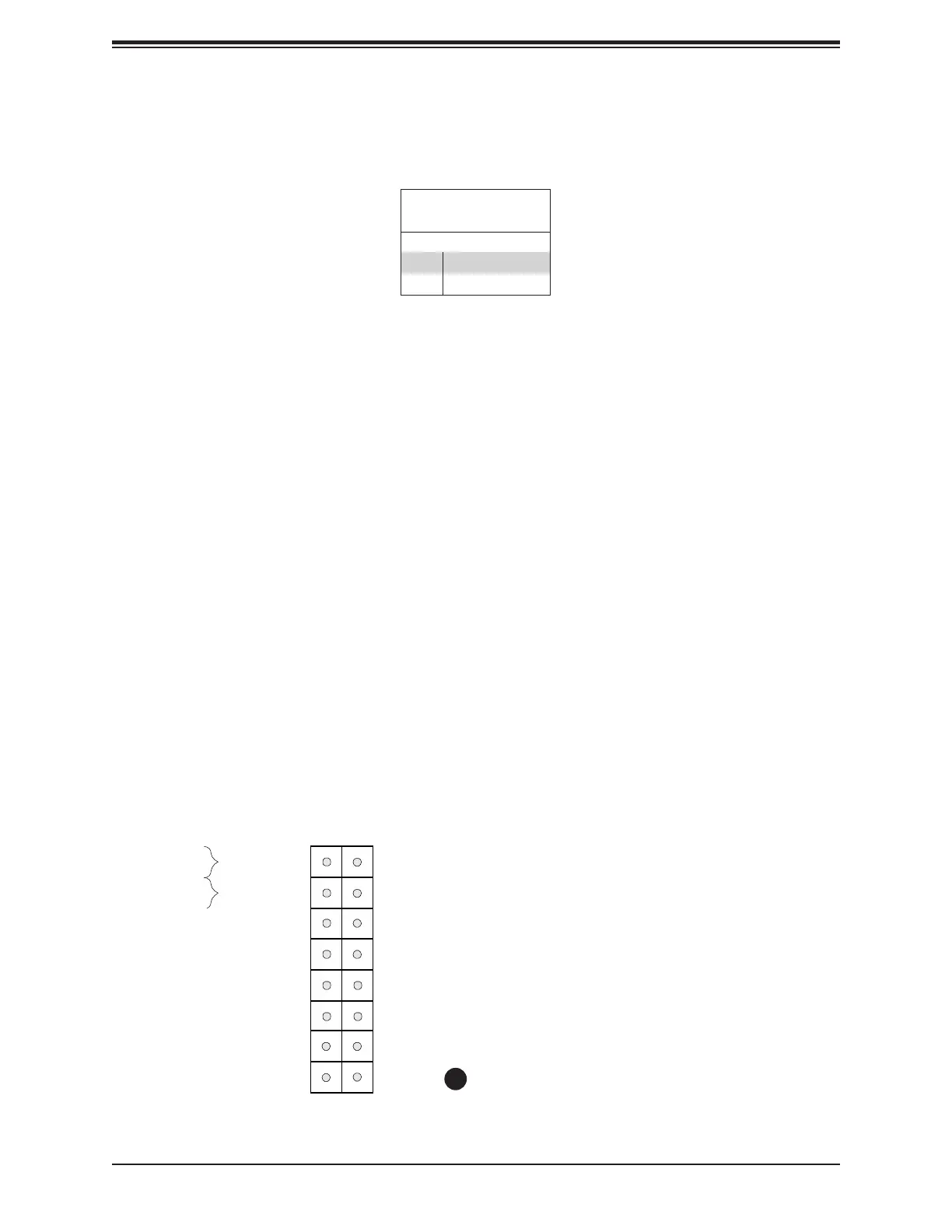

Chapter 2: Installation
OH/Fan Fail/PWR Fail LED
16
NIC1 Activity LED
15
HDD LED
PWR LED
3.3V Stby
3.3V Stby
UID
NIC2 Activity LED
3.3V
3.3V Stby
Power Button
Reset Button
Reset
PWR
Ground
Ground
1 2
Power Fail LED
3.3V
1. Power LED
1
Power LED
The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below
for pin denitions.
Power LED
Pin Denitions (JF1)
Pins Denition
15 +3.3V Stby
16 PWR LED
