Supermicro X12STL-IF User Manual

42
Super X12STL-IF User's Manual
C
A
PRESS FIT
A
BAR CODE
REV:1.01
X12STL-IF
DESIGNED IN USA
BIOS LICENSE
JD1
MH4
MH2
JPL1
JL1
JPME2
I-SATA5
JSD1
I-SATA4
BT1
JSMB1
JPV1
MH1
FAN1
FAN2
JPWR1
MH3
JF1
JPI2C1
FAN3
JUIDB1
JMD1_SRW1
JTPM1
LED1
JBT1
JMD1
JPCIE1
JRF1
FANA
JPG1
JCPLD1
JVRM1
JPL2
JWD1
LED3
LED2
LEDM1
CPU
DIMMB1
CPU SLOT7 PCI-E 4.0 X16
DIMMA1
OH
NIC1
VGA
X
PWR
HDD LED
PWR LED
RST
FF
I-SATA0-3
LAN1/2
JF1:
NIC2
ON
USB 6/7(3.2)
USB 2/3
COM
USB 0/1
USB 4/5(3.2)
BMC_LAN
UID
JSD2

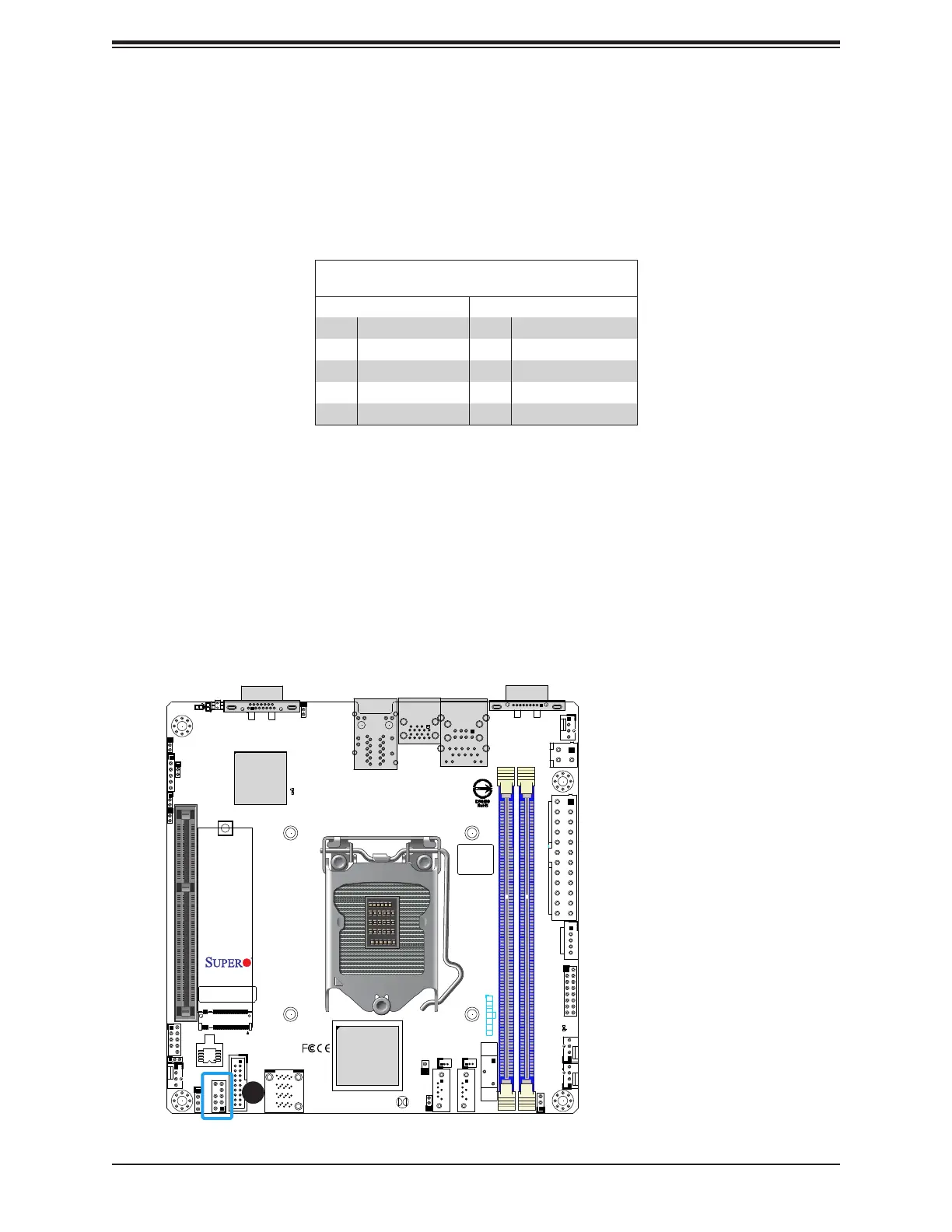

TPM/Port 80 Header
A Trusted Platform Module (TPM)/Port 80 header is located at JTPM1 to provide TPM support
and Port 80 connection. Use this header to enhance system performance and data security.
Refer to the table below for pin denitions. Please go to the following link for more information
on the TPM: http://www.supermicro.com/manuals/other/TPM.pdf.
Trusted Platform Module/Port80 Header
Pin Denitions
Pin# Denition Pin# Denition
1 P3V3 2 SPI_TPM_CS_N
3 TPM_RST_N 4 SPI_TPM_MISO
5 SPI_TPM_CLK 6 GND
7 SPI_TPM_MOSI 8
9 P3V3_AUX 10 IRQ_JTPM1_SPI_N
1
1. TPM/Port 80 Module
