Supermicro X9DRD-LF User Manual

2-8
X9DRD-iF/LF Motherboard User’s Manual
OPEN 1st
OPEN 1st

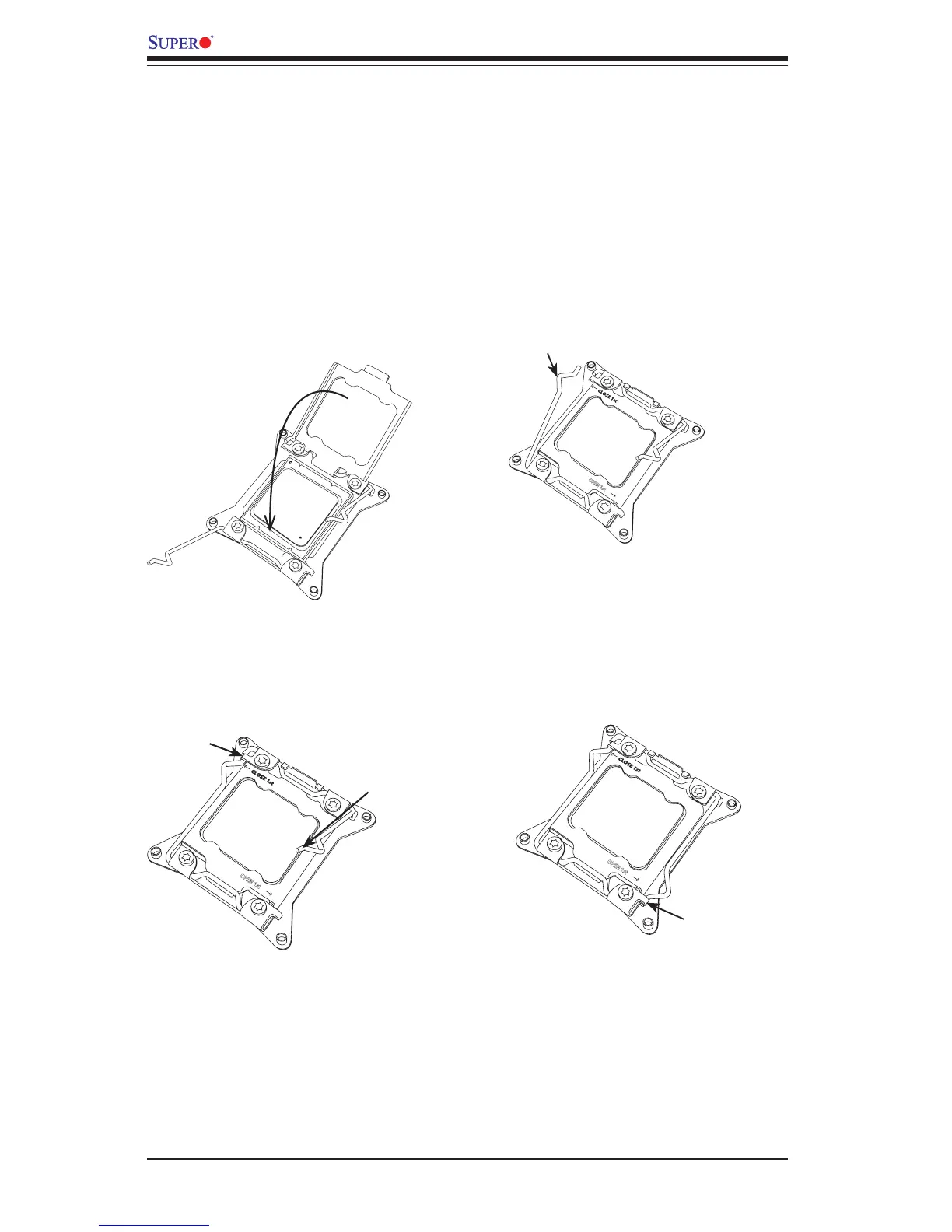

4. With the CPU inside the socket, inspect the four corners of the CPU to make
sure that the CPU is properly installed.
5. Close the load plate with the CPU inside the socket. Lock the lever labelled
'Close 1st' rst, then lock the lever labelled 'Open 1st' second. Using your
thumb gently push the load levers down to the lever locks.
OPEN 1st
Lever Lock
Lever Lock
Push down and
lock the lever
labelled 'Open
1st'.
Push down and lock the
lever labelled 'Close 1st'.
Gently close
the load plate.
1 2
3
4

Supermicro X9DRD-LF Specifications

General

IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Maximum UDIMM memory	64 GB
Number of DIMM slots	8
Supported RDIMM clock speeds	800, 1066, 1333, 1600 MHz
Supported DIMM module capacities	16GB, 1GB, 2GB, 32GB, 4GB, 8GB
PCI Express slots version	3.0
Memory voltage	1.35, 1.5 V
Maximum RDIMM memory	256 GB
Supported memory types	DDR3-SDRAM
BIOS type	AMI
ACPI version	4.0
BIOS memory size	128 Mbit
RAID levels	0, 1
Supported storage drive interfaces	SATA III
On-board graphics card model	Matrox G200eW
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	8 GT/s
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Processor manufacturer	Intel
Ethernet interface type	Gigabit Ethernet
Component for	Server
Motherboard chipset	Intel® C602
Sustainability certificates	RoHS

Weight and Dimensions

Depth	330 mm
Width	262 mm
