SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
2-2 Celeron PPGA Processor Installation
The Celeron PPGA processor resides in the 370-pin Zero Insertion Force (ZIF)
socket on the motherboard.
Perform the following steps to install the Celeron PPGA processor:
1. Unlatch and lift the lever on the side of the 370-pin ZIF socket.
1. Always turn system power OFF before installing or
removing any device.
2. Always observe static electricity precautions when
handling any components.
3. Inserting the processor chip incorrectly may damage the
chip.
4. The processor requires the use of a heat sink/cooling de-
vice.
!
2. Carefully handle the processor chip by its edges and avoid touching any
of the pins on the bottom of the chip.
3. The processor chip has a notch on one corner identifying pin 1. Pin 1
on the socket is located in the blank triangle area near the end of the
level (when latched). Align the notch (pin 1) on the chip with pin 1 on
the socket, and carefully place the processor in the socket. The
processor should slide easily into the socket.
4. Swing the lever to the down position and latch it to lock the processor in
place.
CAUTION

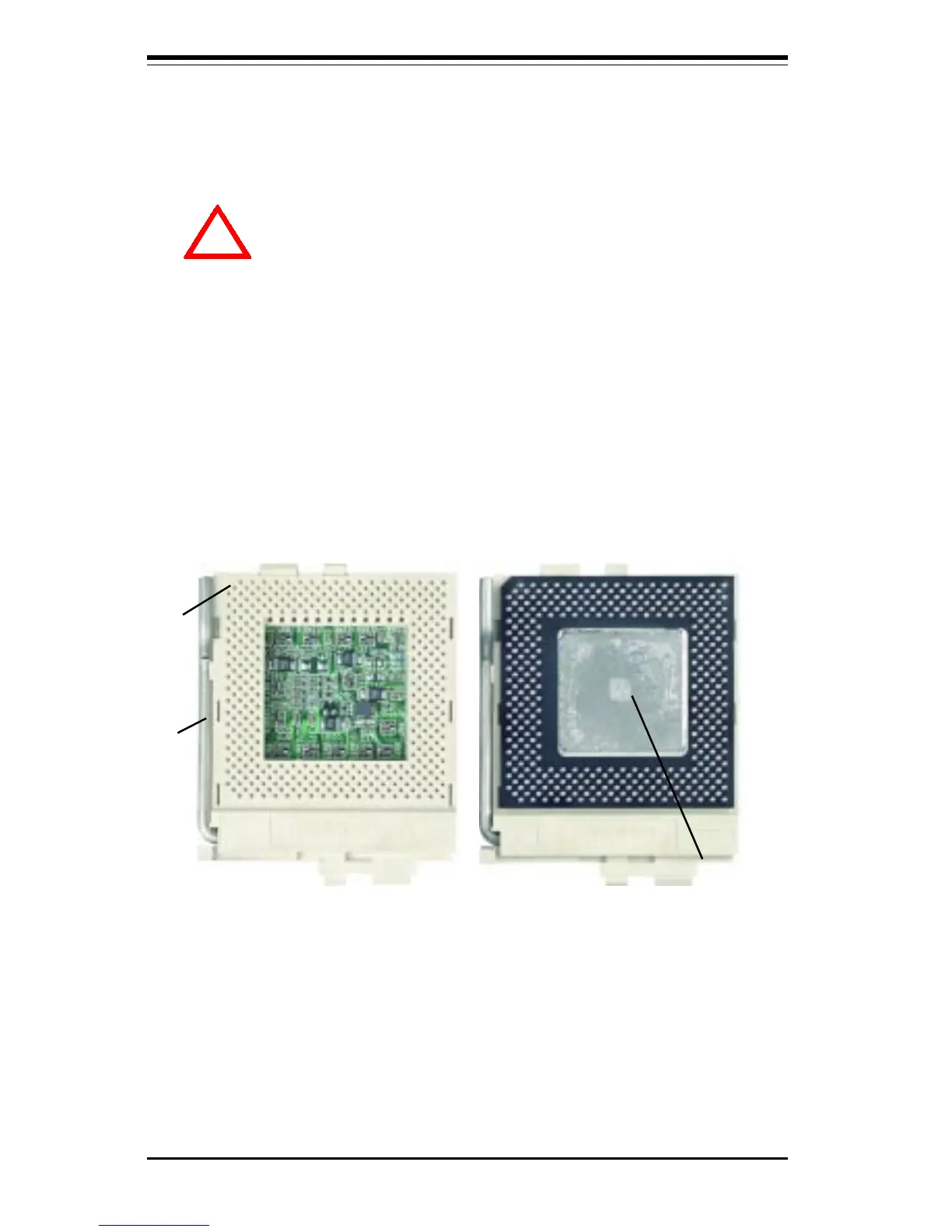

Pin 1
Lever
(latched)
Processor
(installed)
To Next Page
