SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
Top View of DIMM Socket

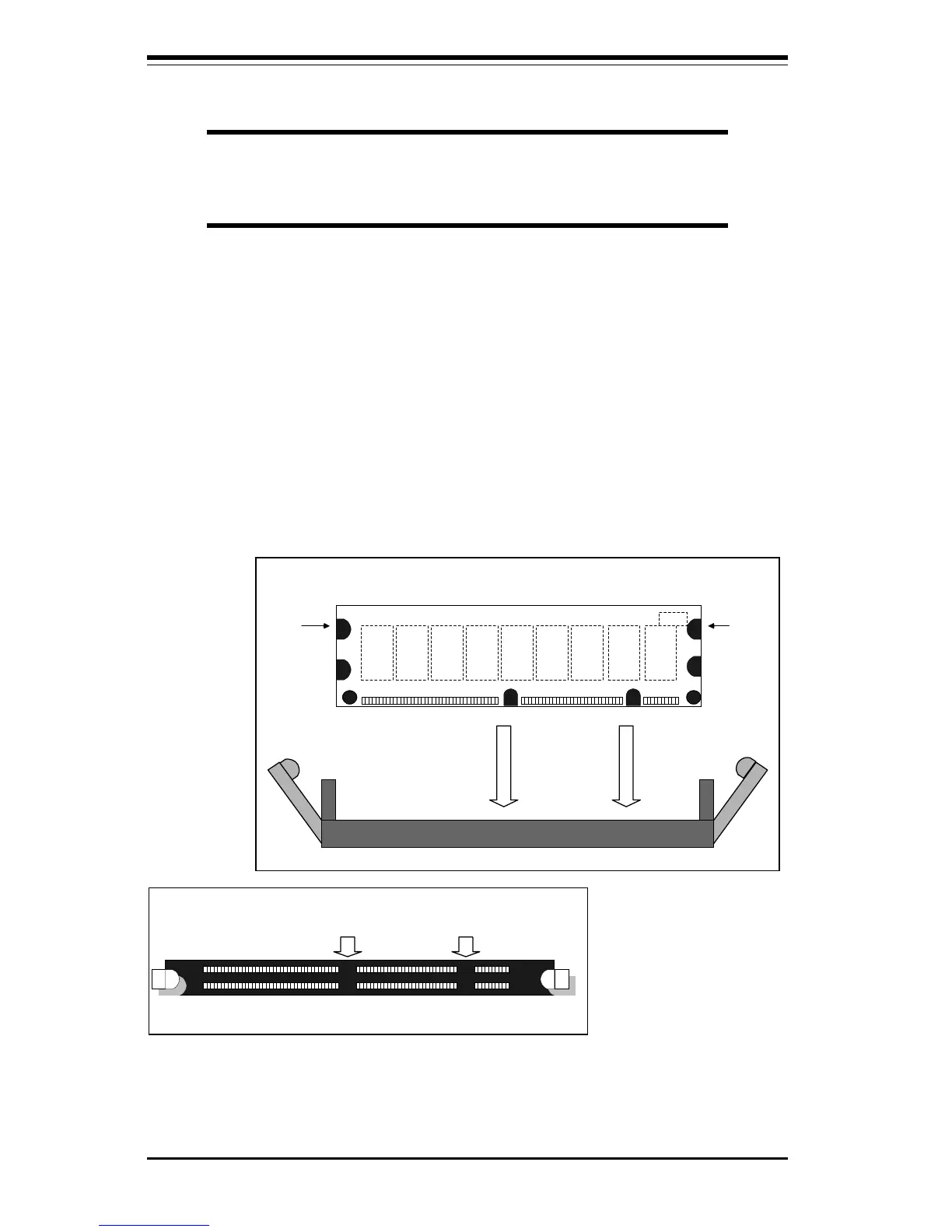

Figure 2-1. DIMM Installation
To Install:
Insert
vertically,
press down
until it snaps
into place.
Pay attention
to the two
notches.
To Remove:
Use your thumb to
gently push the
edge of the socket
and release the
module. Do this on
both sides for each
module.
Note: Notches
should align
with the
receptive points
on the socket
DIMM Socket
Side View of DIMM Installation into Socket
DIMM
PC100
Notches
PC100
Notches
2-6 Installing DIMMs
CAUTION
Exercise extreme care when installing or removing the DIMM
modules to prevent any possible damage.
1. Insert DIMMs in Bank 0 through Bank 3 as required for the desired system
memory.
2. Insert each DIMM module vertically into its socket. Pay attention to the
two notches along the bottom of the module to prevent inserting the
DIMM incorrectly.
3. Gently press the DIMM module until it snaps upright into place in the
socket.
4. For best results, install DIMMs starting from Bank 0 (the DIMM socket
farthest from the BX or LX chip).
