Supero X8DAi - Page 29

Chapter 2: Installation
2-9
X8DA3/i
Rev. 1.3
To Install: Insert module vertically and press down until it
snaps into place. Pay attention to the alignment notch at
the bottom.

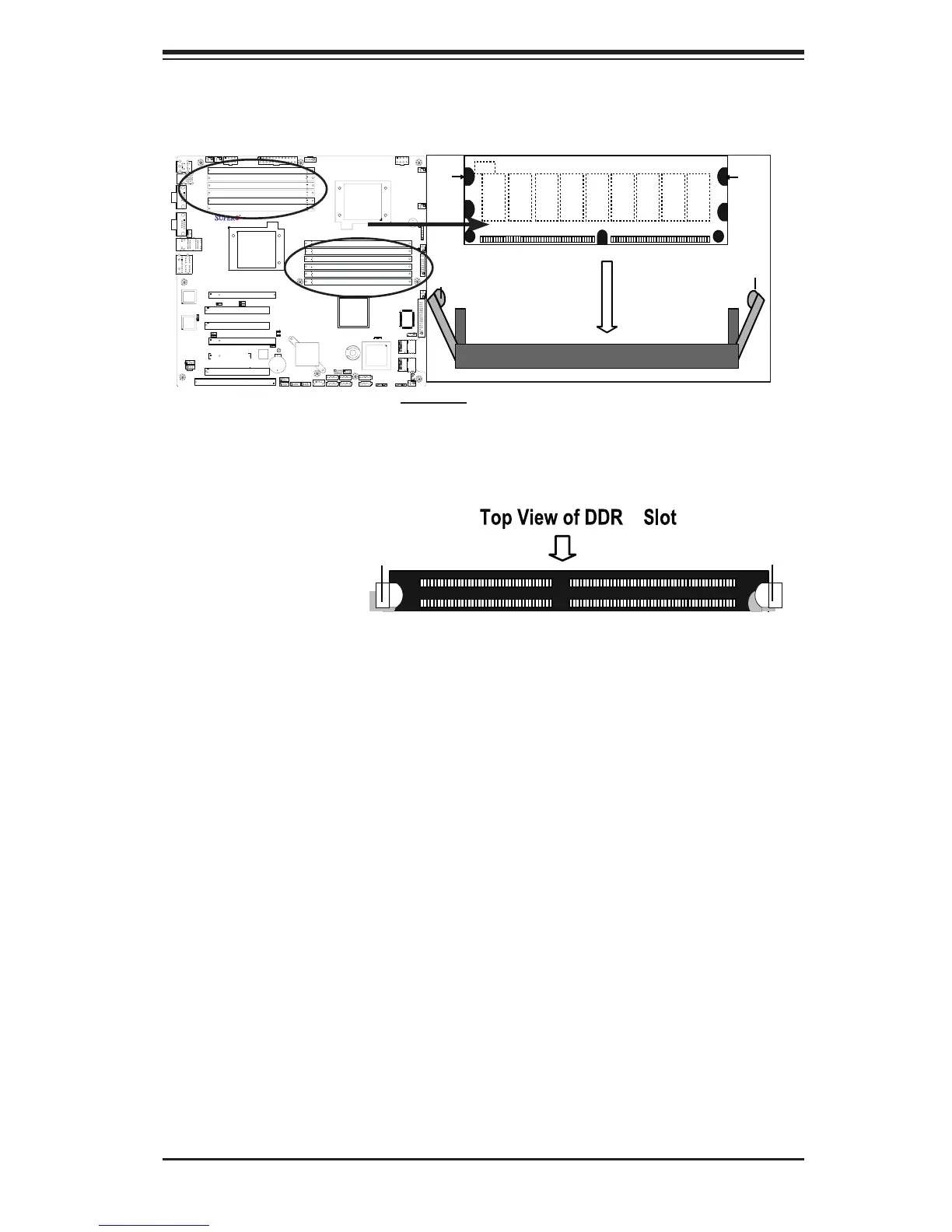

Installing and Removing DIMMs
To Remove:
Use your thumbs
to gently push
the release tabs
near both ends of
the module. This
should release it
from the slot.
Note: Notch
should align
with the
receptive point
on the slot
Notch
Release
Tab
Release
Tab
DIMM DDR3
Notch
3
Release Tab
Release Tab
