X8DA3/X8DAi User's Manual
2-5 Control Panel Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
the picture below for the colors and locations of the various I/O ports.
1. Back Panel Connectors/IO Ports

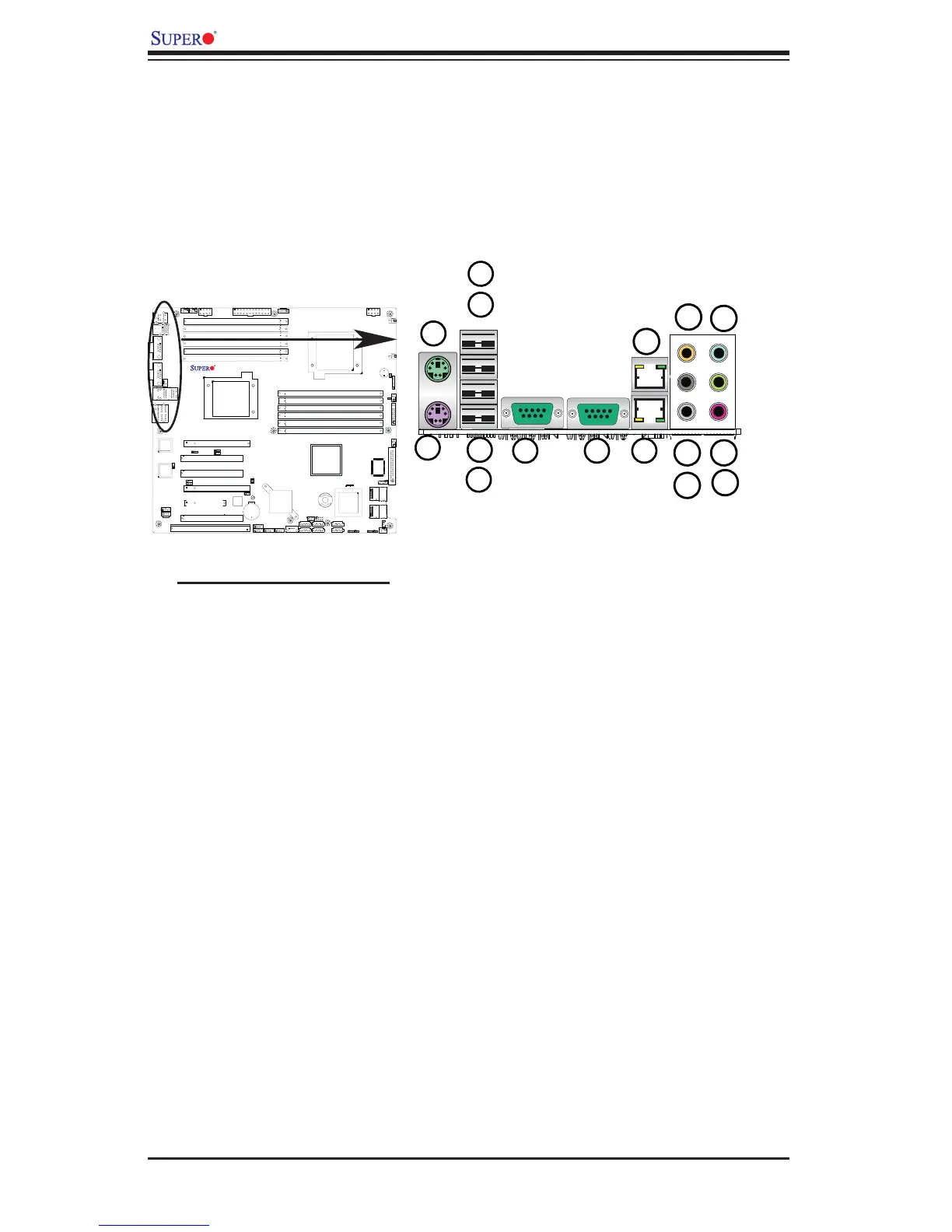

Back Panel I/O Port Locations and Defi nitions
Back Panel Connectors
Keyboard (Purple)1.
PS/2 Mouse (Green)2.
Back Panel USB Port 03.
Back Panel USB Port 14.
Back Panel USB Port 25.
Back Panel USB Port 36.
COM Port 1 (Turquoise)7.
COM Port 2 (Turquoise)8.
Gigabit LAN 19.
Gigabit LAN 210.
Side_Surround (Grey)11.
Back_Surround (Black)12.
CEN/LFE (Orange)13.
Microphone-In (Pink)14.
Front (Green)15.
Line-In (Blue)16.
(See Section 2-5 for details.)
1
2
3
4
5
6
7
8
X8DA3/i
Rev. 1.3
9
16
10
11
12
13
14
15
