3. INSTALLING AND SECURING THE ACTUATORS
A. Place the actuators onto the installed mounting clamps.
B. Attach the top mount to the mounting clamps using the provided hardware. Do not tighten as
forward/aft adjustments may be needed.
C. Measure from the telescoping end of the stationary actuator tube to the aft mounting clamp.
There should be no less than 4 inches between the end of the tube and the aft mounting clamp. (See
Figure 14.)
D. Repeat process for the other actuator.
E. Once both actuators are aligned, tighten the mounting clamp top brackets.
4"

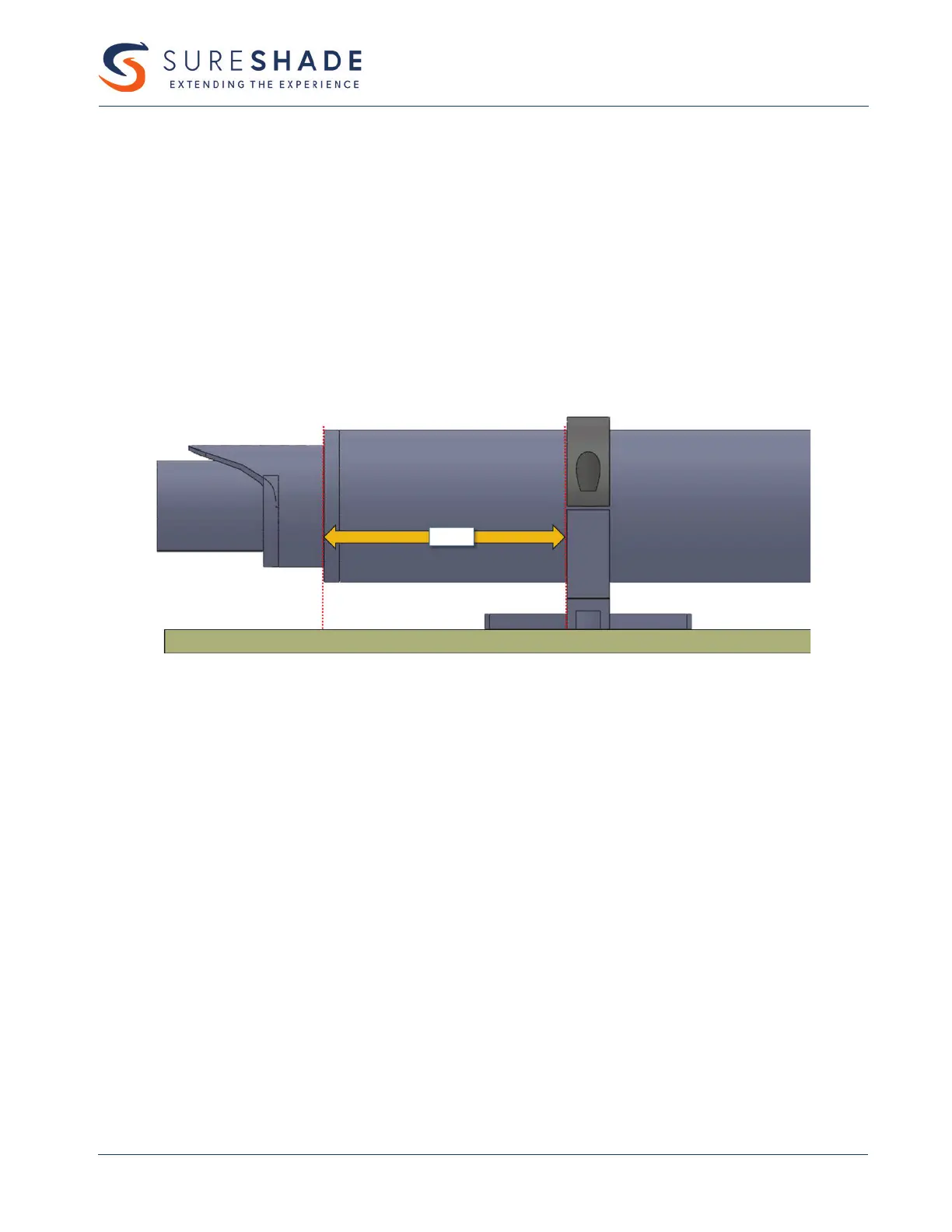

Figure 14 – Measuring Space Between Stationary Tube and Mounting Clamp
