INSTALLATION
19
© 2018 Rodan Enterprises LLC t/a SureShade®
ATF Installation Guide
2. SETTING THE MOUNTING CLAMPS
A. Disassemble the four mounting clamps by removing the two 1/4"-20 x 3/4" socket head screws in
each clamp and remove the top clamp. Set the screws and top clamps aside. (See Figure 5.)

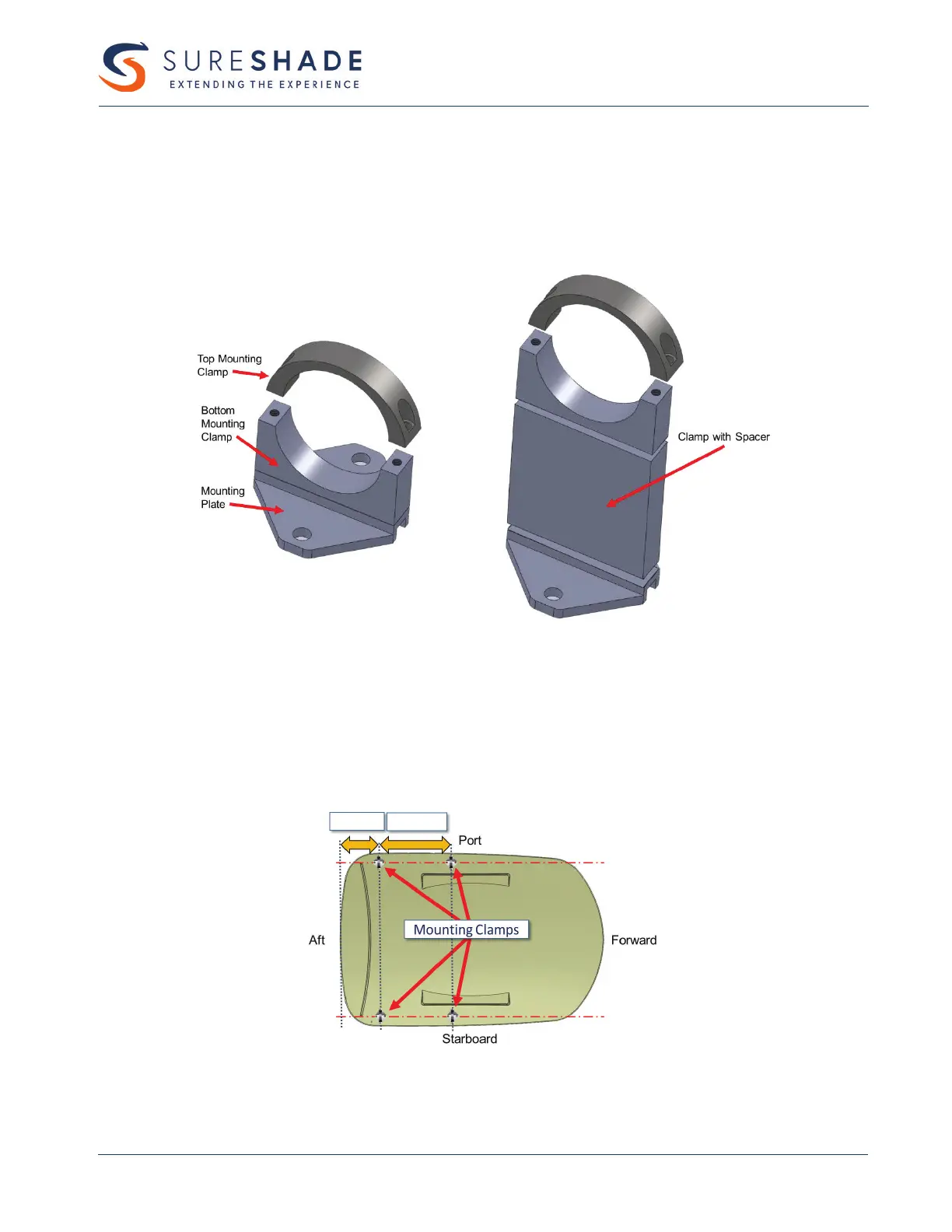

Figure 5 – Mounting Clamps (may include spacers depending on installation)
OTE: N Place mounting clamps 6 to 12 inches from aft of hardtop. Spacing between forward and aft mounting clamps
should be no less than 26 inches. 30 inches or more is preferred when applicable. (See Figure 6.)
OTE: N Place actuator in clamps to aid in aligning and spacing mounting clamps.
B. Place the four bottom mounting clamps along the pre-determined lines on the hardtop. (See Figure 6.)
6" – 12"
>= 26"
Figure 6 – Mounting Clamp Position
