5. SECURING THE CROSSBARS
A. Mid-Crossbar
1) Remove the two 1/4"-20 x 1/2" socket head cap screws from the ends of the mid-crossbar. (See
Figure 17.)
NOTICE
Do not remove the 10/32 set screws that connect the outer
and mid-crossbar sleeves to the crossbars.
Do not remove this screw
Remove and retain this screw
from each end before
installing onto actuator

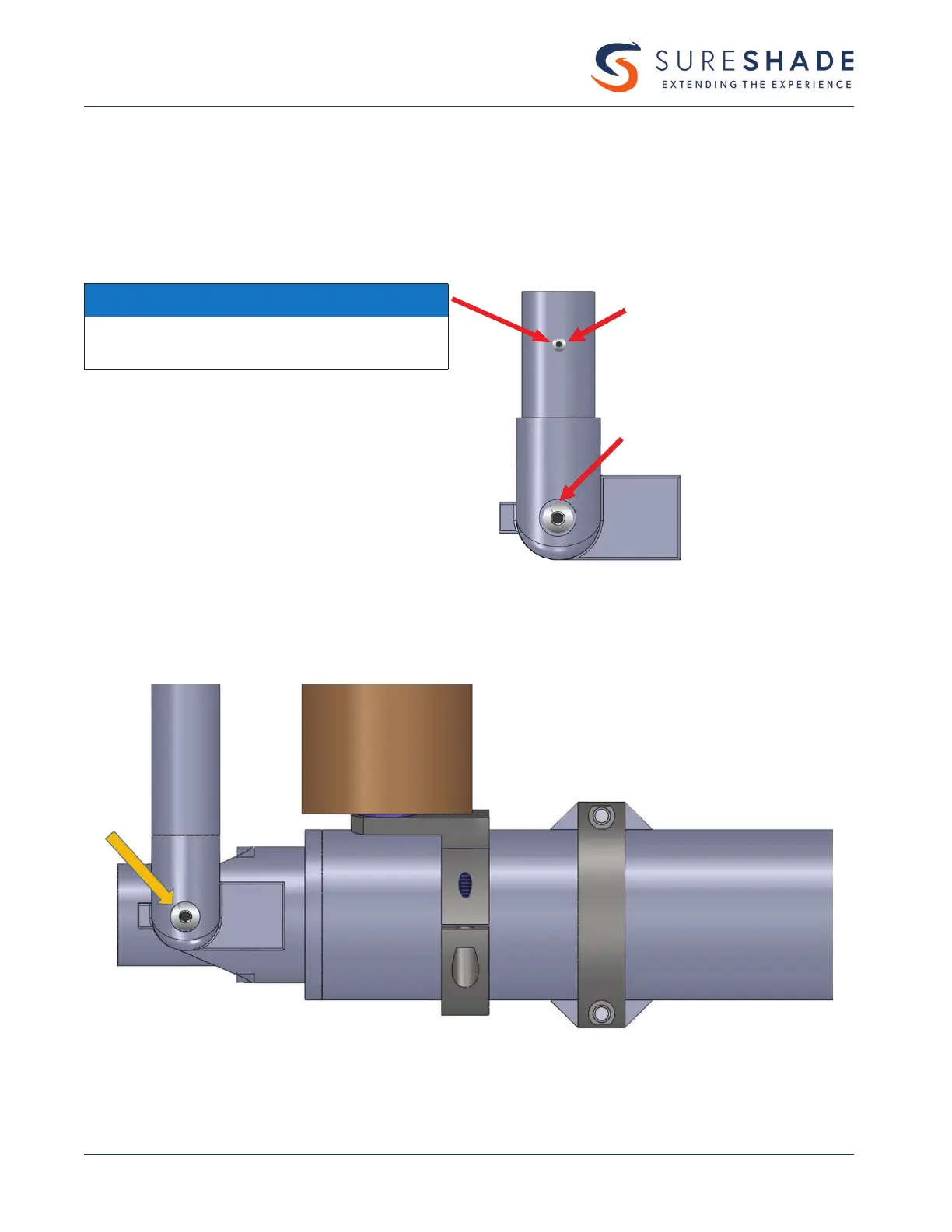

Figure 17 – Mid-Crossbar Screw Location
2) Attach the mid-crossbar onto actuator’s mid-crossbar tab and secure in place using
two 1/4"-20 x 1/2" socket head cap screws. (See Figure 18.)
Figure 18 – Installing the Mid-Crossbar
