INSTALLATION
27
© 2018 Rodan Enterprises LLC t/a SureShade®
ATF Installation Guide
D. Ensure proper spacing of actuator.
1) Measure the space between the stationary actuator tube and the mid-extending actuator tube. It
should measure approximately 1 inch. (See Figure 16.)
2) Measure the space between the mid-actuator tube and the small extending actuator tube. It
should measure approximately 2 inches. (See Figure 16.)
3) If measurements are o΍ , rotate the small extending actuator tube clockwise (to retract) or
counter-clockwise (to extend).

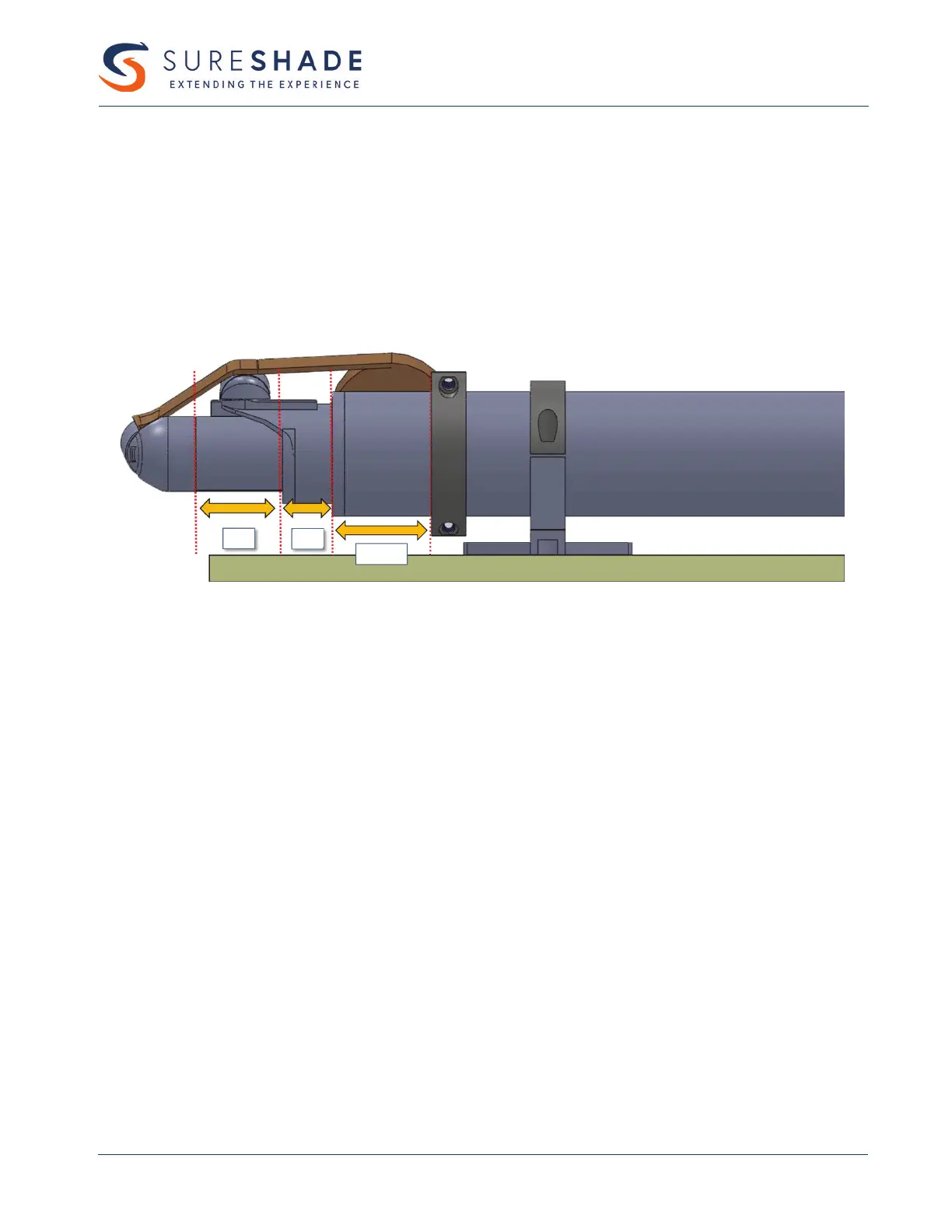

2" 1"
2" min.
Stationary
Actuator Tube
Mid-Extending
Actuator
Tube
Small
Extending
Actuator Tube
Figure 16 – Actuator Spacing
