9 Sensor installation
For bigger pipe diameters (>200 mm), the sensor can be installed with
only a 100 mm insertion depth as the alternative. This allows one sensor
to be used for all pipe sizes.
Remark: To enable the 100 mm installation method, use the S4C-FS
app or the service software.

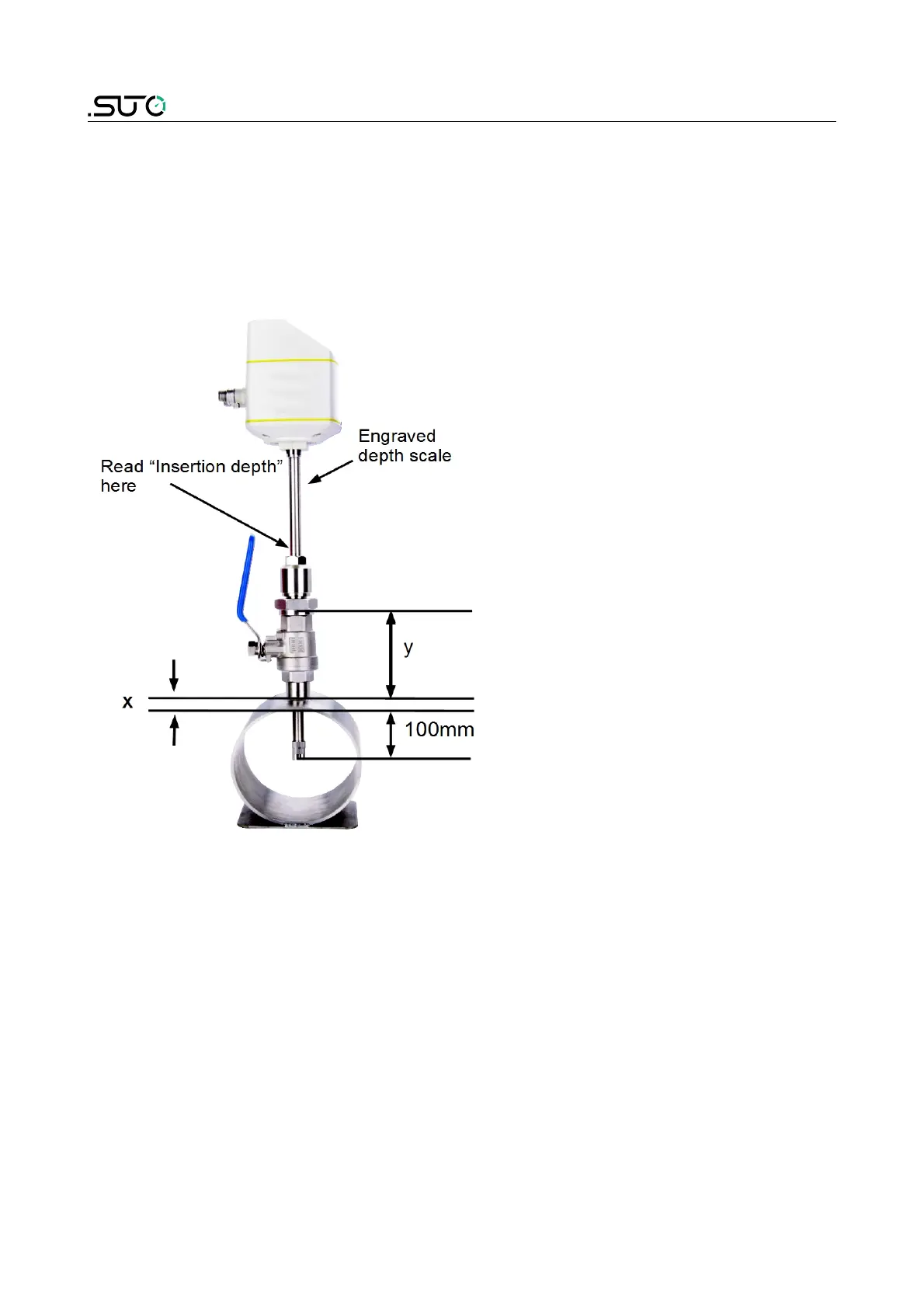

Insertion depth= x+ y+100
x is the wall thickness of pipe
y = length of the ball valve
Calculation example:
A 12”-diameter pipe with the wall
thickness of 9 mm and a 87 mm-
length ball valve.
x=9 mm ; y=87 mm
Insertion depth
= 9 mm+ 87 mm+100 mm= 196 mm
