10 Sensor signal outputs

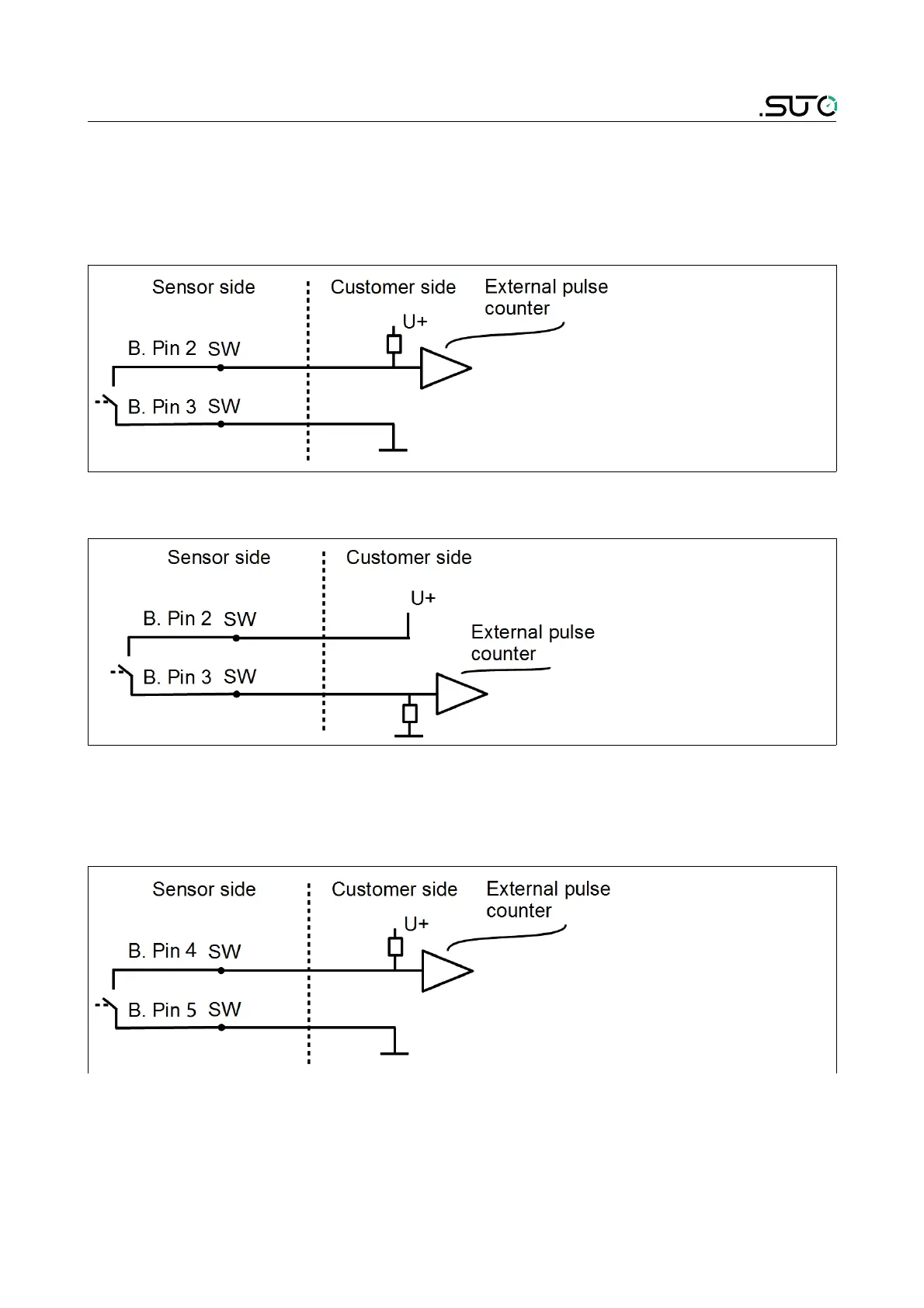

10.2.1 Pulse connection diagrams (A1410)
Using the isolated pulse switch (Connector B Pin 2 and 3)
Variant 1:
Variant 2:
10.2.2 Pulse connection diagrams (A1413)
Using the isolated pulse switch (Connector B Pin 4and 5)
Variant 1:
S401 27
