10.1 Analog output
The sensor has an analog output of 4 ... 20 mA. This output can be
scaled to match a desired measuring range. Standard scaling is from 0
to max flow.
The corresponding flow rates in different pipe sizes can be calculated
using the free "Flow range calculator" tool available in http://www.suto-
itec.com. For more information, see section 6.5.
10.2 Pulse output

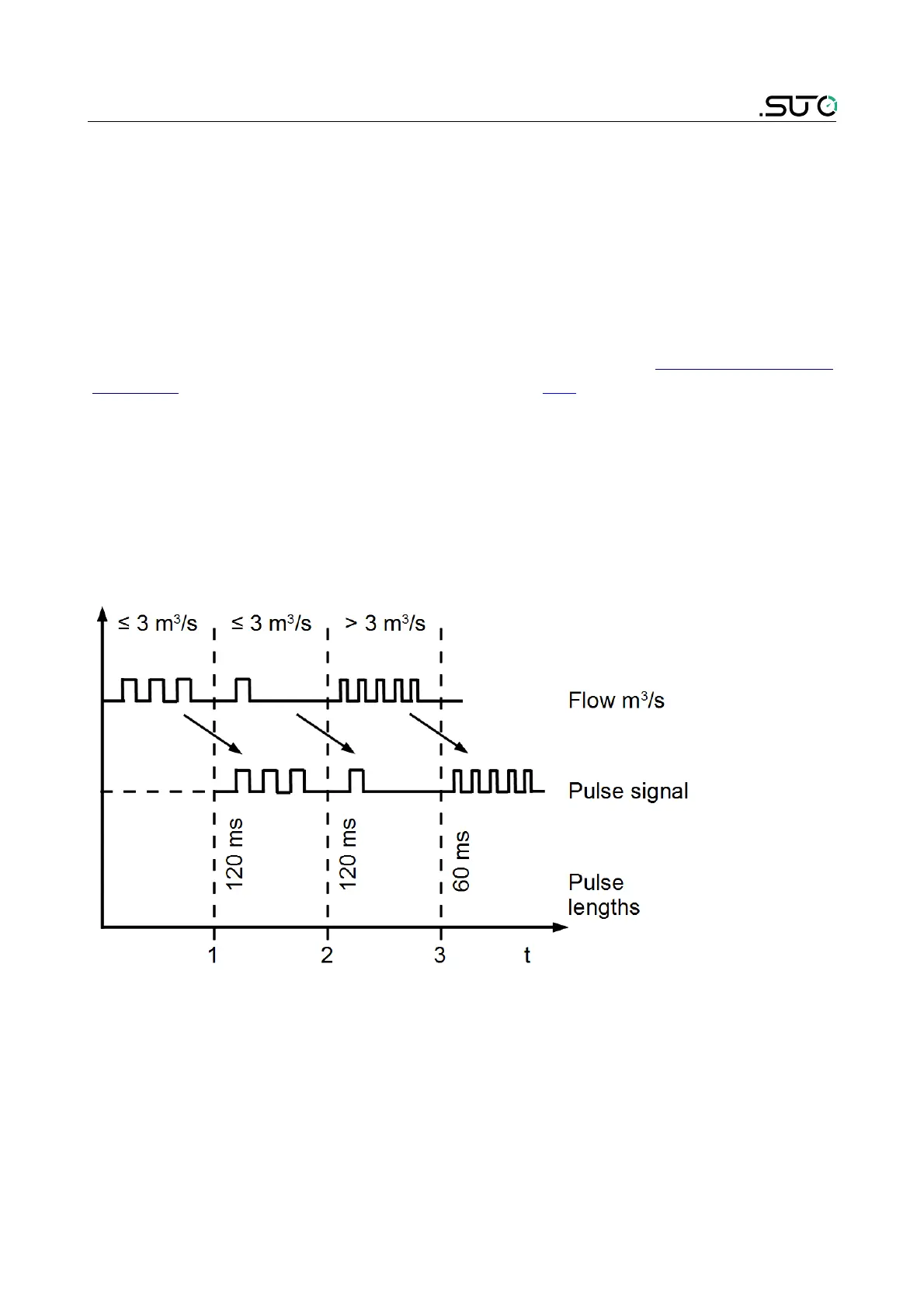

The sensor outputs one pulse per a consumption unit. This pulse output
can be connected to an external pulse counter to count the total
consumption. The number of m
3
per second are summed up and
indicated after one second. Pulse length depends on flow rate.
