4-100 FI SYSTEM DIAGNOSIS

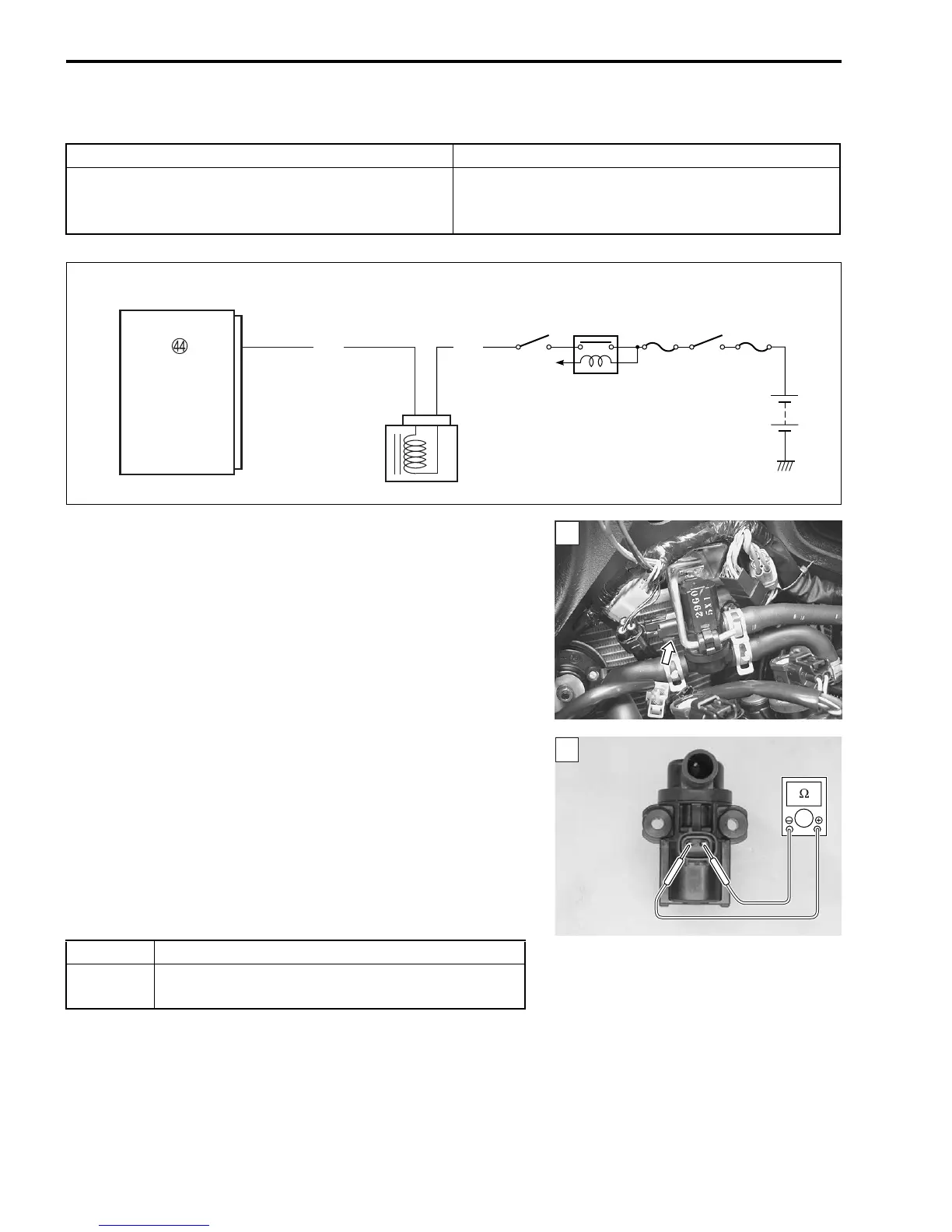

“C49” (P1656) PAIR CONTROL SOLENOID VALVE CIRCUIT MALFUNCTION
INSPECTION
Step 1
1) Turn the ignition switch OFF.
2) Remove the air cleaner box. (5-14)
3) Check the PAIR control solenoid valve coupler for loose or
poor contacts.
If OK, then measure the PAIR control solenoid valve resis-
tance.
4) Remove the PAIR control solenoid valve. (11-7)
5) Measure the resistance between terminals.

PAIR valve resistance: 18 – 22 Ω at 20 – 30 °C (68 – 86 °F)
(Terminal – Terminal)
 09900-25008: Multi-circuit tester set
 Tester knob indication: Resistance (Ω)
Is the resistance OK?
6) After repairing the trouble, clear the DTC using SDS tool.
(4-27)
DETECTED CONDITION POSSIBLE CAUSE
PAIR control solenoid valve voltage is not input to
ECM.
• PAIR control solenoid valve circuit open or short
• PAIR control solenoid valve malfunction
• ECM malfunction
ECM
Side-stand
relay
Ignition
switch
Engine stop
switch
O/W
PAIR control
solenoid valve
W/G
PAI R
To side-stand
switch
1
YES Go to Step 2.
NO
Replace the PAIR control solenoid valve with a
new one.
1

Suzuki 2006 gsxr 600 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Fuel Tank Capacity	17.0 L (4.5 US gal)
Overall Length	2, 040 mm (80.3 in)
Overall Width	715 mm (28.1 in)
Wheelbase	1, 400 mm (55.1 in)
Seat Height	810 mm (31.9 in)
Ground Clearance	130 mm (5.1 in)
Rear Suspension	Link type, oil damped
Front Tire	120/70ZR17M/C (58W)
Rear Tire	180/55ZR17M/C (73W)
