FUEL SYSTEM AND THROTTLE BODY 5-23

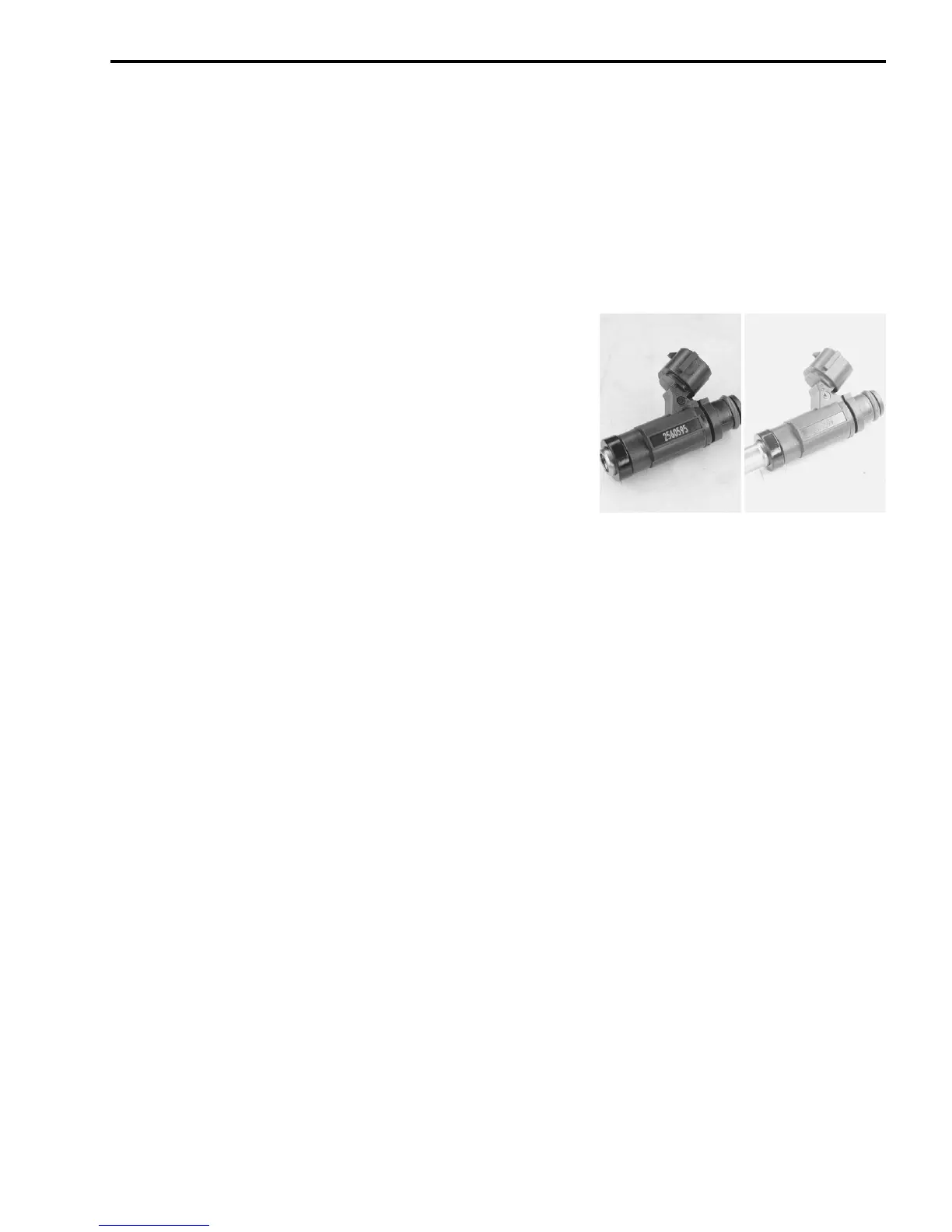

FUEL INJECTOR REMOVAL
• Remove the air cleaner box. (5-14)
• With battery negative cable disconnected, disconnect the
injector couplers.
• Remove the fuel delivery pipe assemblies. (5-16)
• Remove the primary and secondary fuel injectors #1, #2, #3
and #4. (5-16)
FUEL INJECTOR INSPECTION
Check fuel injector filter for evidence of dirt and contamination. If
present, clean and check for presence of dirt in the fuel lines and
fuel tank.
The fuel injector can be checked without removing it from the
throttle body.
Refer to page 4-77 to -82 for details.
FUEL INJECTOR INSTALLATION
• Apply thin coat of the engine oil to new injector cushion seal
and O-rings.
• Install the injector by pushing it straight to the throttle body.
Never turn the injector while pushing it. (5-20)

Suzuki 2006 gsxr 600 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Fuel Tank Capacity	17.0 L (4.5 US gal)
Overall Length	2, 040 mm (80.3 in)
Overall Width	715 mm (28.1 in)
Wheelbase	1, 400 mm (55.1 in)
Seat Height	810 mm (31.9 in)
Ground Clearance	130 mm (5.1 in)
Rear Suspension	Link type, oil damped
Front Tire	120/70ZR17M/C (58W)
Rear Tire	180/55ZR17M/C (73W)
