3-30 ENGINE
NOTE:
Do not rotate the camshaft with the plastigauge in place.

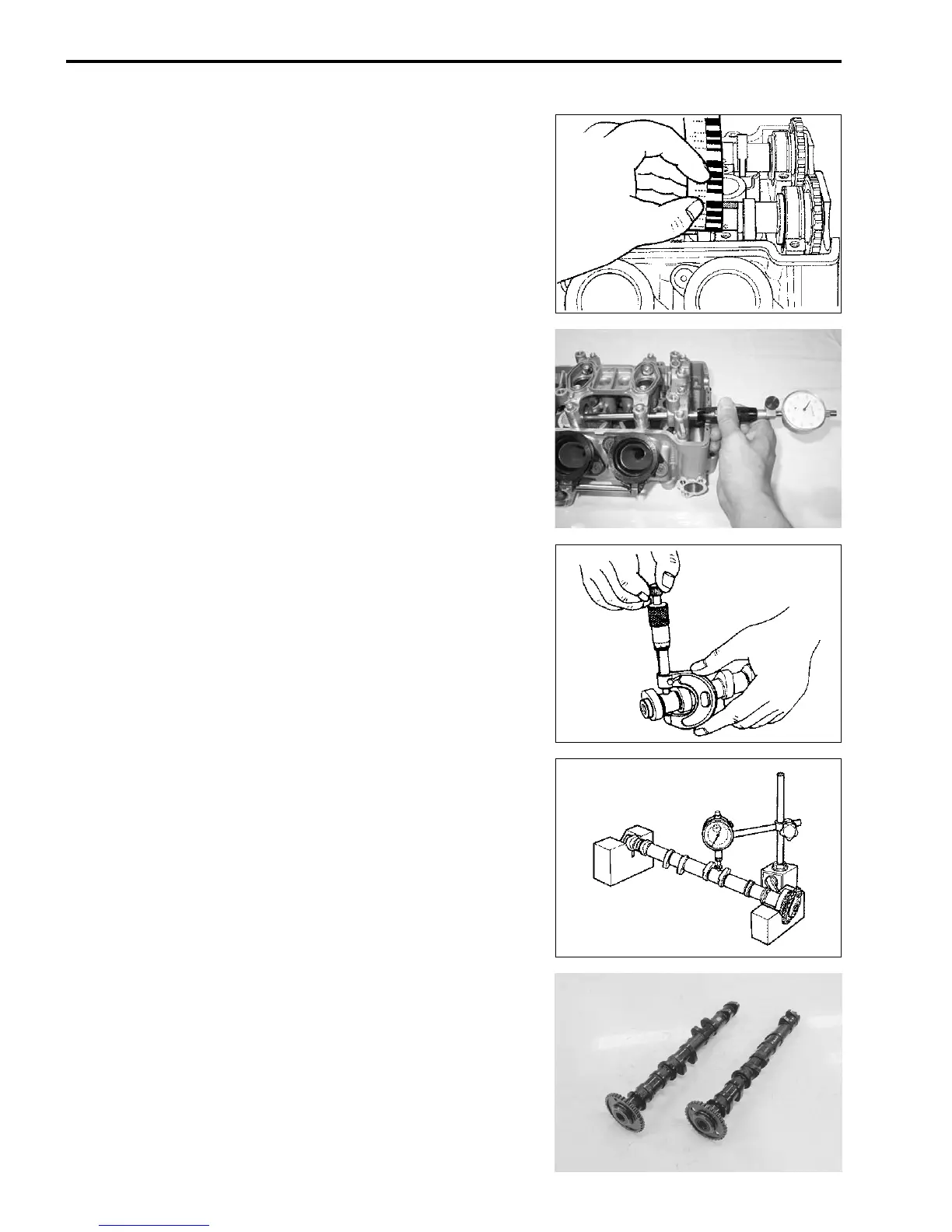

• Remove the camshaft holders, and read the width of the com-
pressed plastigauge with envelope scale.
• This measurement should be taken at the widest part.
• If the camshaft journal oil clearance measured exceeds the
limit, measure the inside diameter of the camshaft journal
holder and outside diameter of the camshaft journal.
• Replace the camshaft or the cylinder head depending upon
which one exceeds the specification.
 Camshaft journal holder I.D.:
Standard: (IN. & EX.):
24.012 – 24.025 mm (0.9454 – 0.9459 in)
 09900-20602: Dial gauge (1/1000, 1 mm)
09900-22403: Small bore gauge (18 – 35 mm)
 Camshaft journal O.D.:
Standard (IN. & EX.):
23.959 – 23.980 mm (0.9433 – 0.9441 in)
 09900-20205: Micrometer (0 – 25 mm)
CAMSHAFT RUNOUT
• Measure the runout using the dial gauge.
• Replace the camshaft if the runout exceeds the limit.
 Camshaft runout:
Service Limit (IN. & EX.): 0.10 mm (0.004 in)
 09900-20607: Dial gauge (1/100 mm)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
CAM SPROCKET
• Inspect the sprocket teeth for wear.
• If they are worn, replace the sprocket/camshaft assembly and
cam chain as a set.

Suzuki 2006 gsxr 600 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Fuel Tank Capacity	17.0 L (4.5 US gal)
Overall Length	2, 040 mm (80.3 in)
Overall Width	715 mm (28.1 in)
Wheelbase	1, 400 mm (55.1 in)
Seat Height	810 mm (31.9 in)
Ground Clearance	130 mm (5.1 in)
Rear Suspension	Link type, oil damped
Front Tire	120/70ZR17M/C (58W)
Rear Tire	180/55ZR17M/C (73W)
